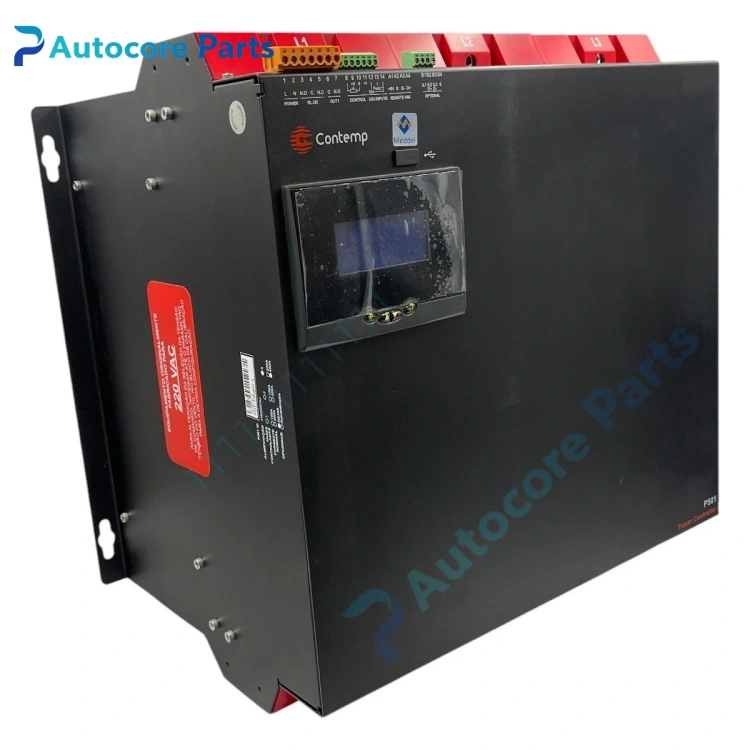

Contemp P501-330400A-S Power Controller

Feature & Principle

It is Contemp P501 series thyristor power controller. It uses anti-parallel SCR as power switching device, receives 4-20mA / 0-10V analog control signal from PLC or temperature controller, adjusts conduction angle to change output power. It supports phase angle and zero-crossing triggering modes, suitable for resistive heating loads. It integrates current detection, temperature monitoring and fault alarm output, can quickly cut off output when abnormal. Widely used in industrial furnace, plastic extrusion, coating oven, thermal forming heating control.

Specifications

Model: P501-330400A-S Brand: Contemp Rated current: 400 A Control mode: Phase angle / zero cross Control signal: 4-20mA, 0-10V Cooling: Air cooling Protection: Overcurrent, overtemperature, SCR short circuit, load open alarm Auxiliary output: Relay fault alarm contact Application: Electric furnace, heating barrel, infrared heating, resistive load power regulation Certification: CE

Components & Diagnostics

SCR thyristor module, trigger control board, current transformer, temperature sensor, cooling fan, power terminal. Common faults: SCR breakdown, fan damage, control signal loss, overheating trip, alarm output abnormal.

Product BriefP501-330400A-S SCR power controller, Contemp industrial heating power regulation spare widely used for oven and furnace control cabinet overhaul and replacement.
