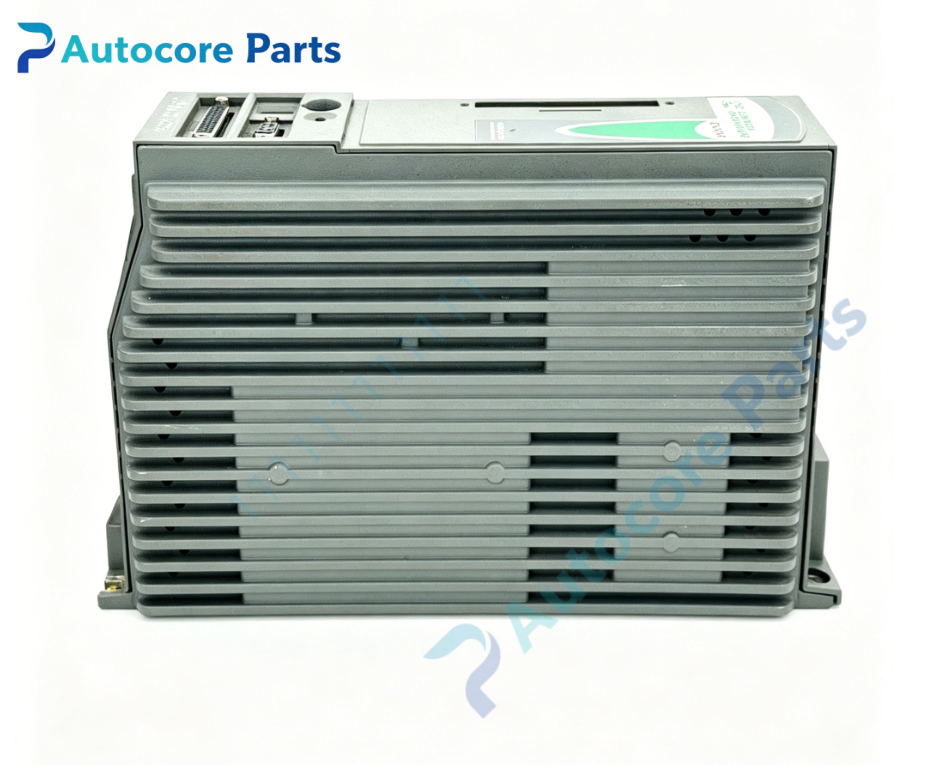

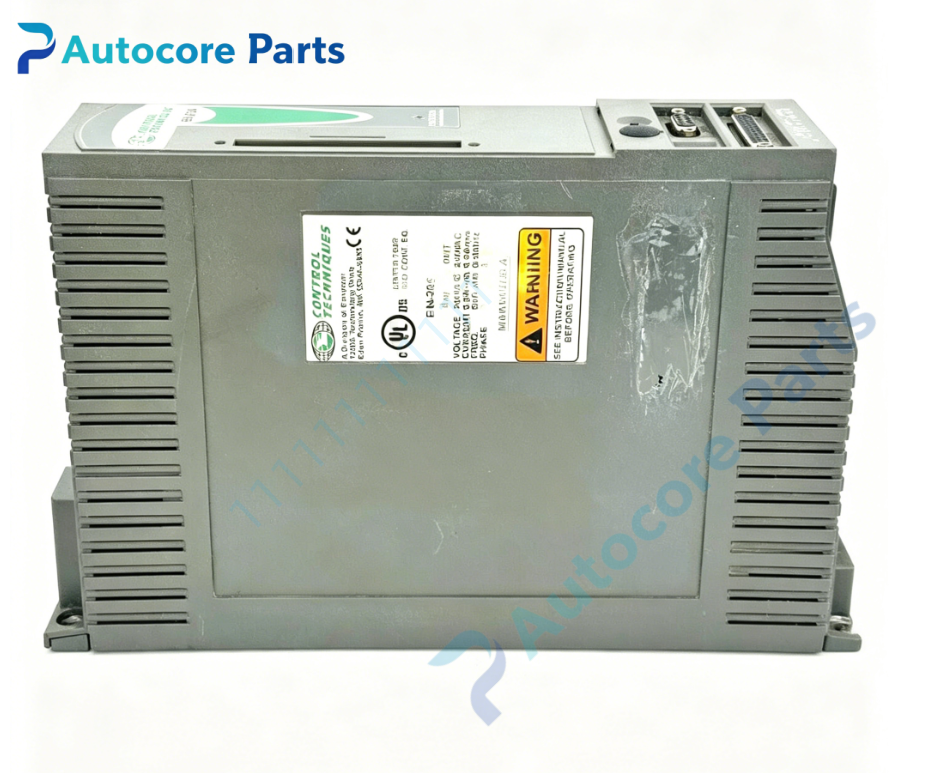

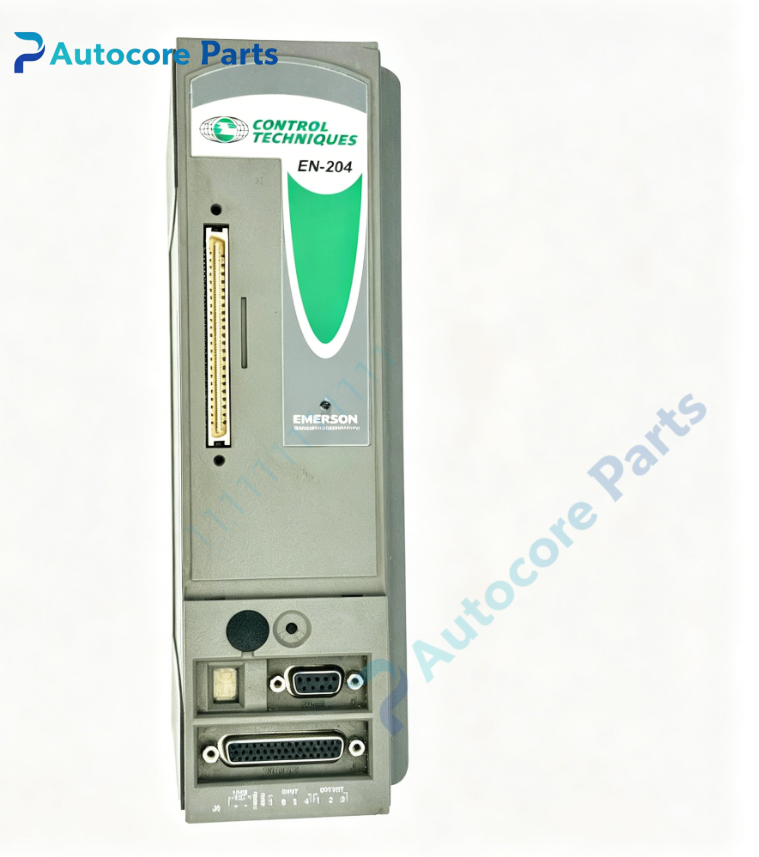

Control Techniques EN-204-00-000 EN Servo Drive Unit

Module Feature

EN-204-00-000 belongs to EN series fully digital AC servo drive manufactured by Control Techniques. It supports seven selectable operation modes including speed, torque and closed-loop position control. Accept snap-on FM function modules for indexing, motion programming and fieldbus communication such as Profibus, DeviceNet and Ethernet. Built-in diagnostic display with time-stamped fault log, integrated dynamic braking transistor. Widely applied in packaging machinery, material handling, cutting equipment and precision multi-axis automation systems.

Working principle

AC input power is rectified to DC bus. IGBT power stage outputs three-phase variable voltage and frequency AC to drive permanent magnet servo motor. Encoder feedback signal is received by drive to realize closed-loop torque, speed and position regulation. Dynamic braking circuit consumes regenerative energy during motor deceleration. Optional FM expansion module adds advanced motion sequence and bus communication functions.

Onboard components

Input rectifier bridge,IGBT power module,main digital control PCB,LCD diagnostic display,dynamic braking transistor,power terminal block,encoder connector,motor power connector,FM function module expansion slot.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,encoder signal loss,FM module communication fault detection.

Programming software

PowerTools FM software,supports motor parameter auto-tune,real-time motion monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:EN-204-00-000 Brand:Control Techniques Device type:EN Series Fully Digital AC Servo Drive Input voltage:240VAC single/three phase Input frequency:50/60Hz Continuous output current:4.5A Peak output current:9A Output frequency:0~900Hz Control mode:Closed loop position / speed / torque control Expansion:FM series snap-on function module Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal finned heat sink housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Control Techniques EN series digital servo amplifier for high precision single and multi-axis motion control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect AC mains to power terminals,motor cable and encoder cable to corresponding ports.Complete motor auto-tune before commissioning.

Interface

AC power input connector,motor power connector,encoder feedback connector,FM expansion module slot,digital I/O terminal.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or insufficient cabinet ventilation. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing. FM module communication failure:poor contact of expansion module.

Product Brief

Control Techniques EN-204-00-000 EN series fully digital AC servo drive,240VAC single/three phase input,4.5A continuous output current,supports speed,torque and position closed-loop control,compatible with FM function expansion modules for high precision industrial automation motion applications.
