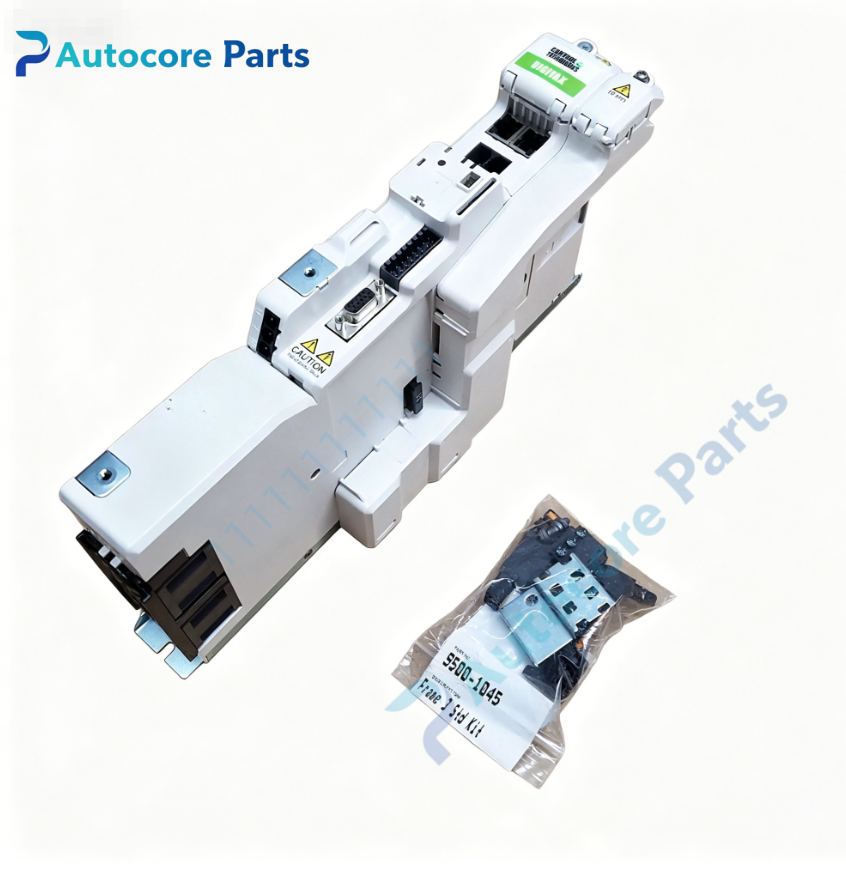

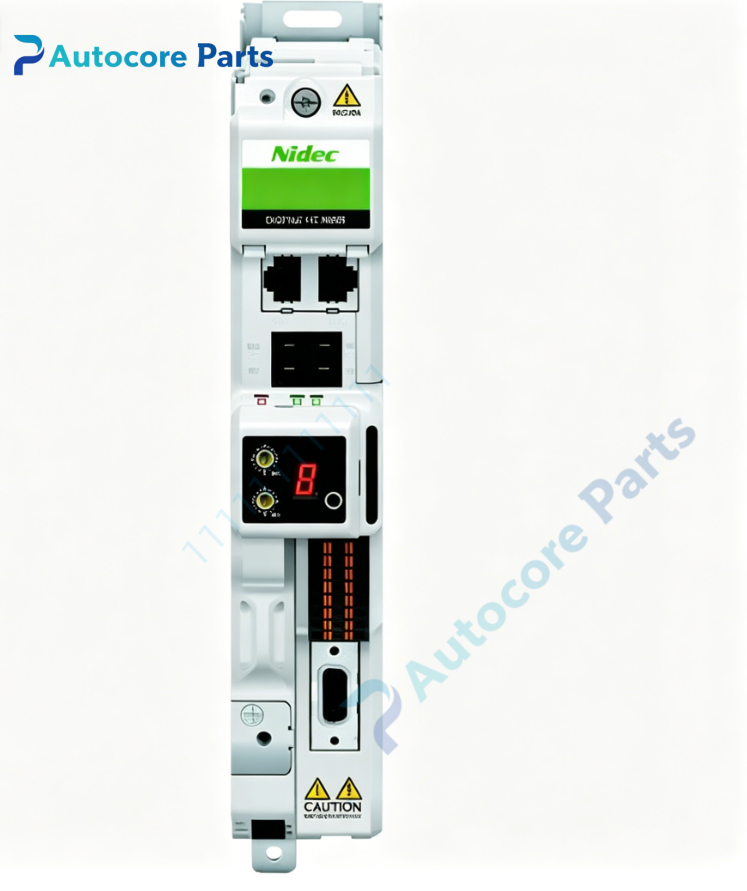

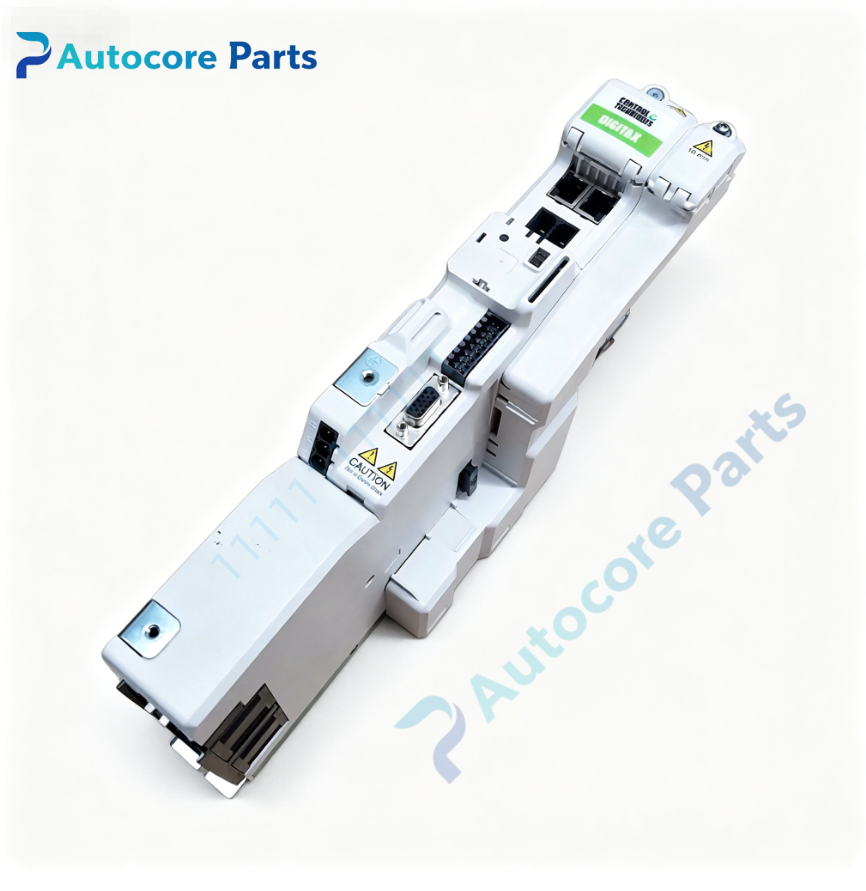

Control Techniques M751-03400160A 10101AB110 Unidrive M700 Servo Drive Unit

Module Feature

M751-03400160A 10101AB110 belongs to Unidrive M700 series high-performance universal AC drive manufactured by Control Techniques. It supports V/F,open-loop vector,closed-loop flux vector and high dynamic servo control,compatible with induction motors and Unimotor FM permanent magnet servo motors. Integrated powerful motion controller,capable of multi-axis positioning,electronic cam and gearing functions. Multiple digital and analog I/O terminals,expansion slots for encoder feedback and various fieldbus modules. Widely used in printing machinery,cutting equipment,packaging lines and high-precision machine tools.

Working principle

Three-phase 50/60Hz AC power is rectified to DC bus. IGBT power module outputs adjustable voltage and frequency AC. The drive executes motion tasks according to internal program or fieldbus command,realizing high-precision speed,torque and position closed-loop control via encoder feedback. Built-in dynamic braking circuit consumes regenerative energy during rapid deceleration.

Onboard components

Input rectifier bridge,IGBT power stage,main control motion PCB,LED status panel,dynamic braking transistor,heat sink,power terminal block,control I/O terminal block,option module slots.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss detection.

Programming software

Unidrive M Connect software,supports motor auto-tune,real-time motion monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:M751-03400160A 10101AB110 Brand:Control Techniques Device type:Unidrive M700 High Performance Universal AC Drive Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Control mode:V/F,open-loop vector,closed-loop vector,servo,multi-axis motion Feedback:Incremental,SinCos,SSI,resolver via option modules Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive M700 high performance drive for sophisticated multi-axis motion control applications

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation clearance.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and motion parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slots,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware failure. Under voltage:input mains fluctuation or phase missing.

Product Brief

Control Techniques M751-03400160A (10101AB110) Unidrive M700 high-performance AC drive,380-480V three phase input,with integrated motion controller,supports multi-axis positioning and servo control for high-end industrial automation equipment.
