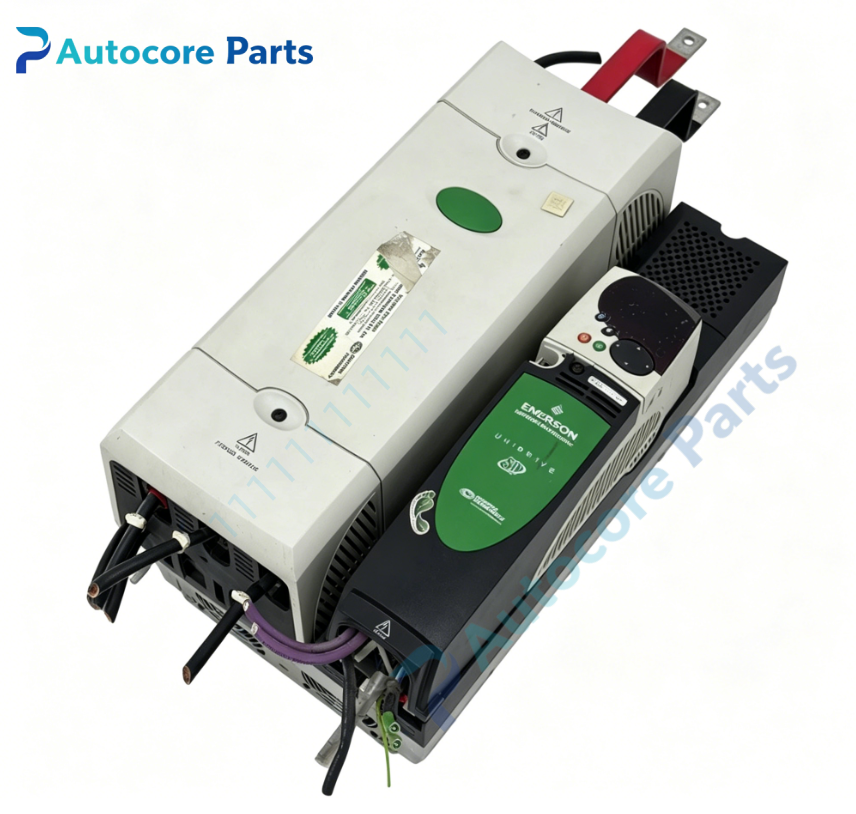

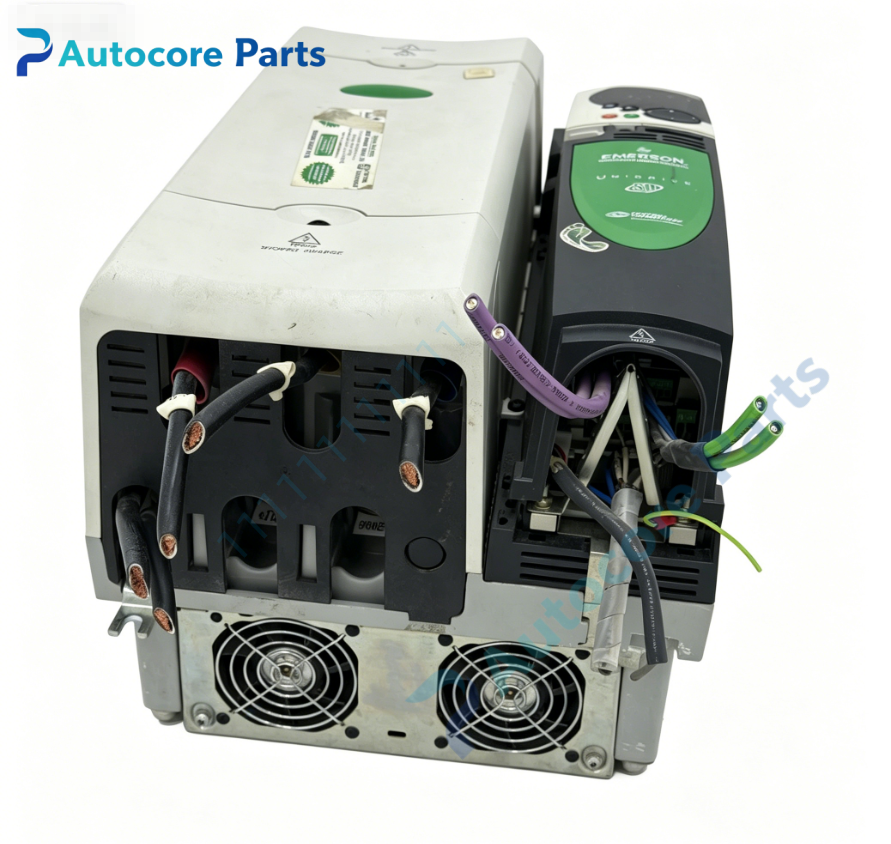

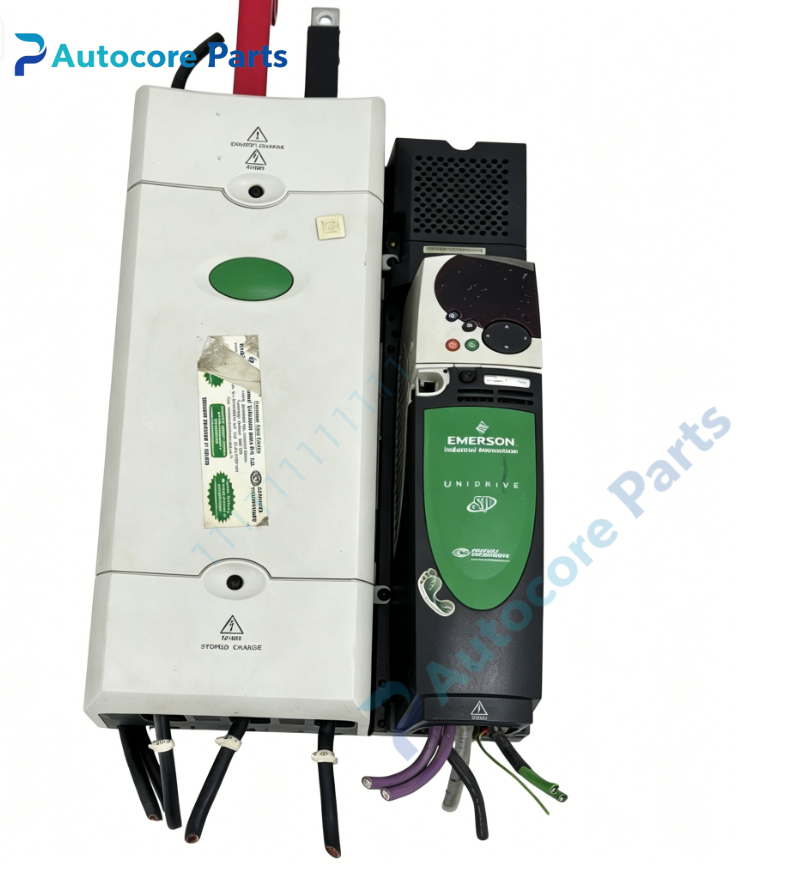

Control Techniques Unidrive ES4402 Elevator Drive Unit

Module Feature

ES4402 belongs to Unidrive ES series elevator dedicated high-performance AC drive manufactured by Control Techniques. It adopts dedicated elevator control algorithm, supports open-loop vector and closed-loop flux vector control, suitable for asynchronous elevator traction motors. Integrated safety torque off (STO) safety function. Equipped with multi-channel digital and analog I/O terminals, optional expansion slots for encoder feedback and fieldbus communication modules. Optimized for smooth start-stop, leveling accuracy and ride comfort, widely applied in passenger elevators, freight elevators and vertical lifting equipment.

Working principle

Three-phase 50/60Hz AC mains power is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency AC to control traction motor speed and torque. The drive receives elevator controller command signals, performs high-precision speed profile control; encoder feedback realizes closed-loop speed and position regulation. Built-in dynamic braking circuit absorbs regenerative energy during car deceleration.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,LED status panel,dynamic braking transistor,heat sink,power terminal block,control I/O terminal block,encoder interface,STO safety circuit.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss,safety circuit fault detection.

Programming software

Unidrive Tools software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:ES4402 Brand:Control Techniques Device type:Unidrive ES Elevator Dedicated AC Drive Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Control mode:Open-loop vector,closed-loop flux vector Feedback:Incremental,SinCos,SSI,resolver via option modules Safety function:Built-in STO (Safe Torque Off) Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive ES dedicated drive for elevator traction control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation clearance.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and elevator parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slots,keypad port.

Diagnostic

Encoder fault:loose wiring or encoder hardware damage. Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or phase missing. Rough elevator riding:incorrect speed profile or poor encoder wiring.

Product Brief

Control Techniques Unidrive ES4402 elevator dedicated AC variable frequency drive,380-480V three phase input,supports closed-loop vector control with built-in STO safety function,specially designed for elevator traction applications.
