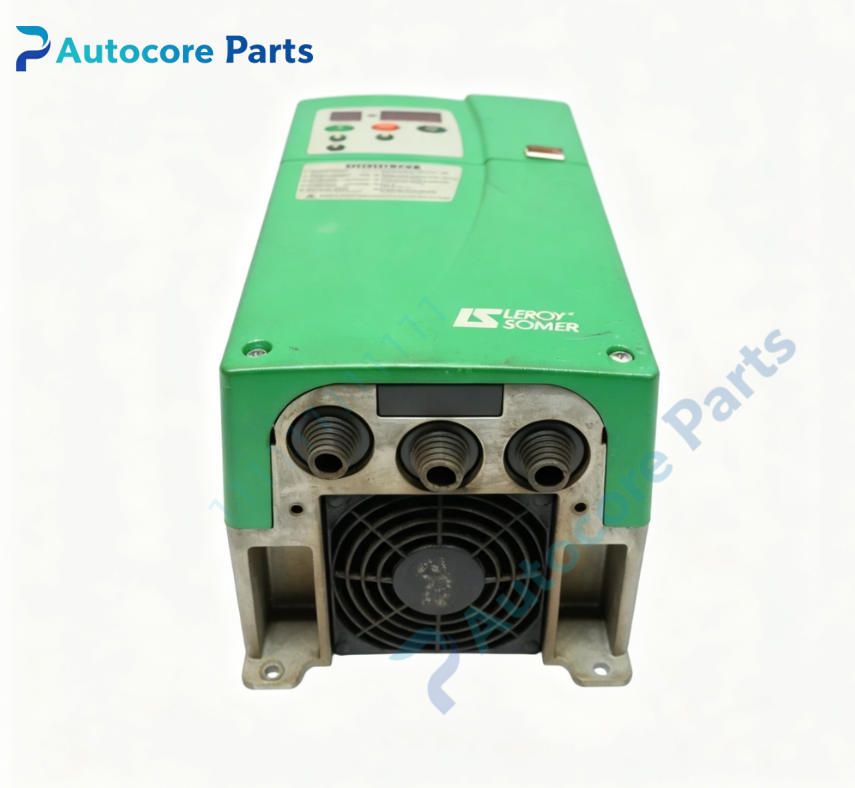

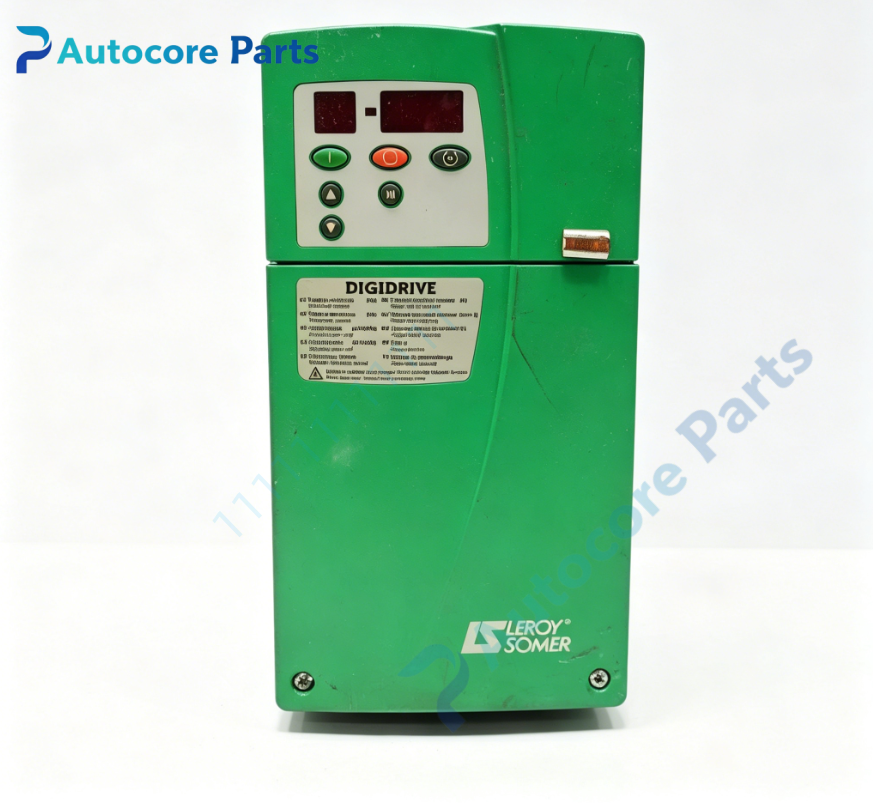

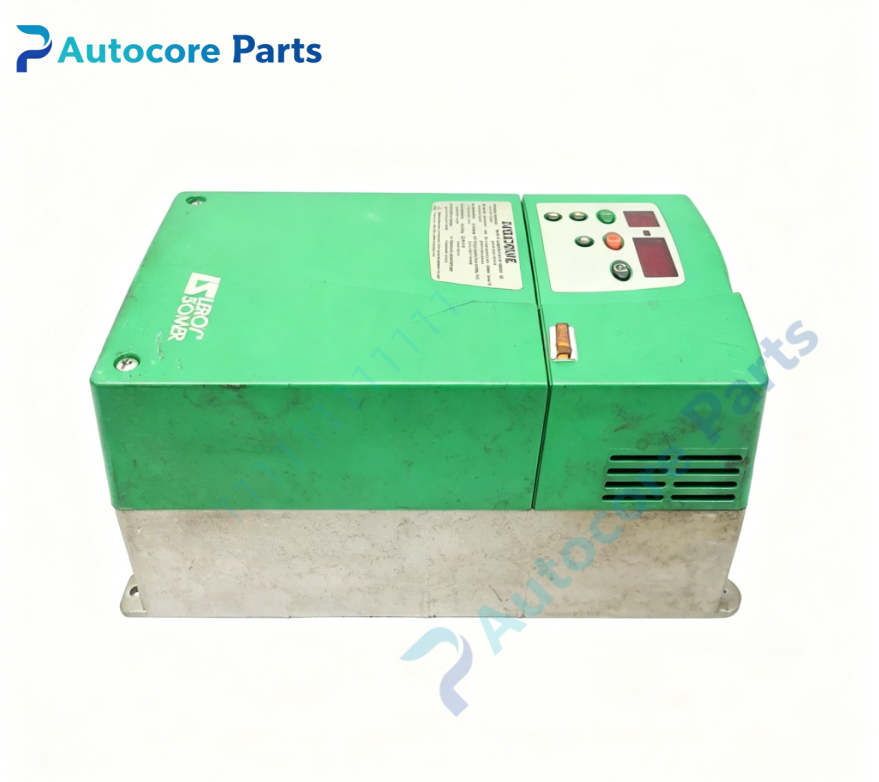

Control Techniques SE23400300 Commander SE Drive Unit

Module Feature

SE23400300 is Commander SE series three-phase AC variable frequency drive manufactured by Control Techniques,designed for speed and torque control of standard asynchronous induction motors. It adopts advanced vector control algorithm,offers stable low-speed torque performance and overload capacity. Built-in digital keypad and display for local parameter setup and status monitoring. Rich programmable digital & analog I/O terminals support external sensor and PLC connection,widely used for conveyors,pumps,fan and general automation machinery.

Working principle

Rectifier converts three-phase AC input into DC voltage, then IGBT inverter module converts DC into adjustable frequency and adjustable voltage AC output to drive induction motor. Real-time monitoring of motor current and speed to realize closed-loop speed regulation, overload protection and soft start/stop function.

Onboard components

Input rectifier bridge,IGBT power module,control PCB,digital operation keypad,LED status display,relay output terminal block,filter capacitor,heat sink.

LED indicators

Power indicator,run status indicator,fault alarm indicator.

Hardware self-diagnosis

Over voltage,under voltage,over current,over temperature,output short circuit,ground fault detection,motor overload monitoring.

Programming software

SESoft software, supports parameter upload/download,real-time data monitoring,fault history reading and drive configuration.

Electrical & Process Parameters

Model:SE23400300 Brand: Control Techniques Device type: Commander SE Three Phase AC Variable Frequency Drive Rated power:3kW / 4HP Input voltage:380 ~ 480VAC 3 phase Heavy duty output current:7.6A I/O:5 digital inputs,2 analog inputs,1 digital output,1 analog output,1 relay output Control mode:V/F control,open loop vector control Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault

Mechanical & Structure

Mounting:Panel mounting Protection class:IP20 / IP21 Housing:Metal sealed housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Commander SE 3kW VFD for general industrial motor speed control

Installation

Follow ESD safety procedure before handling.Mount vertically on solid metal backplate,keep enough ventilation space around heat sink.Connect three phase mains to L1/L2/L3 terminals,motor cable to U/V/W terminals.Wire control I/O and shield cable properly to reduce EMI. Power on system,open SESoft or use keypad to set motor nameplate parameters before commissioning.

Interface

Power terminal block,motor terminal block,control signal terminal block,RS232 communication port,keypad connector.

Diagnostic

Over current:motor short circuit,cable damage or excessive load. Overheat:poor ventilation,heatsink blocked or continuous overload. Under voltage:input power supply unstable or missing phase. Ground fault:motor winding insulation breakdown.

Product Brief

Control Techniques SE23400300 Commander SE AC variable frequency drive,3kW,380-480V three phase input,built-in keypad,vector control,for induction motor speed control in general industrial automation applications.
