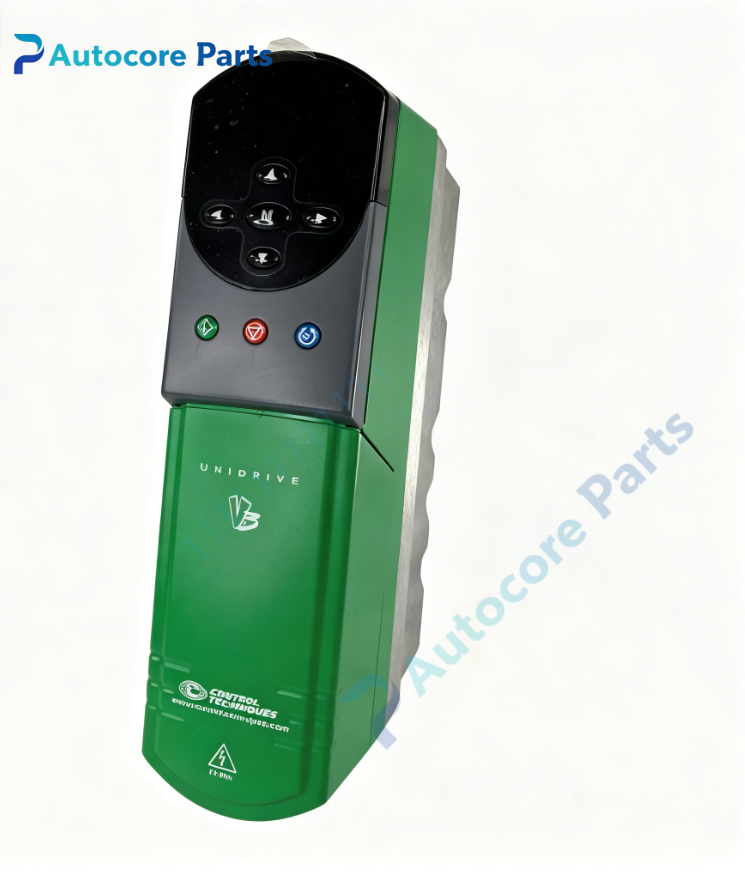

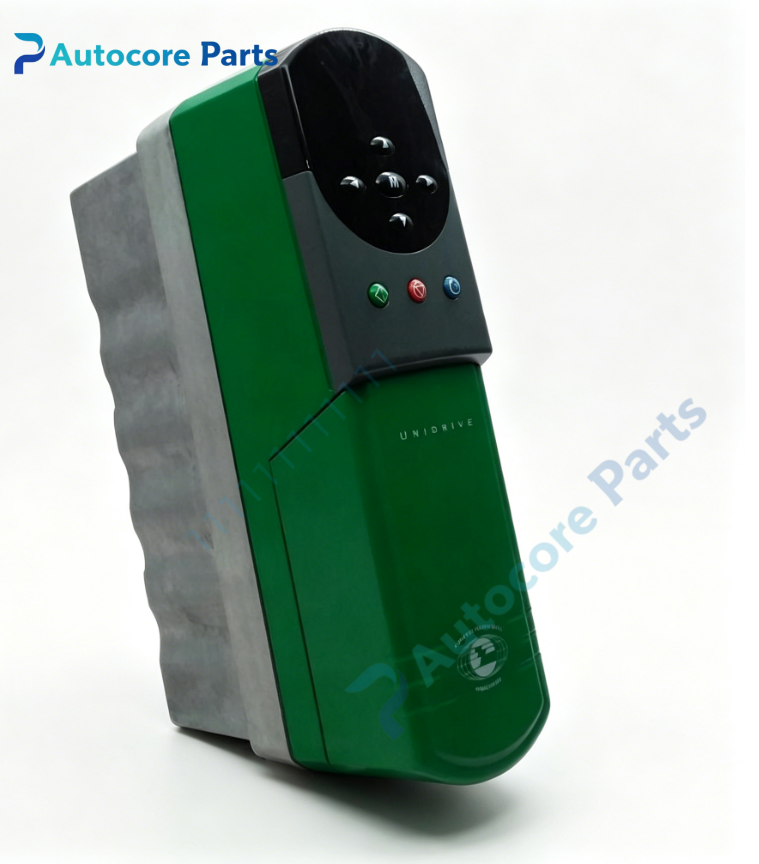

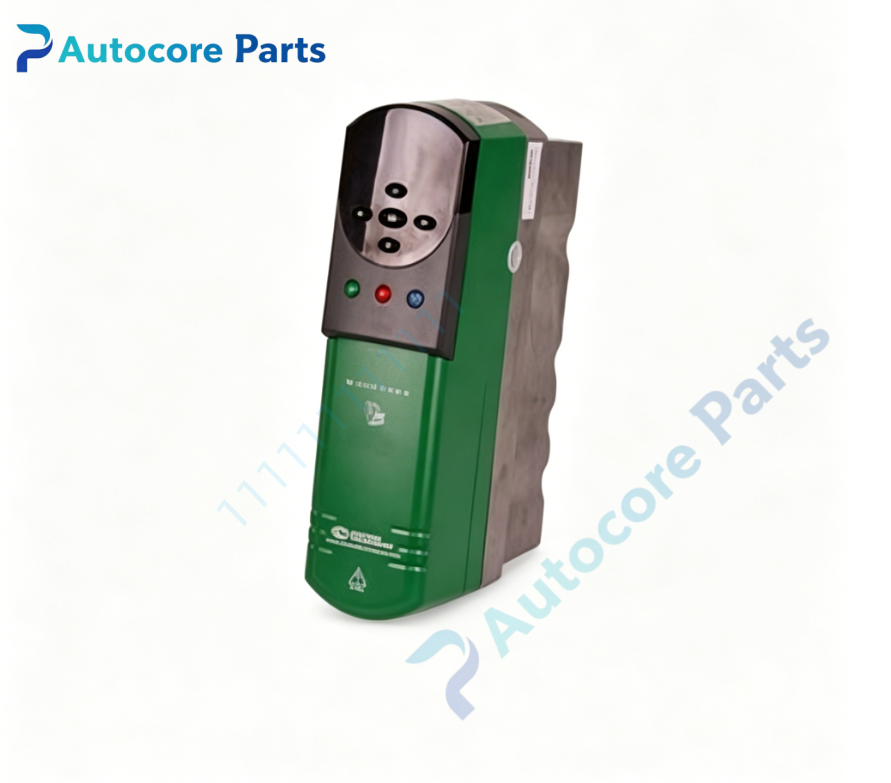

Control Techniques UNI1401 Unidrive Servo Drive Unit

Module Feature

UNI1401 is Unidrive series AC servo drive manufactured by Control Techniques. This unit is pre-tested and verified for function. It supports position, speed and torque control modes for Unimotor series servo motors. Flexible encoder interface accepts incremental feedback signals. Modular design allows optional expansion cards for fieldbus communication, widely applied in machine tools, packaging equipment and material handling systems.

Working principle

Convert AC input power to adjustable voltage and frequency output to drive servo motor. Receive position command from upper controller, compare command signal with encoder feedback signal, calculate output torque to realize high precision closed-loop motion control. Built-in protection circuit monitors working status continuously.

Onboard components

Power rectifier unit, IGBT power module, main control PCB, encoder interface, control terminal block, status LED, heat sink, expansion card slot.

LED indicators

Power LED, run indicator, fault alarm LED.

Hardware self-diagnosis

Overvoltage, undervoltage, overcurrent, overheat, motor overload, encoder signal loss, short circuit and earth fault detection.

Programming software

Unidrive Tools software, supports parameter auto-setup, real-time motion monitoring, fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:UNI1401 Brand: Control Techniques Device type: Unidrive AC Servo Drive Control mode: Position / Speed / Torque control Feedback: Incremental encoder input Cooling: Forced air cooling Protection: Over current, over voltage, under voltage, over temperature, short circuit, encoder fault protection

Mechanical & Structure

Mounting: Panel mounting Protection class: IP20 Housing: Metal housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Pre-tested Control Techniques Unidrive servo drive for industrial motion control

Installation

Follow ESD safety procedure before handling. Mount vertically with sufficient ventilation space. Connect main power, motor power cable and encoder feedback cable. Wire control signal terminals with shielded cable to reduce EMI. Power on and run motor auto-tune before commissioning.

Interface

Main power terminal, motor output terminal, control I/O terminal, encoder connector, expansion slot.

Diagnostic

Encoder loss: loose wiring or encoder damage. Over current: motor short circuit or mechanical jam. Overheat: blocked heat sink or continuous overload. Position jitter: incorrect servo gain or mechanical resonance.

Product Brief

Tested Control Techniques UNI1401 Unidrive servo drive, multi-mode motion control, incremental encoder feedback interface, used to drive Unimotor servo motors for high precision industrial automation motion systems.
