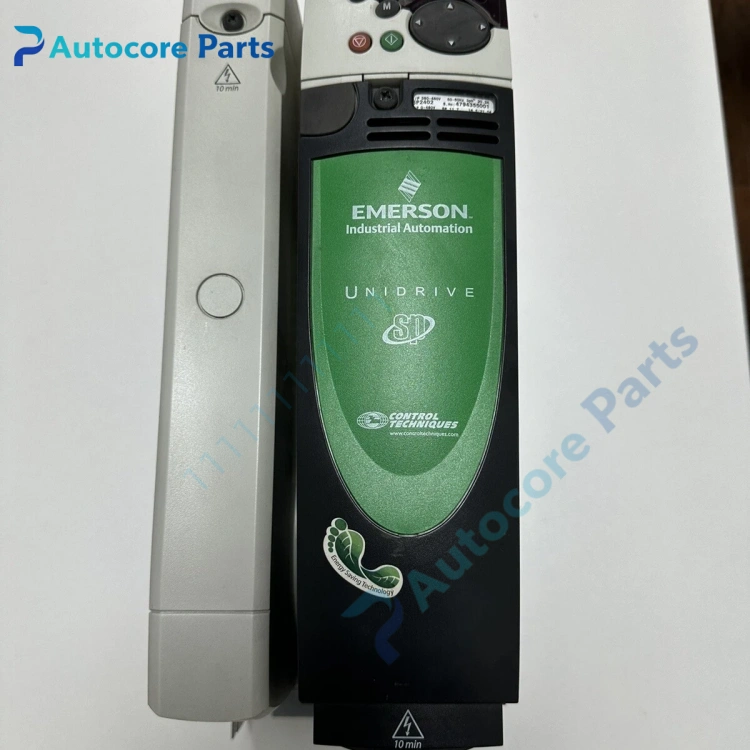

Control Techniques SP2402 Unidrive SP Drive

Feature & Principle

It adopts high-performance flux vector control platform, supports V/F, open-loop vector, closed-loop vector and servo control modes. It can be expanded with encoder modules and fieldbus option cards, built-in motion programming and STO safe torque off, suitable for speed, torque and positioning control of conveying, packaging and winding equipment.

Specifications

Model: SP2402 Brand: Control Techniques (Nidec) Voltage: 380~480V three-phase Heavy duty: 16.5A, 7.5kW Normal duty: 21A, 11kW Protection: IP20 Cooling: Air cooling Safety: STO Communication: Modbus RTU, optional Profibus / EtherCAT Mounting: Panel mount Certification: CE, UL

Components & Diagnostics

IGBT power module, main control board, cooling fan, terminal block, option slot for communication and encoder card. Common faults: overcurrent, DC bus overvoltage, fan fault, encoder feedback loss, fieldbus communication interruption.

Product Brief

SP2402 Unidrive SP drive, Control Techniques motion spare widely used for packaging machinery, winder, logistics conveyor and automated production line maintenance.
