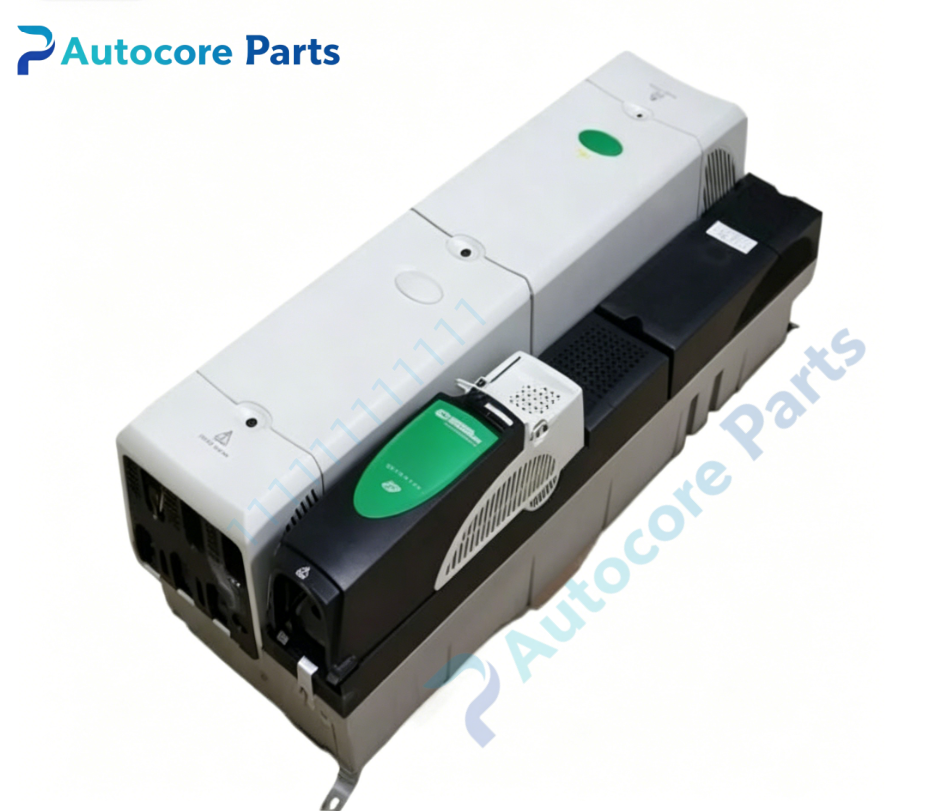

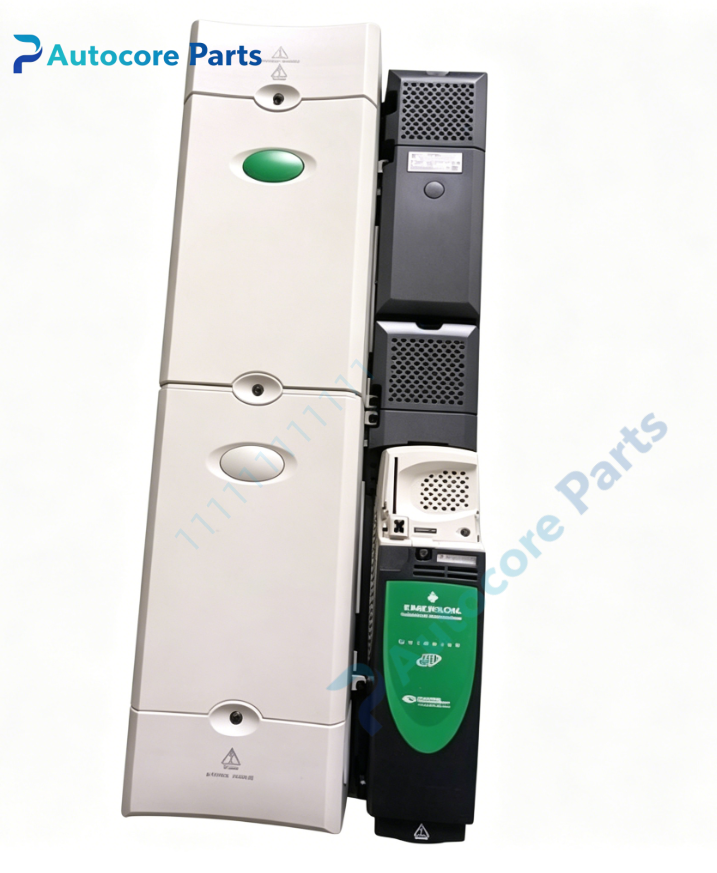

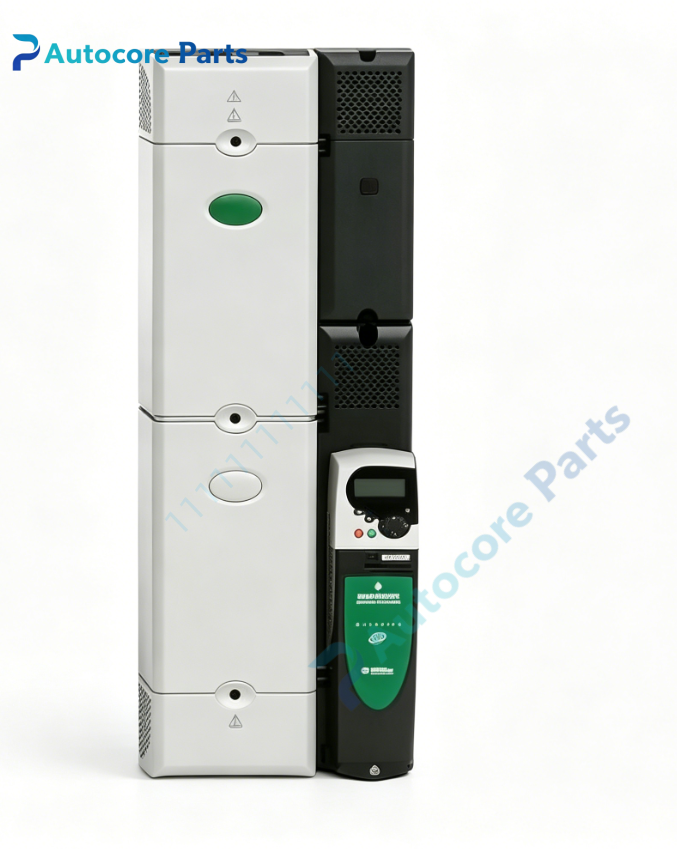

Control Techniques SP5402 Unidrive SP Universal Drive Unit

Module Feature

SP5402 belongs to Unidrive SP series universal AC drive manufactured by Control Techniques. It supports V/F, open-loop vector, closed-loop vector and high performance servo control, compatible with asynchronous motors and Unimotor FM servo motors. It has 3 expansion slots for SM option cards for encoder feedback, fieldbus communication and built-in motion control. Widely applied in printing machinery,winders,metal cutting,packaging and heavy-duty automation systems.

Working principle

Three-phase AC input is rectified to DC bus. IGBT power module converts DC to adjustable frequency and voltage AC output. It receives command signals from upper controller and compares with motor encoder feedback to realize closed-loop torque, speed or position regulation. Built-in brake transistor absorbs regenerative energy during motor deceleration.

Onboard components

Input rectifier bridge,IGBT power stage,main control PCB,status LED panel,dynamic braking transistor,heat sink,three SM option module slots,power & control terminal blocks.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,encoder signal loss,motor overload monitoring.

Programming software

Unidrive Tools software,supports motor auto-tune,real-time motion data monitoring,fault log reading and parameter backup/restore.

Electrical & Process Parameters

Model:SP5402 Brand: Control Techniques Device type: Unidrive SP Universal AC Drive Input voltage:380 ~ 480VAC three phase Power rating:75kW heavy duty /90kW normal duty Heavy duty continuous output current:156A Normal duty continuous output current:168A Control mode:V/F,open vector,closed vector,servo control Feedback:Incremental,SinCos,SSI absolute encoder via SM option card Cooling:Forced air cooling Protection:Over current,over voltage,under voltage,overheat,short circuit,earth fault

Mechanical & Structure

Mounting:Panel mounting Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Control Techniques Unidrive SP 75/90kW universal drive for high dynamic industrial motion control

Installation

Follow ESD safety procedure before handling.Mount vertically in control cabinet and reserve sufficient ventilation space.Connect three-phase mains power to L1/L2/L3 terminals and motor cable to U/V/W terminals. Use shielded cable for encoder and control I/O wiring to reduce EMI interference. Power on and complete motor auto-tune before commissioning.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,three SM expansion slots,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware failure. Under voltage:input power supply fluctuation or phase loss.

Product Brief

Control Techniques SP5402 Unidrive SP universal AC drive,75kW heavy duty /90kW normal duty,380-480V three phase input,supports servo and vector control,expandable with SM option modules for industrial automation motion applications.
