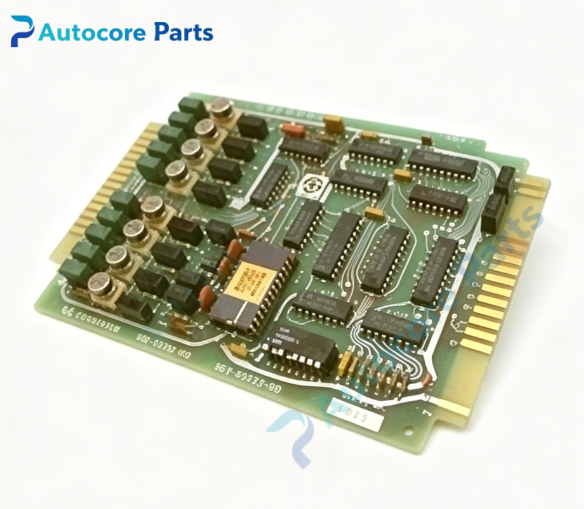

DANAHER MOTION 501-03099-001 Control Board

Technical SpecificationsModel：501-03099-001 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in printed circuit board assembly for heavy CNC motion control system

Board Feature:Function: Real-time signal buffering and data transmission between CNC CPU, servo axis cards and I/O modules Differential signal processing circuit for noise rejection On-board status LED indicators for hardware diagnostic ESD and surge protection circuit for signal lines Gold finger edge connector for backplane rack connection

Electrical Parameters:Supply voltage:+5VDC, ±15VDC supplied from CNC rack backplane Signal level:TTL / differential signal compatible Signal isolation for control circuit protection

Mechanical & Structure:Housing:PCB assembly with metal hold-down bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-03099-001 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Matched with older Giddings & Lewis CPU, analog servo control boards and I/O modules. Widely deployed on heavy boring mills, vertical and horizontal CNC machine tools.

Function

501-03099-001 is rack-mounted control PCB board manufactured by DANAHER MOTION Giddings & Lewis. It serves as internal signal and data bus coordinator in CNC rack. It forwards motion commands, encoder feedback and I/O status data between main CPU board and axis control cards. On-board LEDs allow maintenance technicians to quickly check hardware working status and locate faults.

Installation

Follow lockout/tagout safety procedure before installation. Cut off full power of CNC rack. Insert 501-03099-001 gold finger card into vacant rack slot and lock the retention bracket. Wire signal cables following Giddings & Lewis hardware manual. Power on and perform bus communication and function test after wiring completion.

Interface

Gold-edge backplane connector, signal terminal block, on-board status LED indicator for DANAHER MOTION 501-03099-001.

Feature

Original DANAHER MOTION 501-03099-001 CNC PCB assembly,gold finger rack plug-in design,differential signal anti-interference circuit,LED diagnostic indicators,ESD & surge protection,UL & CE certified. This spare unit is used for legacy heavy-duty CNC machine control system maintenance and hardware replacement.

Diagnostic

Board no response: Inspect rack backplane power and gold finger contact condition. Intermittent communication error: Check rack grounding, cable shielding and surrounding electromagnetic interference. LED fault alarm: Troubleshoot overvoltage or short circuit in signal circuits.

Product Brief

501-03099-001 is DANAHER MOTION Giddings & Lewis legacy rack mount CNC control PCB board,for data and signal exchange inside heavy CNC machine control rack,discontinued spare card.
