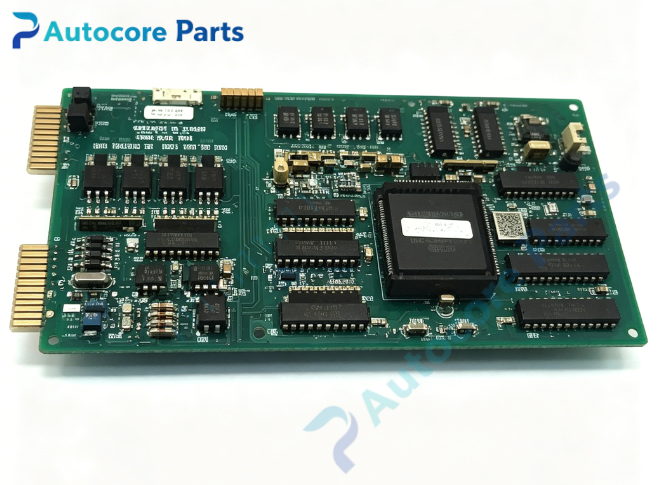

DANAHER MOTION 501-05055-00 Interface Board

Technical SpecificationsModel：501-05055-00 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Rack plug-in interface printed circuit board assembly for legacy CNC motion control rack

Board Feature:Function: Digital and analog signal buffering, level translation and transient surge filtering between CNC backplane bus and machine field peripherals Integrated ESD protection circuit for all field signal terminals On-board LED indicators for hardware power and fault diagnosis Signal buffer circuit to improve bus driving capability Gold finger edge connector for rack backplane connection Isolation design to reduce electromagnetic interference between control rack and machine field

Electrical Parameters:Backplane supply:+5VDC, ±15VDC supplied from CNC rack power supply Signal: TTL differential and analog signal processing Surge withstand rating for industrial machine environment

Mechanical & Structure:Housing:PCB assembly with metal retention bracket Mounting:Plug-in installation into Giddings & Lewis CNC rack slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

501-05055-00 belongs to DANAHER MOTION Giddings & Lewis legacy CNC rack family. Compatible with older Giddings & Lewis CPU board, servo axis control cards, encoder feedback boards and I/O modules. Widely used on heavy-duty boring mills, vertical turning centers and large horizontal machining centers.

Function

501-05055-00 is interface PCB board manufactured by DANAHER MOTION Giddings & Lewis. It works as signal conditioning bridge between CNC rack logic and machine field devices. It buffers digital and analog signals and suppresses transient surges and noise interference, protecting main processor and motion control cards from field circuit damage. On-board LEDs allow maintenance technicians to quickly judge board power and fault status.

Installation

Follow lockout/tagout safety procedure before installation. Fully power off CNC rack. Insert 501-05055-00 gold finger card into vacant rack slot and lock retention bracket. Wire field signal cables according to Giddings & Lewis hardware manual. After installation, power on and execute signal communication verification test.

Interface

Gold-edge backplane connector, field signal terminal block, on-board status LED indicator for DANAHER MOTION 501-05055-00.

Feature

Original DANAHER MOTION 501-05055-00 CNC interface PCB board,gold finger plug-in rack design,signal surge filtering & ESD protection,LED diagnostic indicators,anti-EMI buffer circuit,UL & CE certified. This spare unit is used for legacy heavy CNC machine control system maintenance and hardware replacement.

Diagnostic

Signal transmission failure: Check rack backplane power and gold finger contact integrity. Random signal distortion: Inspect cable shielding, cabinet grounding and surrounding EMI interference. Board fault alarm: Troubleshoot overvoltage or short-circuit on field signal lines.

Product Brief

501-05055-00 is DANAHER MOTION Giddings & Lewis legacy rack mount CNC interface PCB board,for signal buffering and conditioning between CNC rack and machine field peripherals,discontinued spare card.
