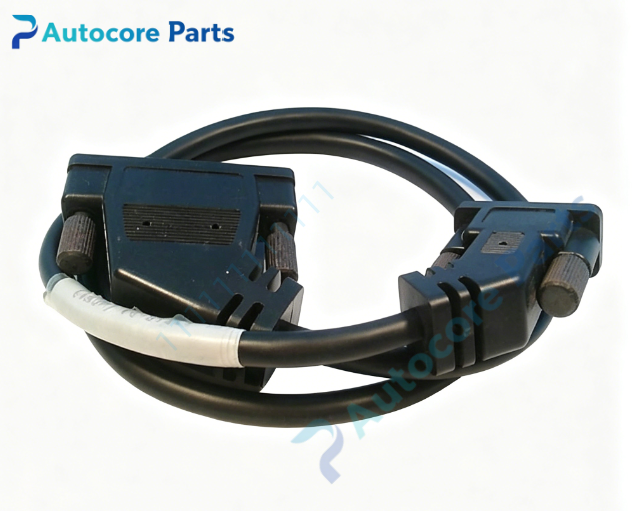

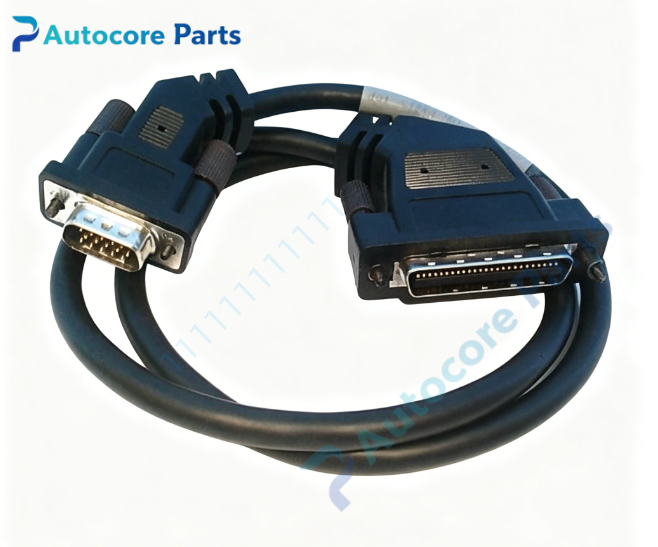

DANAHER MOTION M1016.2513 Servo Control Cable

Technical SpecificationsModel：M1016.2513 Brand：DANAHER MOTION (Giddings & Lewis) Product Type: Shielded uDSM servo signal cable assembly for PiC900 CNC motion control system

Cable Feature:Function: Transmit differential servo command and encoder feedback signals between PiC900 rack and uDSM micro servo amplifier Twisted pair conductors for differential signal integrity Full copper braid shielding to suppress electromagnetic interference from power lines Factory pre-terminated connectors at both ends for direct plug-in Flexible outer jacket suitable for machine tool drag chain installation Oil-resistant and abrasion-resistant construction for harsh workshop environment

Electrical Parameters:Rated voltage:300V Signal:Low voltage differential quadrature & servo command signals Shield:Continuous copper braid,360° shield termination at connector housings Insulation material:High performance dielectric insulation

Mechanical & Structure:Outer sheath:Flexible PUR industrial cable jacket Termination:Pre-assembled molded connectors at both cable ends Dynamic flex:Designed for repeated bending in drag chain Protection class:IP67 when connectors fully mated

Environmental:Operating temperature:-20℃ ~ +80℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

M1016.2513 belongs to DANAHER MOTION Giddings & Lewis PiC900 motion control series. Matched with PiC900 control rack and uDSM micro servo drives. Widely applied on heavy-duty boring mills, vertical turning centers and large horizontal machining centers.

Function

M1016.2513 is factory pre-terminated shielded uDSM servo signal cable manufactured by DANAHER MOTION Giddings & Lewis. It carries differential motion commands and encoder feedback signals between PiC900 rack control card and uDSM servo drive. Twisted pair plus full copper shielding protects sensitive low-speed differential signals from high power cable noise. Pre-made connectors reduce field wiring mistakes and cut machine maintenance downtime.

Installation

Follow lockout/tagout safety procedure before installation. Ensure all power of CNC cabinet and servo drive is completely cut off. Route M1016.2513 cable inside drag chain where applicable. Connect one end to PiC900 rack signal port and the other end to uDSM servo drive control connector. Complete 360° shield grounding at cabinet side. Perform continuity and insulation resistance test before power-on commissioning.

Interface

PiC900 rack side signal connector, uDSM servo drive control connector, continuous copper braid shielding for DANAHER MOTION M1016.2513.

Feature

Original DANAHER MOTION M1016.2513 uDSM servo control cable,twisted pair differential signal design,full copper braid shielding,oil & abrasion resistant PUR jacket,factory pre-terminated connectors,UL & CE certified. This spare unit is used for Giddings & Lewis PiC900 CNC machine servo signal wiring replacement.

Diagnostic

No servo communication:Check cable continuity,connector pin damage or loose mating. Intermittent servo position fault:Inspect cable fatigue in drag chain,shield continuity and grounding. Signal noise alarm:Verify shield termination and physical separation from high-current servo power cables.

Product Brief

M1016.2513 is DANAHER MOTION Giddings & Lewis legacy uDSM shielded servo signal cable assembly,for communication between PiC900 control rack and microDSM servo amplifier of heavy-duty CNC machine tools,pre-terminated spare harness.
