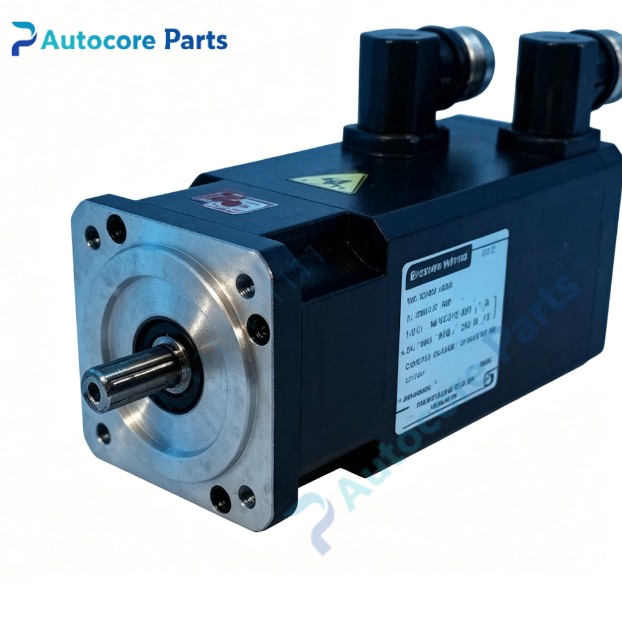

DANAHER MOTION HD70C4-44S Servo Motor

Technical SpecificationsModel：HD70C4-44S Brand：DANAHER MOTION (Giddings & Lewis) Product Type: HD series high-torque permanent magnet brushless AC servo motor for heavy CNC machine axes

Motor Feature:Motor type: 3-phase brushless permanent magnet synchronous servo motor Integrated high-resolution position feedback encoder High torque density, low cogging torque, stable operation at low speed Built-in thermal sensor for overheat protection, shaft seal and heavy-duty bearing Brake option: Integrated holding brake

Electrical Parameters:Rated voltage:230VAC three phase Rated speed:2000 rpm Rated torque:44 Nm Insulation class:F class Thermal protection: PTC thermistor embedded inside stator

Mechanical & Structure:Housing:Cast iron rugged motor housing Shaft:Keyway shaft, flange mounting Protection class:IP65

Environmental:Operating temperature:-20℃ ~ +40℃ Ambient humidity:5~85% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare

System compatibility

HD70C4-44S belongs to DANAHER MOTION Giddings & Lewis HD heavy-duty servo motor family. Compatible with Centurion DSM series servo drives and PIC900 CNC controller. Widely installed on large horizontal boring mills and vertical turning centers.

Function

HD70C4-44S is heavy-duty brushless AC servo motor manufactured by DANAHER MOTION. It converts three-phase power from servo amplifier into precise rotary mechanical torque to drive CNC machine linear or rotary axes. Built-in encoder feeds back real-time shaft position and speed to servo drive for closed-loop positioning control. The thermal sensor monitors stator temperature to prevent motor burnout under overload.

Installation

Follow lockout/tagout safety procedure before installation. Mount motor flange to machine mechanical base, align shaft coupling carefully. Connect three-phase power cable, encoder feedback cable and thermal sensor cable strictly follow Giddings & Lewis wiring manual. Perform axis homing and load test after mechanical alignment and wiring.

Interface

3-phase power connector, encoder feedback connector, thermal sensor terminal, shaft keyway for DANAHER MOTION HD70C4-44S.

Feature

Original DANAHER MOTION HD70C4-44S heavy duty servo motor,44Nm rated torque,IP65 protection,embedded thermal monitoring,high resolution encoder,robust cast housing,UL & CE certified. This spare unit is used for Giddings & Lewis large CNC machine axis drive replacement and maintenance.

Diagnostic

Motor no rotation: Check three-phase power wiring, encoder cable and servo drive enable signal. Overheat alarm: Inspect motor load, ventilation condition and PTC thermal circuit. Positioning deviation: Verify encoder connection, coupling looseness and mechanical backlash.

Product Brief

HD70C4-44S is DANAHER MOTION Giddings & Lewis HD series 44Nm heavy-duty brushless AC servo motor,matched with Centurion DSM servo drives,classic spare part for large CNC boring and milling machine axes.
