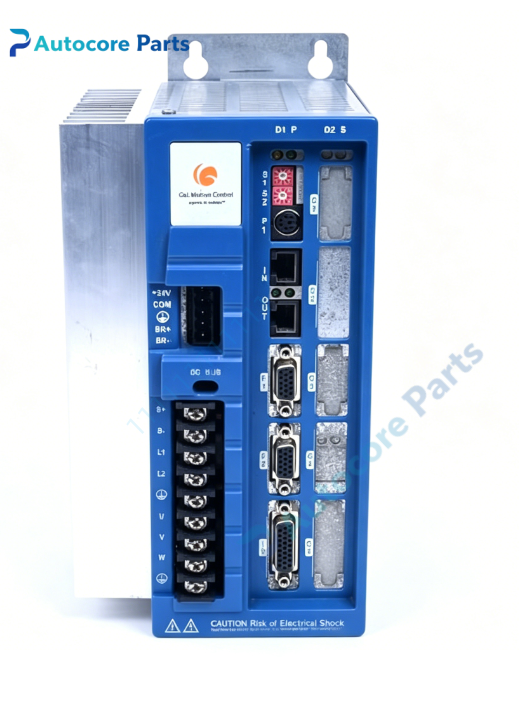

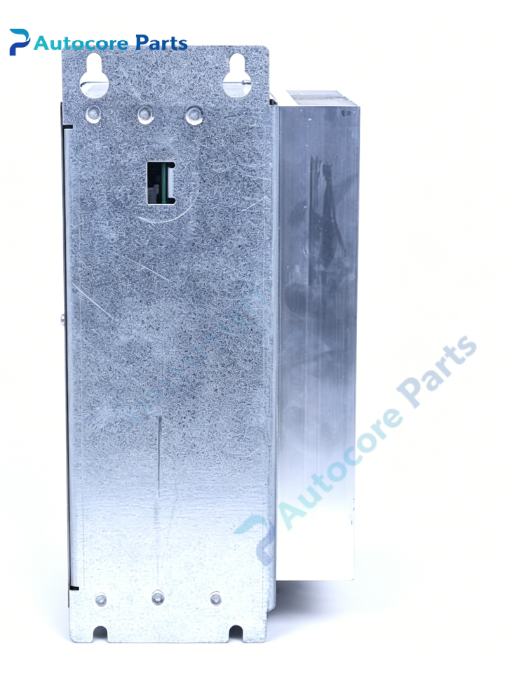

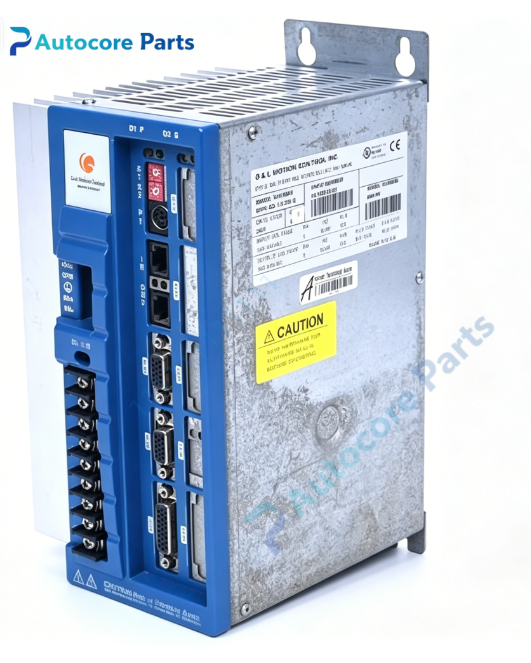

DANAHER MOTION MMC-SD-1.0-230 Servo Drive

Technical SpecificationsModel：MMC-SD-1.0-230 Brand：DANAHER MOTION (Kollmorgen) Product Type: MMC Smart Drive series analog digital servo amplifier for industrial motion control

Drive Feature:Control mode: Position / Speed / Torque control Command input: ±10V analog command, pulse & direction Built-in function: Electronic cam, master-slave gearing, homing routine, S-curve acceleration, built-in shunt resistor Feedback support: Incremental encoder, resolver PWM switching frequency: High resolution digital control loop

Electrical Parameters:Input voltage: 115/230VAC single phase 50/60Hz Rated output power:1.0kW Continuous output current:3.5A Peak output current:7A Control power supply:24VDC

Mechanical & Structure:Housing: Metal sheet enclosure Mounting: Cabinet panel mounting Cooling: Convection cooling Protection class: IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification: UL, CE approved Weight: Approx 2.6kg

System compatibility

MMC-SD-1.0-230 belongs to DANAHER MOTION MMC Smart Drive family. Compatible with Kollmorgen NSM / AKM series brushless servo motors, works with PiCPro programming software. Widely used for packaging machinery, textile equipment and CNC single-axis precision motion control systems.

Function

MMC-SD-1.0-230 is intelligent digital servo amplifier manufactured by DANAHER MOTION Kollmorgen. It receives motion command via analog ±10V or pulse signal, outputs adjustable power to brushless servo motor. Full digital closed-loop control supports high-precision positioning and stable speed regulation. It can realize electronic cam and synchronous master-slave motion for automated production equipment.

Installation

Follow lockout/tagout safety procedure before installation. Mount MMC-SD-1.0-230 firmly inside electrical cabinet. Connect AC power cable, motor power cable and feedback cable strictly follow MMC Smart Drive hardware manual. Complete motor auto-tuning and motion test during commissioning.

Interface

AC power terminals, motor output terminals, encoder/resolver feedback port, digital I/O terminals, serial communication port, status LED indicator for DANAHER MOTION MMC-SD-1.0-230.

Feature

Original DANAHER MOTION MMC-SD-1.0-230 smart servo drive,1kW power rating,analog command interface,support multiple feedback types,built-in brake & overcurrent protection,UL & CE certified. This spare unit is used for single-axis automation equipment control,motion system maintenance and hardware replacement.

Diagnostic

Drive alarm: Inspect overvoltage,undervoltage,overcurrent and overtemperature faults. Motor no rotation: Check power wiring,encoder/resolver connection and drive enable signal. Positioning deviation: Re-tune servo gain,inspect feedback signal and mechanical backlash. Abnormal vibration: Adjust servo parameters,check motor and coupling alignment.

Product Brief

MMC-SD-1.0-230 is DANAHER MOTION Kollmorgen MMC Smart Drive 1kW analog servo amplifier,supports multi-mode control,matched with NSM/AKM Kollmorgen servo motors,classic spare part for single-axis industrial CNC and automation machinery.
