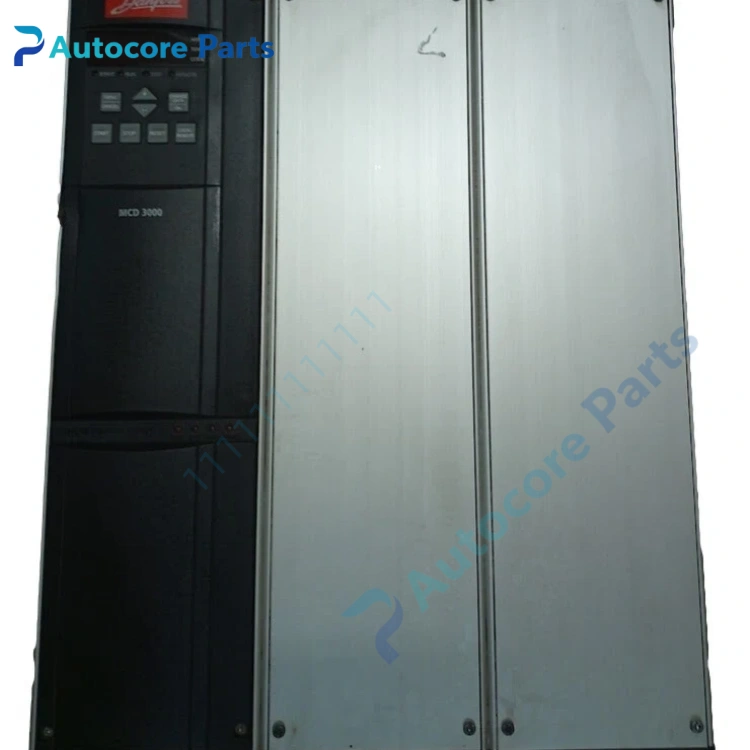

Danfoss MCD3132-T5-C21 Soft Starter

Feature & Principle

It is Danfoss MCD3000 series compact soft starter. It adopts three-phase anti-parallel thyristor regulation to smoothly adjust output voltage, limit starting inrush current and reduce mechanical shock of the motor. Built-in multiple protection functions, with local operation panel for parameter setting and fault checking. C21 stands for IP21 compact version, suitable for direct cabinet wall mounting. This model is discontinued, used for maintenance replacement of water treatment, HVAC and industrial fan loads.

Specifications

Model: MCD3132-T5-C21 Brand: Danfoss Series: MCD3000 Rated current: 312 A Main voltage range: 200 ~ 525 VAC (T5) Enclosure: IP21 (C21 compact) Control mode: 3-phase SCR control Function: Soft start, soft stop, current limit, motor thermal overload protection Interface: Local keypad, relay output, analog option Application: Water pump, blower, fan, conveyor, HVAC system Certification: CE, UL

Components & Diagnostics

Thyristor power module, current transformer, main control board, operation panel, cooling fan, power terminal. Common faults: SCR breakdown, fan failure, overcurrent trip, parameter loss, terminal overheating.

Product Brief

MCD3132-T5-C21 soft starter, Danfoss MCD3000 obsolete motor starting spare widely used for pump and fan control cabinet overhaul and replacement.
