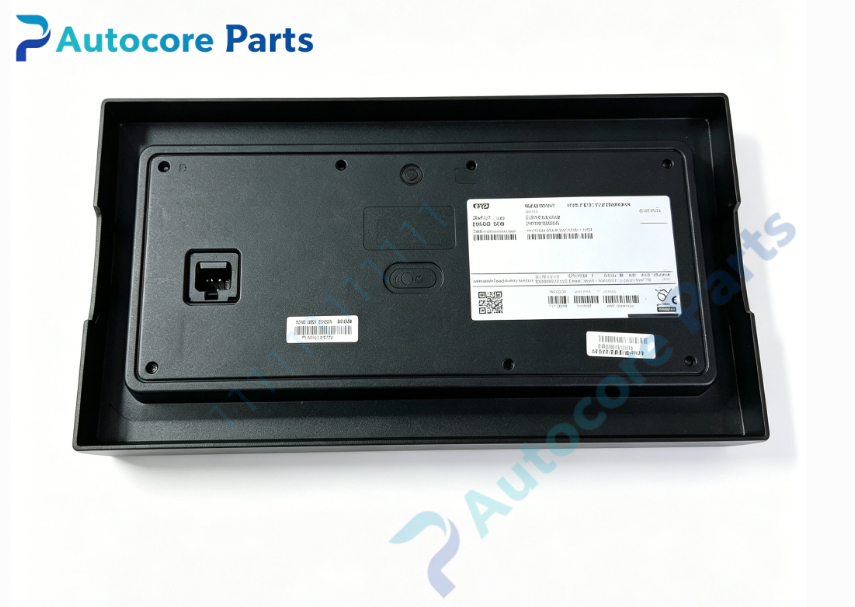

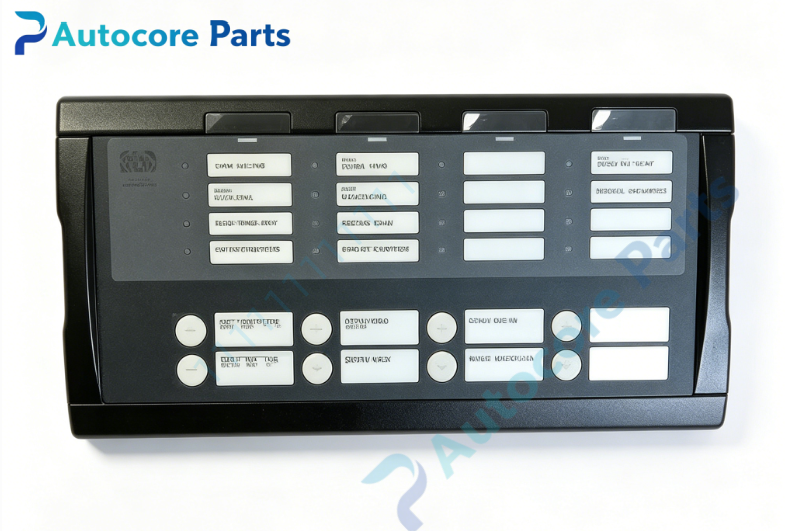

DEIF AOP‑1.1DU2.1DGU‑7 Additional Operator Panel

Technical Specifications

Model:AOP‑1.1DU2.1DGU‑7

Brand:DEIF

System compatibility:DEIF AOP‑1 series additional operator panel,matched with corresponding DEIF power management controller,connected via dedicated internal cable for local cabinet operation

Function:Local additional operator panel for marine switchboard,equipped with configurable LED status indicators and function push‑buttons,realizes working status indication,alarm indication,local mode operation,LED lamp test function;LED and button functions configurable by DEIF configuration tool

Installation:Front panel cut‑out mounting,installed on marine switchboard front plate,short‑distance cable connection to main controller unit

Interface:D‑SUB connector,dedicated short connecting cable

Indicator:Configurable multi‑color LED indicators

Operation element:Configurable function push‑buttons

Circuit feature:Built‑in LED lamp test function,adjustable LED brightness,status signal feedback

Feature:Panel‑mount compact structure,designed for marine switchboard cabinet,only for local short‑range connection,not for remote CAN‑bus extension

Diagnostic:LED indicators display power supply,operating status and alarm signals of power management system

Power supply:Power supplied from matched main controller via connecting cable

Protection class:Front panel IP40

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with IEC 60255‑21‑2 marine environmental standard

Weight:0.41kg

Dimensions:115mm ×220mm ×20mm

Certification:Marine type approval,CE

Built‑in function

AOP‑1.1DU2.1DGU‑7 additional operator panel provides local push‑button operation and LED status indication for DEIF power management controller. It supports equipment state display,alarm prompt and local operation control. Parameters can be configured by supporting software. Widely used for generator power station local operation on ships and offshore platforms.

Product Brief

AOP‑1.1DU2.1DGU‑7 belongs to DEIF AOP‑1 series marine power‑management‑system spare‑part family,local additional operator panel for marine switchboard. Suitable for short‑distance local cabinet connection,cannot be used as remote panel. Widely applied for marine power equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
