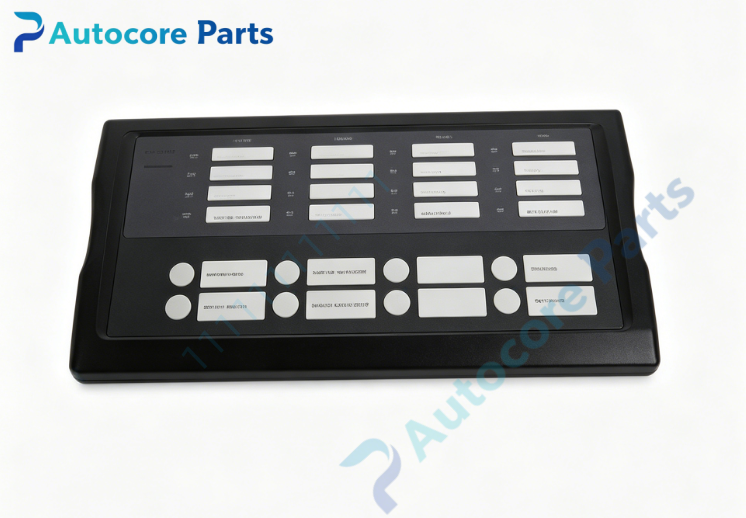

DEIF AOP‑2.1DU2.1DGU‑7 Remote Additional Operator Panel

Technical Specifications

Model:AOP‑2.1DU2.1DGU‑7

Brand:DEIF

System compatibility:DEIF AOP‑2 series remote operator panel,communicates with compatible DEIF power management controller via CAN‑bus,supports long‑distance remote cabinet installation

Function:Remote additional operator panel for marine switchboard,equipped with configurable LED status indicators and function push‑buttons,realizes remote status indication,alarm display,local mode operation,LED lamp test function;LED and button functions configurable by DEIF configuration software

Installation:Front panel cut‑out mounting,installed on remote switchboard front plate,connected to main controller via CAN‑bus cable

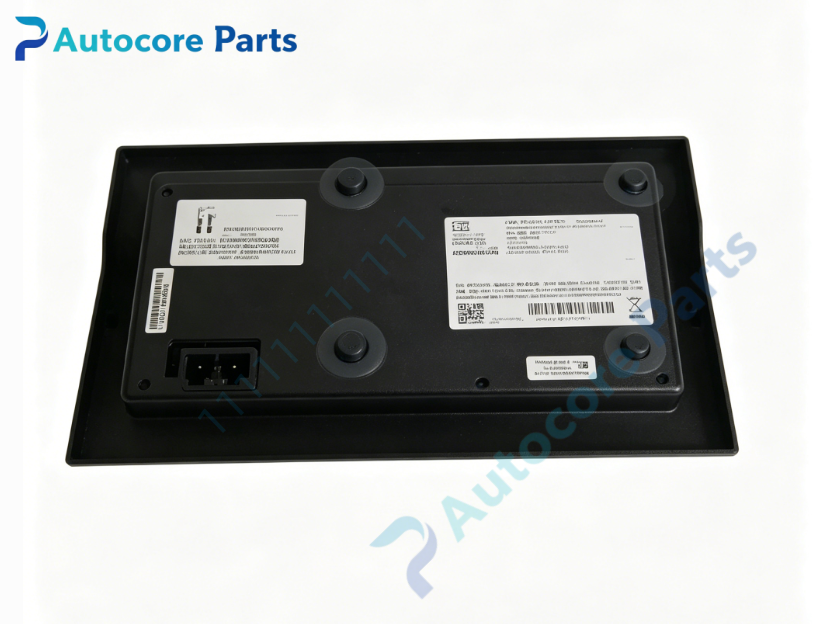

Interface:CAN‑bus communication interface,terminal block connection

Indicator:Configurable multi‑color LED indicators

Operation element:Configurable function push‑buttons

Circuit feature:Built‑in LED lamp test function,adjustable LED brightness,CAN‑bus communication fault detection

Feature:Panel‑mount compact structure,designed for marine switchboard cabinet,supports long‑distance remote installation via CAN‑bus,distinguished from short‑cable local AOP‑1 series panels

Diagnostic:LED indicators display power supply,operating status,alarm signals and CAN‑bus communication fault status

Power supply:24VDC external power supply

Protection class:Front panel IP40

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with IEC 60255‑21‑2 marine environmental standard

Weight:0.41kg

Dimensions:115mm ×220mm ×20mm

Certification:Marine type approval,CE

Built‑in function

AOP‑2.1DU2.1DGU‑7 remote additional operator panel provides remote push‑button operation and LED status indication for DEIF power management controller. CAN‑bus enables long‑distance layout of operation panel. It supports equipment state display,alarm prompt and remote operation control. Parameters can be configured by supporting software. Widely used for generator power‑station remote operation on ships and offshore platforms.

Product Brief

AOP‑2.1DU2.1DGU‑7 belongs to DEIF AOP‑2 series marine power‑management‑system spare‑part family,CAN‑bus remote operator panel for marine switchboard. Supports long‑distance remote installation,different from local short‑cable AOP‑1 series. Widely applied for marine power equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
