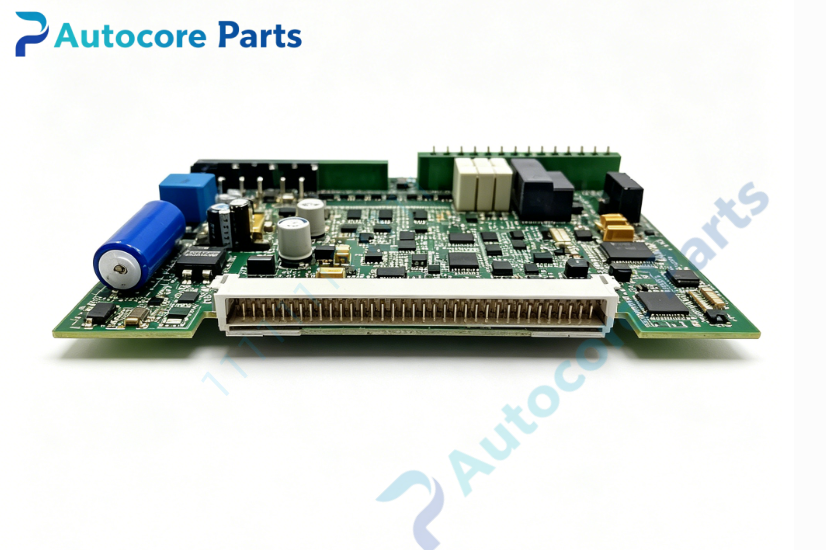

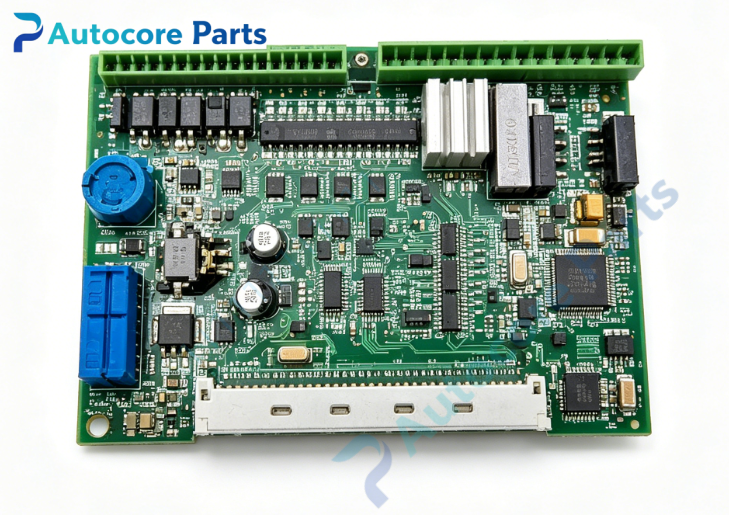

DEIF DPD08063 Genset Control & Measurement PCB Card

Technical Specifications

Model:DPD08063(Part No.1044500440B,revision A/B exist)

Brand:DEIF

System compatibility:Legacy plug‑in printed circuit board for DEIF marine generator controller,matches old‑series genset control unit,realizes signal measurement,protection judgment and logic processing. Different hardware revisions are not fully interchangeable,must confirm revision before replacement.

Function:Multi‑function control‑measurement PCB card,collects generator three‑phase voltage and CT current signals,calculates electrical parameters such as voltage,current,frequency;configurable protection thresholds for over‑voltage,under‑voltage,over‑current,fault frequency;realizes partial generator logic processing,relay output for alarm and trip signals,parameters set via DEIF configuration software.

Installation:Internal plug‑in board installation inside controller cabinet,connected via multi‑pin board‑to‑board connector,no panel cut‑out required.

Interface:

‑Multi‑pin back‑plane board‑to‑board connector

‑Screw terminal:AC voltage and CT current input

‑Relay output terminals for alarm and trip

Circuit feature:On‑board signal conditioning circuit,surge suppression for AC measuring inputs,hardware self‑diagnosis,relay drive circuit,flash memory for parameter storage.

Feature:Discontinued legacy marine PCB assembly,multiple hardware revisions 1044500440A / 1044500440B,revision verification is mandatory for replacement,94V‑0 fire‑retardant PCB substrate.

Diagnostic:On‑board LED indicates power supply and running‑fault status,fault status transmitted to upper panel.

Power supply:24VDC logic power supply,typical power consumption 2.4W

Protection class:IP20 when installed inside equipment cabinet

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with DNV / GL marine environmental requirement

Weight:0.14kg

Dimensions:160mm ×120mm ×20mm

Certification:DNV,CE

Built‑in function

DPD08063 PCB card completes AC signal acquisition,parameter calculation and electrical protection logic for DEIF marine generator control system. It monitors generator operating conditions and outputs alarm or trip signals when faults occur. Widely used for repair and component replacement of legacy marine generator control cabinets.

Product Brief

DPD08063(1044500440B) belongs to DEIF legacy marine power‑control‑system spare‑part family,plug‑in control‑measurement PCB card. Hardware revision must be confirmed before ordering, different revisions cannot be substituted arbitrarily. Widely applied for marine power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
