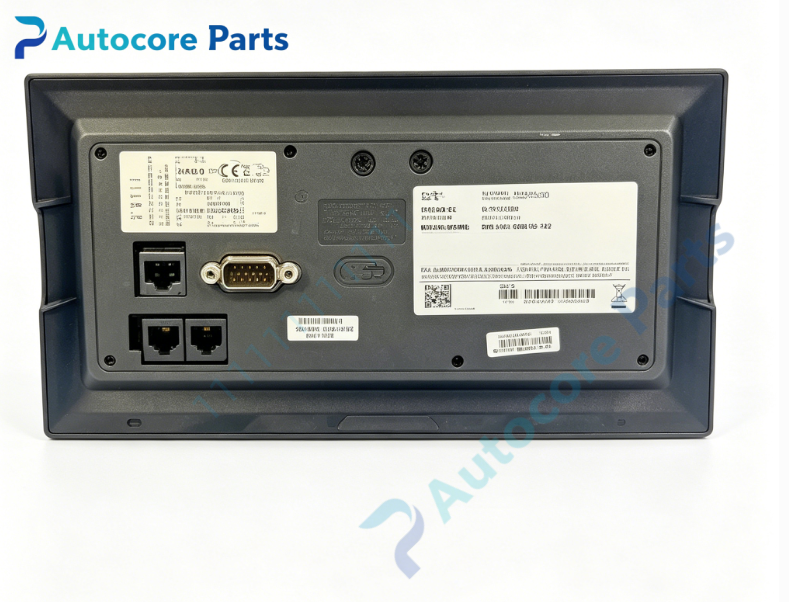

DEIF DU2.1DGU‑1 Delomatic‑4 Main Display Unit

Technical Specifications

Model:DU2.1DGU‑1(Item No.432125,Order No.400039294.10)

Brand:DEIF

System compatibility:Core main display unit for DEIF Delomatic‑4 power management system,communicates with controller via CAN‑bus interface;supports connection of AOP‑1 local panel and AOP‑2 remote CAN‑bus panels,acts as main human‑machine‑interface for genset control unit

Function:Main operator display unit for Delomatic‑4 marine power management system,LCD segment display,function navigation keys and dedicated function push‑buttons;realizes generator data monitoring,parameter configuration,manual synchronisation,alarm acknowledgement,fault history query;supports connecting AOP‑1 local panel by short cable or AOP‑2 remote panel via CAN‑bus

Installation:Front panel cut‑out mounting,installed on marine switchgear cabinet front plate

Interface:

‑CAN1 / CAN2 CAN‑bus terminals

‑AOP‑1 dedicated port for local auxiliary panel

‑D‑SUB9 service port for PC configuration tool

Display:Segment LCD display

Operation element:Navigation keys,start‑stop,sync and alarm function push‑buttons

Circuit feature:CAN‑bus galvanic isolation,event fault memory storage,parameter save function,service interface for firmware upgrade

Feature:Panel‑mount compact marine HMI unit,main display terminal of Delomatic‑4 system,multiple auxiliary operator panels can be expanded

Diagnostic:Front‑panel LED reflects power supply,system running status and CAN‑bus communication fault information

Power supply:24VDC external power supply

Protection class:Front panel IP40

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with DNV marine environmental standard

Weight:0.32kg

Dimensions:220mm ×115mm ×35mm

Certification:DNV,ABS,LR,CE,marine type approval

Built‑in function

DU2.1DGU‑1 serves as main HMI display unit for DEIF Delomatic‑4 marine power management system. It completes genset real‑time data viewing,parameter setting,manual paralleling operation and alarm handling. It can expand local AOP‑1 or remote AOP‑2 auxiliary panels for multi‑position operation. Widely used for generator power‑station monitoring and operation on ships and offshore platforms.

Product Brief

DU2.1DGU‑1(432125,400039294.10) belongs to DEIF Delomatic‑4 series marine power‑management‑system spare‑part family,main display operator panel. Compatible with AOP‑1 and AOP‑2 series auxiliary panels. Widely applied for marine power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
