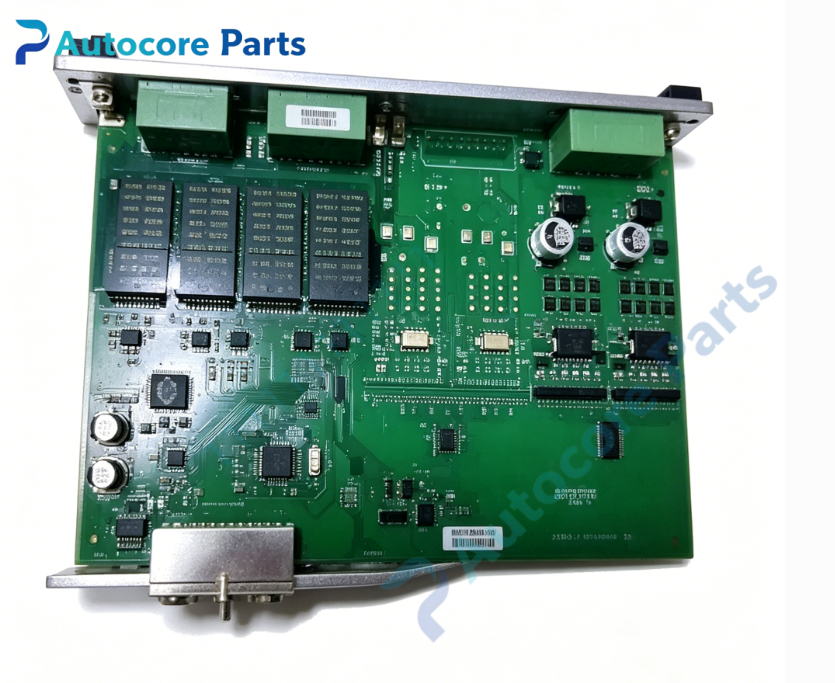

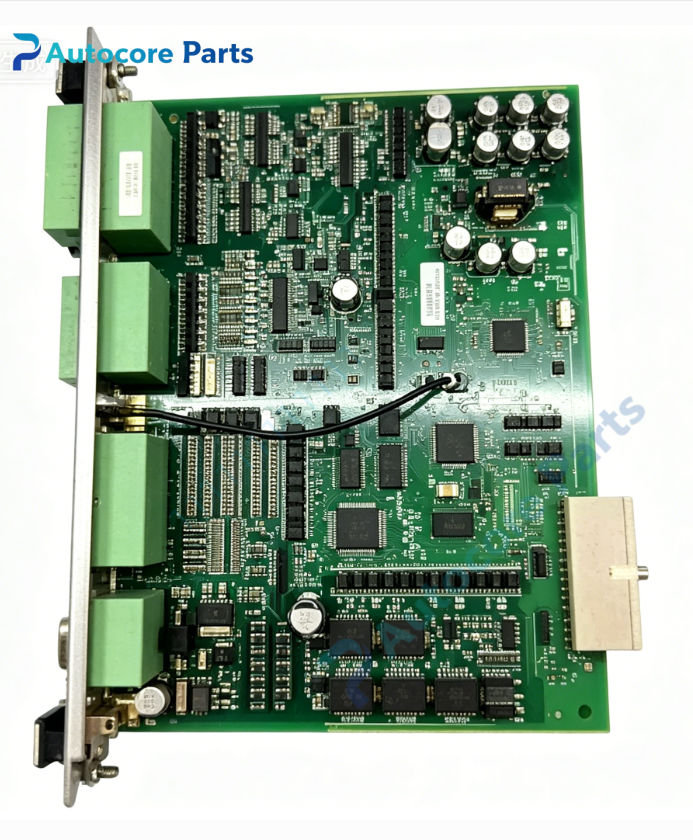

DEIF IOM5‑1 Multifunctional I/O Module For AWC500 Wind Controller

Technical Specifications

Model:IOM5‑1

Brand:DEIF

System compatibility:Special‑purpose I/O plug‑in module for DEIF AWC500 wind turbine controller,communicates with main CPU via EtherCAT field‑bus,designed for wind‑turbine harsh working environment.

Function:40‑channel highly integrated I/O module. 26 input channels:12 digital inputs,4 frequency/digital inputs,6 PT100 temperature inputs,4 configurable analogue inputs(‑20‑20mA /‑10‑10V). 14 output channels:10 digital outputs,4 configurable analogue outputs(‑20‑20mA). On‑board local processor completes signal sampling,scaling and pre‑calculation,reduces main controller computing load;all channels adopt opto‑coupler galvanic isolation.

Installation:Plug‑in slot mounting inside AWC500 rack,EtherCAT back‑plane bus connection,screw terminal block for field sensor wiring.

Interface:

‑Back‑plane EtherCAT internal bus

‑12 digital input terminals

‑4 frequency input terminals

‑6 temperature PT100 input terminals

‑4 analogue input terminals

‑10 digital output terminals

‑4 analogue output terminals

Circuit feature:Independent on‑board processor for signal pre‑processing,optical isolation for every channel,surge suppression for field terminals,EtherCAT communication fault diagnosis,non‑volatile memory for channel configuration parameters.

Feature:Wind‑power dedicated module,hot‑swap capable;tri‑colour front‑panel LED indicates EtherCAT bus operating state;not belong to DM‑4 marine Delomatic‑4 series,cannot mix‑use with IOM4‑1/IOM4‑2 modules.

Diagnostic:Front‑panel tri‑colour LED reflects power supply,EtherCAT communication status and module operating state;channel fault information transmitted to main controller via EtherCAT bus.

Power supply:24VDC logic power supply via rack back‑plane,typical power consumption 4.8W

Protection class:IP20 when installed inside AWC500 rack

Horizontal operating temperature:‑40℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with wind‑turbine industrial environmental requirement

Weight:0.52kg

Dimensions:30.5mm ×234mm ×160mm

Certification:CE

Built‑in function

IOM5‑1 multifunctional I/O module expands signal acquisition and output capacity for DEIF AWC500 wind turbine control system. It collects temperature,frequency,digital contact and analogue transducer signals,executes drive output for actuators. Local onboard processor finishes signal pre‑processing to relieve main controller burden. Widely used for wind‑turbine control cabinet signal expansion and spare‑part replacement.

Product Brief

IOM5‑1 belongs to DEIF AWC500 wind‑power‑control‑system spare‑part family,40‑channel rack‑mount I/O module for wind turbine controller. It uses EtherCAT bus,different from DM‑4 marine series IOM4‑1/IOM4‑2,modules cannot substitute each other. Widely applied for wind‑power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
