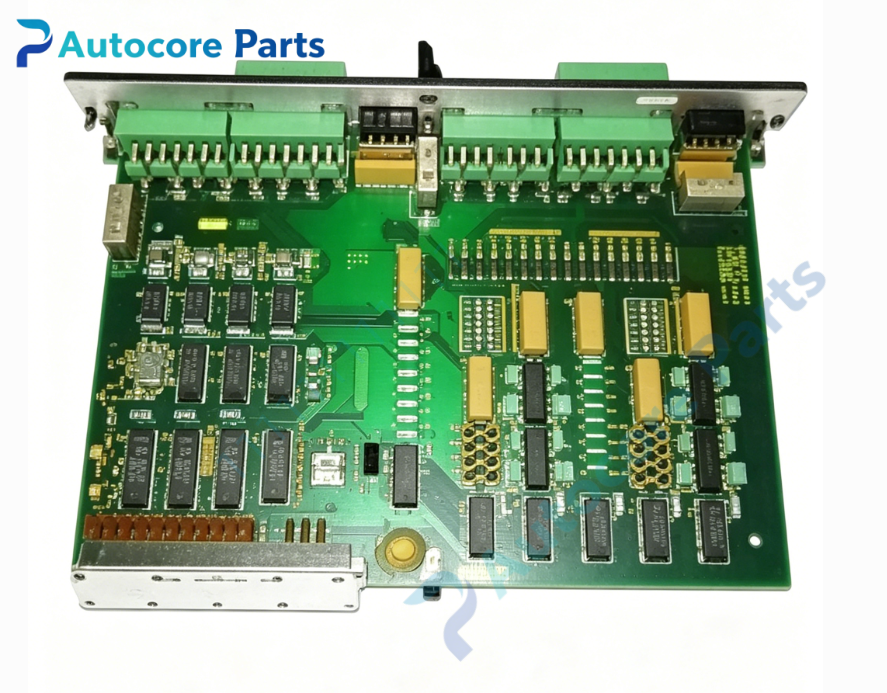

DEIF IPM‑1 Delomatic‑3 Binary / Analogue Input Module

Technical Specifications

Model:IPM‑1

Brand:DEIF

System compatibility:Plug‑in input extension module for DEIF Delomatic‑3 DGU rack,communicates with CM‑2 main controller via back‑plane ARC‑net bus. One DGU rack supports max 8 units of IPM‑1,expands up to 128 configurable input points for generator control system.

Function:16‑channel multi‑purpose input module. Each channel software‑selectable for binary dry‑contact input,0‑10V voltage or 0‑20mA analogue current input. Collects breaker position feedback,auxiliary switch status,external alarm contacts and transducer analogue measuring signals. Transmits all acquired data to CM‑2 main controller through ARC‑net token‑ring bus.

Installation:Plug‑in slot mounting inside Delomatic‑3 DGU rack,6TE width back‑plane 64‑pin connector connection,screw terminal block for field signal wiring.

Interface:

‑Back‑plane ARC‑net internal token‑ring bus

‑16‑channel signal screw terminal terminals

‑Front‑panel LED status indicators

Circuit feature:Per‑channel opto‑coupler galvanic isolation,signal filtering and debounce processing,surge suppression for field terminals,non‑volatile configuration storage.

Feature:Discontinued legacy marine rack‑mount module,classification society approved,hot‑swap capable;all channel configuration completed via Delomatic‑3 PC software,hardware jumper setting is not required.

Diagnostic:Front‑panel LED indicates module power,ARC‑net bus communication and each input channel status,fault information uploaded to CM‑2 controller.

Power supply:24VDC logic power supplied by DGU‑rack PSM‑1 power module,typical power consumption 3.0W

Protection class:IP20 when installed inside DGU rack

Horizontal operating temperature:‑25℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Shock & vibration:Complies with DNV / GL marine environmental requirement

Weight:0.44kg

Dimensions:30.5mm ×234mm ×160mm

Certification:DNV,GL,LR,ABS,CE,marine type approval

Built‑in function

IPM‑1 universal input module expands signal acquisition capacity for DEIF Delomatic‑3 marine genset control system. It collects discrete switch feedback and analogue transducer signals and delivers data to CM‑2 main controller. Multi‑channel flexible configuration adapts to complex shipboard signal conditions. Widely used for marine generator control cabinet maintenance and spare‑part replacement.

Product Brief

IPM‑1 belongs to DEIF Delomatic‑3 series marine power‑control‑system spare‑part family,16‑channel rack‑mount binary/analogue input module. Maximum 8 IPM‑1 modules per single DGU rack. Widely applied for marine power‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
