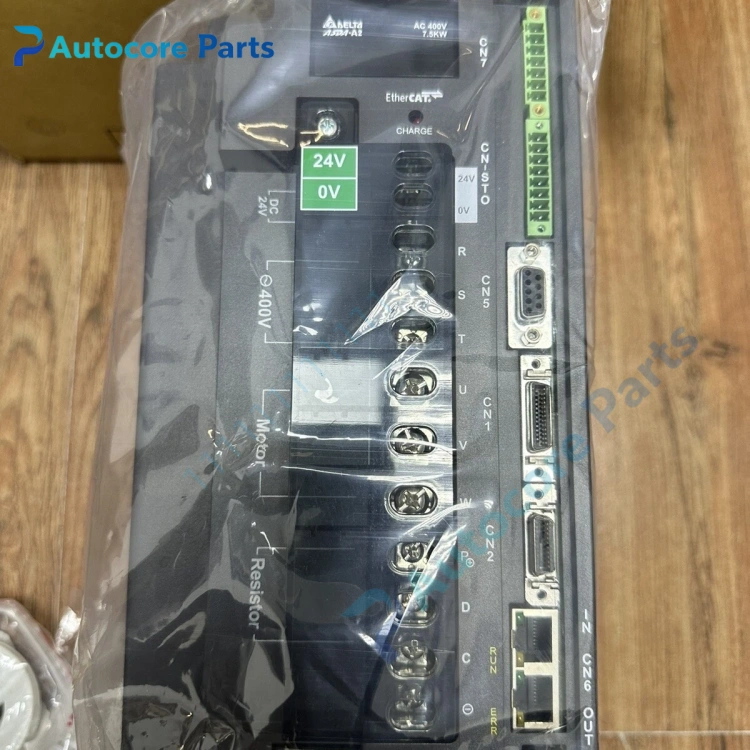

Delta ASD-A2-7543-E ASDA-A2 Servo Drive

Feature & Principle

It adopts high-bandwidth vector control algorithm, converts three-phase AC power into adjustable frequency output for permanent magnet servo motor. It supports position, speed, torque mode, built-in electronic cam and vibration suppression function, compatible with full closed-loop control and EtherCAT bus, realizes high-speed synchronous positioning for flying shear and gantry equipment.

Specifications

Model: ASD-A2-7543-E Brand: Delta Power: 7.5kW Voltage: 3-phase 380~480V Communication: EtherCAT Response bandwidth: 1kHz Safety: STO function Control: PR internal position, E-CAM, gantry control Certification: CE, UL

Components & Diagnostics

IGBT power module, main control board, cooling fan, encoder interface, EtherCAT communication port, status indicator. Common faults: overcurrent, overvoltage, encoder feedback error, EtherCAT link drop, fan alarm.

Product Brief

ASD-A2-7543-E servo drive, Delta motion spare widely used for printing, packaging, cutting machine and multi-axis synchronous automation production line maintenance.
