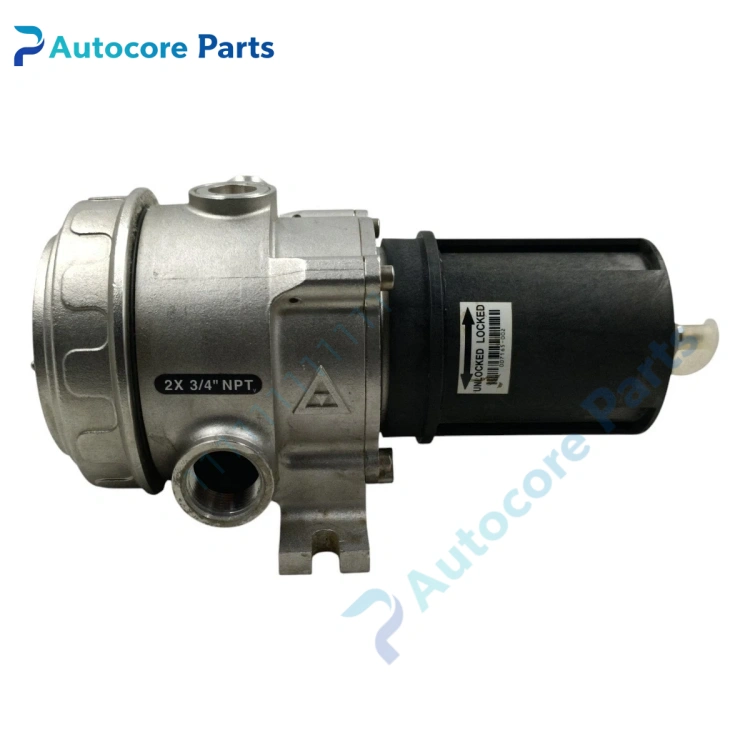

Det-Tronics PIRECLA1D1B2CI Gas Detector

Feature & Principle

It is a PointWatch Eclipse series diffusion NDIR infrared combustible gas detector from Det-Tronics. It detects hydrocarbon gas concentration by infrared light absorption principle, not susceptible to catalyst poisoning and can work normally in low oxygen environment. It supports HART and Modbus RS485 communication, continuous self-diagnosis for optical path contamination and circuit faults. It matches UD10 display unit and EQP fire & gas controller for hazardous area safety interlock.

Specifications

Model: PIRECLA1D1B2CI Brand: Det-Tronics Series: PointWatch Eclipse PIRECL Detection principle: NDIR infrared Range: 0~100% LFL Output: 4-20mA, HART, RS485 Modbus Certification: ATEX, IECEx, SIL2 Housing material: 316 stainless steel Power supply: 24 VDC Application: Offshore platform, refinery, chemical plant, compressor room combustible gas monitoring

Components & Diagnostics

Infrared optical sensing assembly, main signal processing board, status LED indicator, 316SS explosion-proof housing, terminal wiring cavity. Common faults: lens fouling, optical signal attenuation, communication disconnection, zero drift, power supply abnormality.

Product Brief

PIRECLA1D1B2CI infrared gas detector, Det-Tronics PointWatch Eclipse hydrocarbon gas monitoring spare widely used for hazardous zone fire & gas system overhaul and replacement.
