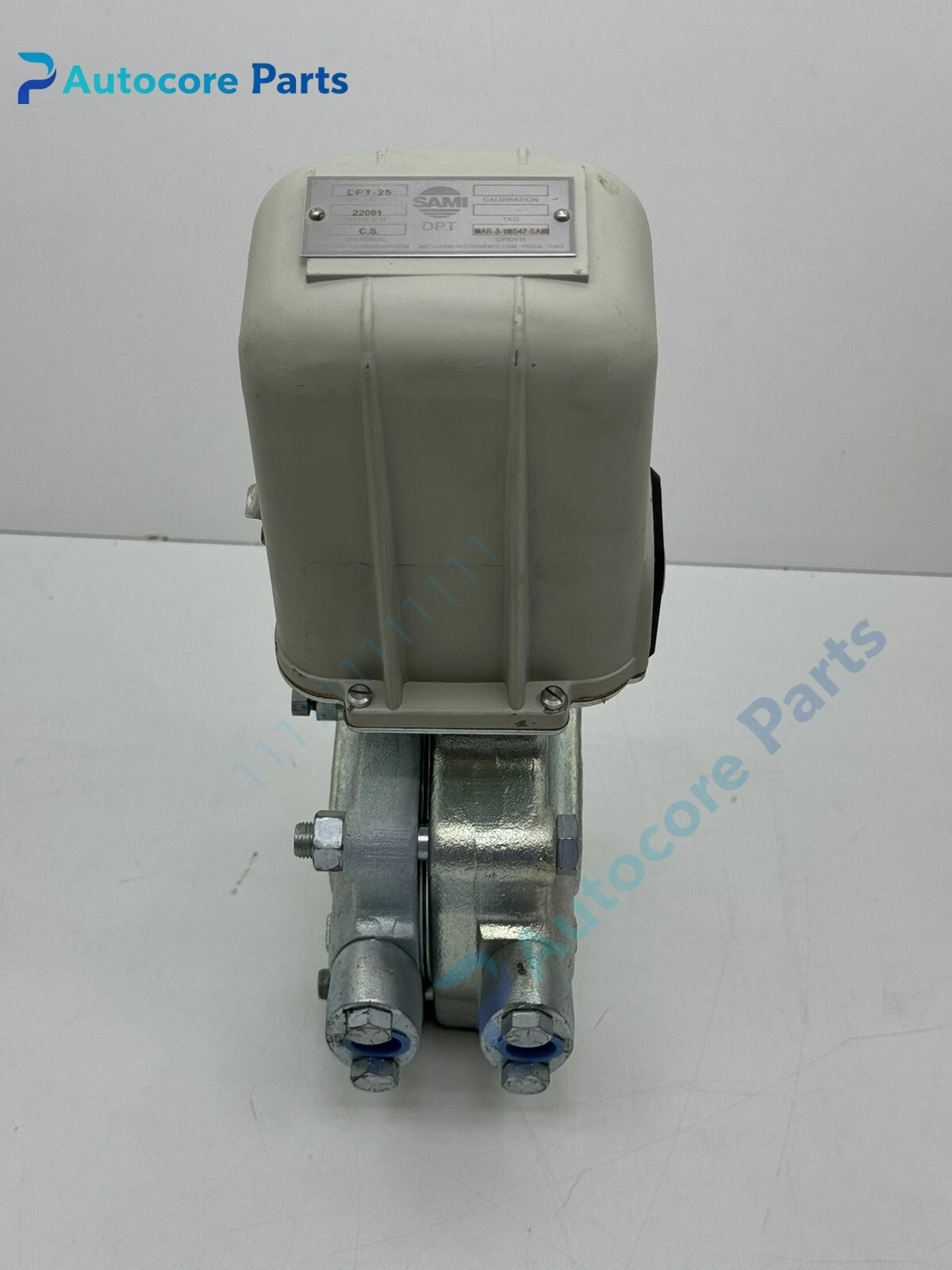

DPT-25 Differential Pressure Transmitter

Feature & Principle

It uses capacitive sensing diaphragm to detect pressure difference between high and low pressure ports. It converts tiny air pressure difference into standard analog signal for PLC or BMS controller. Zero point adjustable, anti-drift design, suitable for long-term monitoring of clean room pressure and filter clogging status.

Specifications

Model: DPT-25 Measured medium: Air, non-corrosive dry gas Supply voltage: 24VDC Output: 4-20mA / 0-10V selectable Pressure range: Low differential pressure range Protection grade: IP54 Mounting: DIN rail or surface mount Application: HVAC, cleanroom, ventilation duct Certification: CE

Components & Diagnostics

Sensing diaphragm, signal processing circuit, terminal block, status LED, pressure barb ports. Common faults: zero drift, signal no change, air leakage at pressure port, output out of range, circuit burnout.

Product Brief

DPT-25 differential pressure transmitter, building automation spare widely used for air conditioning duct, dust filter and pharmaceutical clean room pressure monitoring replacement.
