Eaton Crouse-Hinds VMV3LL/UNV1 LED Luminaire Unit

Module Feature

VMV3LL/UNV1 belongs to Eaton Crouse-Hinds Champ VMV series hazardous area LED high bay luminaire. Rated output 3531 lumens at 29W power consumption, luminous efficiency 122 lm/W, equivalent to traditional 70–100W HID lamp. Universal wide voltage design supports 120-277VAC and 108-250VDC input. Type V wide light distribution lens, heat and impact resistant tempered glass window. Die cast aluminum housing with corrosion resistant coating, NEMA4X rating for dust and water splash protection. Certified for Class I Div 2, Class II Div 2 hazardous classified environments. Long service life LED array, low maintenance requirement. Widely used for chemical plants, grain handling facilities, paint mixing rooms and industrial high bay hazardous site lighting.

Working principle

Built-in LED driver converts universal AC/DC input voltage into constant low-voltage DC power for LED array. LED chips produce white illumination, light beam redistributed through precision optical lens to achieve Type V wide area lighting distribution. Aluminum housing conducts and dissipates heat generated by LED module to maintain stable operating temperature and extend service life.

Onboard components

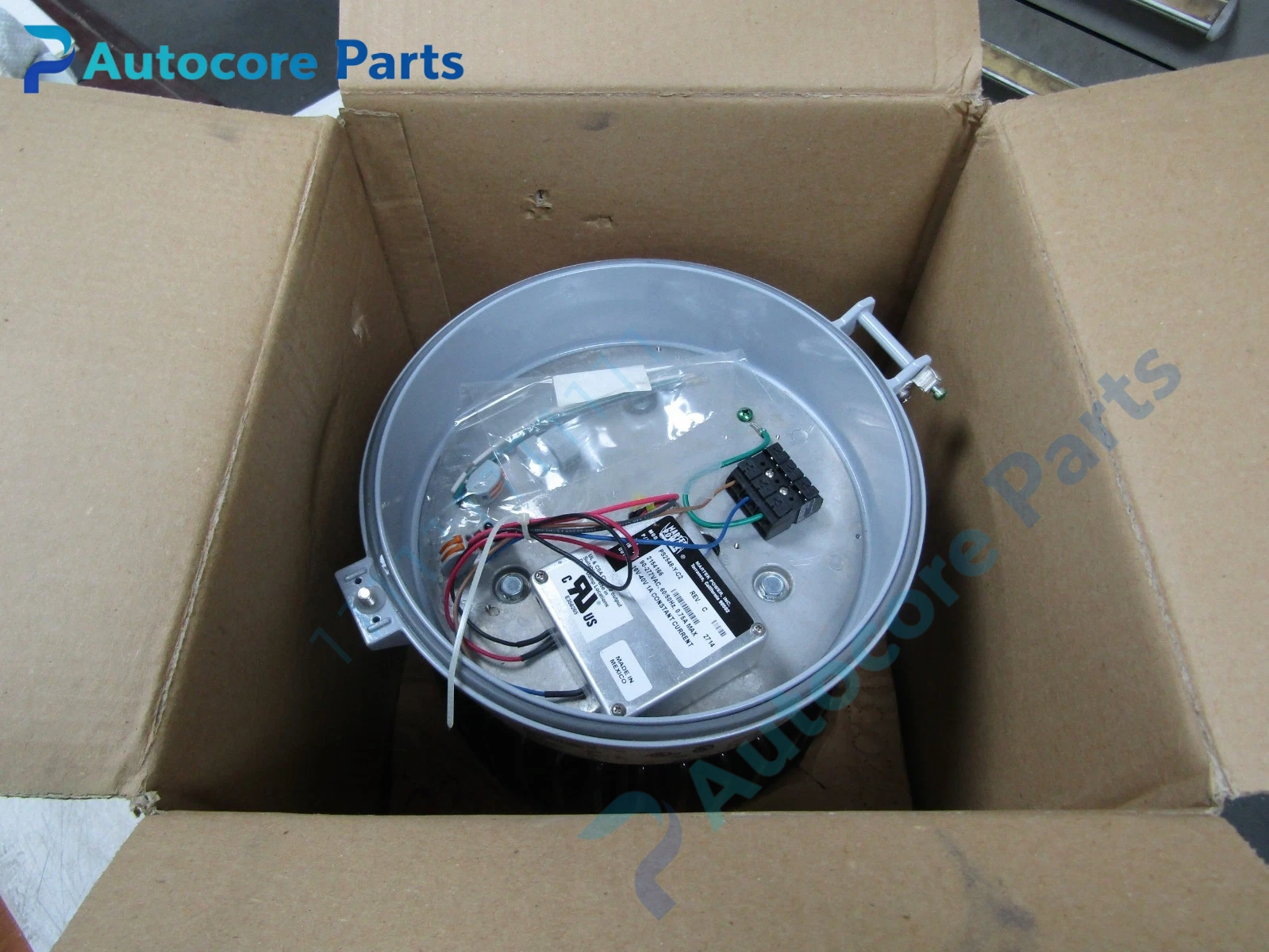

Die cast aluminum luminaire housing, constant current LED driver, LED light array, tempered glass lens, silicone sealing gasket, slipfitter mounting interface, internal wiring terminal block.

LED indicators

No built-in diagnostic LED indicators.

Hardware self-diagnosis

Visual inspection of glass lens for crack or contamination, check housing corrosion and gasket aging, measure input voltage, inspect LED driver abnormal heating.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:VMV3LL/UNV1 Brand:Eaton Crouse-Hinds Device type:Champ VMV Hazardous Area LED High Bay Luminaire Power:29W Lumen output:3531 lm Efficiency:122 lm/W Input voltage:120-277VAC /108-250VDC Optical type:Type V Power factor:＞0.90 Cooling:Passive heat sink natural convection Protection:NEMA4X enclosure, hazardous location certification

Mechanical & Structure

Mounting:Slipfitter mount Protection class:NEMA4X Housing:Die cast aluminum housing, tempered glass lens

Environmental

Operating temperature:-40℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,CE compliant,Class I Div2 / Class II Div2 approved Status: Eaton Crouse-Hinds original Champ VMV LED light fixture for hazardous industrial high bay lighting

Installation

Follow strict hazardous location safety procedure before handling.Mount luminaire via slipfitter bracket on rigid support structure.Connect power cable to internal terminal block, seal cable entry properly to preserve NEMA4X rating. Power on and verify lighting function before site handover.

Interface

Slipfitter mounting interface, cable entry gland port, internal wiring terminal block.

Diagnostic

No light output:loss of supply voltage or LED driver failure. Flickering light:unstable input voltage or degraded LED driver. Water ingress inside fixture:damaged gasket or cracked glass lens.

Product Brief

Eaton Crouse-Hinds VMV3LL/UNV1 Champ VMV hazardous area LED luminaire,29W 3531lm,120-277V universal voltage,NEMA4X,Class I/II Div2 rated,for industrial high bay lighting in explosive dust and gas sites.
