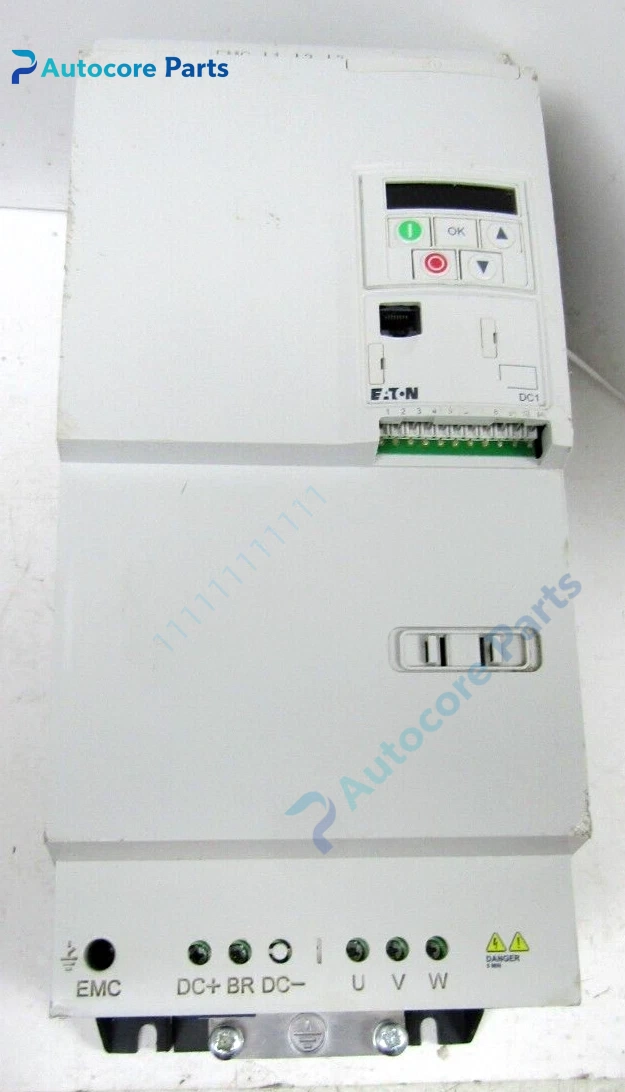

Eaton DC134030NBA20CE1 VFD Inverter Unit

Module Feature

DC134030NBA20CE1 belongs to Eaton PowerXL DC1 compact frequency inverter series. Nominal power 15kW,three-phase 400V power supply,output rated current 30A. Built-in dynamic braking chopper for quick stop applications. Adopts V/F control and SLV sensorless vector control algorithm. Compact metal housing,keypad for local parameter setup,support Modbus RTU communication. Widely used for speed adjustment of fans,pumps,blowers and material handling conveyors.

Working principle

Rectifier converts AC mains power into DC voltage. IGBT inverter bridge converts DC back to adjustable frequency and adjustable voltage AC output. By changing output frequency to adjust motor rotation speed. Braking chopper consumes regenerative energy from motor during deceleration.

Onboard components

Input rectifier module,IGBT power module,DC bus capacitor,braking chopper circuit,control PCB,operation keypad,terminal block,DC bus discharge resistor.

LED indicators

Power LED,run LED,fault alarm LED.

Hardware self-diagnosis

Over voltage,under voltage,over current,over temperature,short circuit and ground fault self-diagnosis,records fault code history.

Programming software

Eaton DC1 PC configuration software for parameter backup,online monitoring and firmware upgrade.

Electrical & Process Parameters

Model:DC134030NBA20CE1 Brand:Eaton Device type:PowerXL DC1 3-phase Variable Frequency Drive Rated power:15kW Input:3×400VAC Output:3×400VAC,30A Control mode:V/F,SLV sensorless vector Communication:Modbus RTU Cooling:Forced air cooling Protection:Overcurrent,overvoltage,undervoltage,overtemp,short circuit,earth fault

Mechanical & Structure

Mounting:Panel mount Protection class:IP20 Housing:Metal enclosure

Environmental

Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Eaton original compact VFD for industrial fan and pump variable speed control

Installation

Follow strict ESD safety procedure before handling.Mount drive inside control cabinet,ensure enough ventilation clearance.Connect main power cable and motor cable to corresponding terminals,set motor nameplate parameters before commissioning.

Interface

Power terminals,motor output terminals,digital/analog I/O terminals,Modbus communication port,keypad interface.

Diagnostic

Drive trip on startup:motor short circuit,wrong motor parameter or cable insulation failure. Over temperature fault:fan failure or insufficient cabinet ventilation. Cannot communicate:wrong Modbus address or wiring error.

Product Brief

Eaton DC134030NBA20CE1 PowerXL DC1 frequency inverter,15kW 3-phase 400V IP20,with built-in brake chopper,used for speed regulation of pumps,fans and conveyors.
