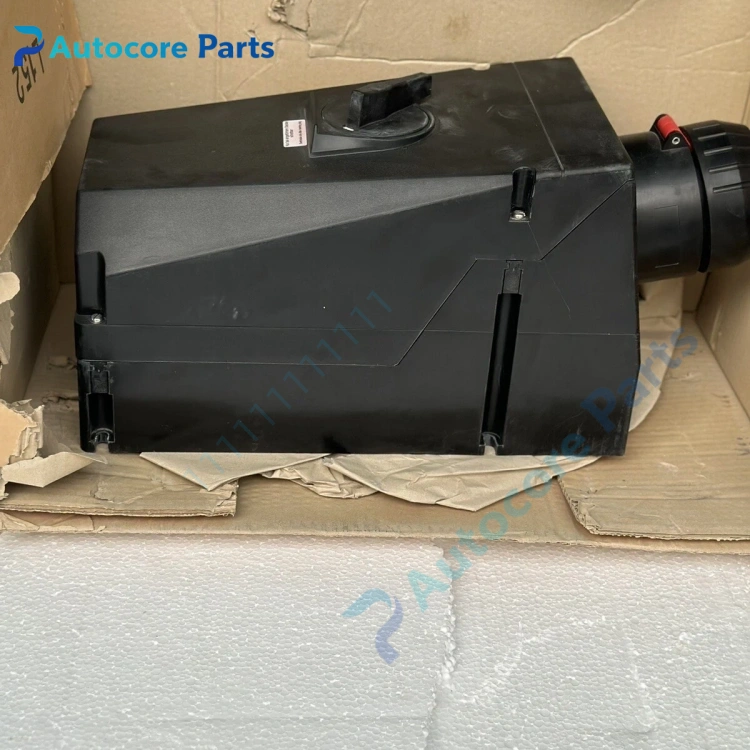

Eaton GHG5154506R3001 CEAG Explosion-Proof Interlock Socket Unit

Feature & Principle

Built-in mechanical interlock switch ensures the socket is dead-front before plug fully engaged. It cannot be disconnected under load, preventing electric arc ignition of flammable gas. The enclosure isolates internal components from hazardous atmosphere for safe power supply connection.

Specifications

Model: GHG5154506R3001 Brand: Eaton (CEAG / Crouse-Hinds) Rating: 125A, 5-pole Voltage: 380-415V AC Standard: IEC 60309 Housing material: Nylon Thread size: M63 Certification: ATEX, IECEx, CE

Components & Diagnostics

Flameproof housing, mechanical interlock switch, contact assembly, cable gland. Common faults: interlock mechanism jam, contact overheating, seal aging, housing crack.

Product Brief

GHG5154506R3001 interlock receptacle, Eaton hazardous area electrical spare widely used for refinery, chemical plant and offshore platform temporary power distribution.
