Eaton HMCP030H1CA02 Motor Circuit Protector Unit

Module Feature

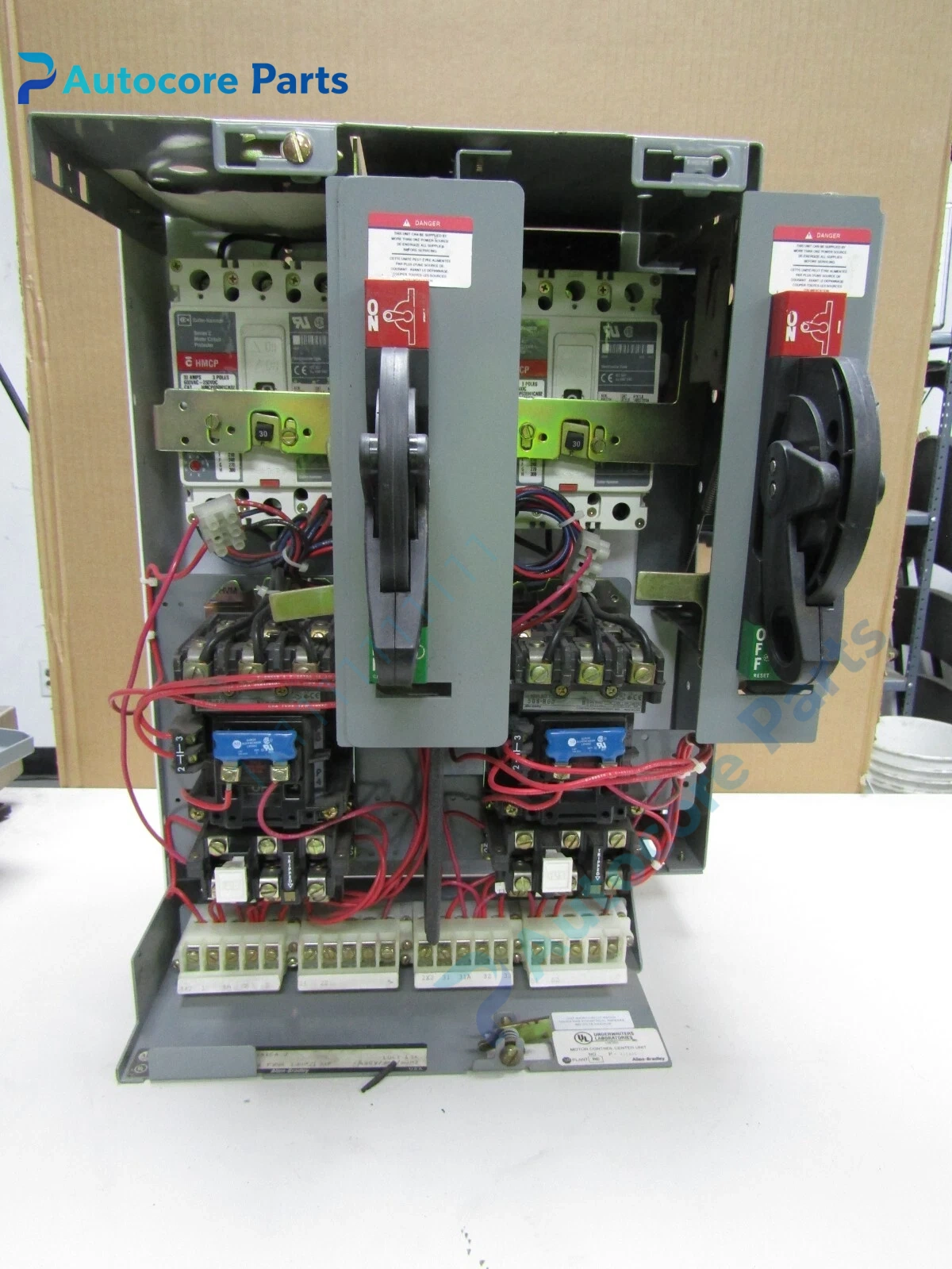

HMCP030H1CA02 belongs to Eaton Series C HMCP motor circuit protector,F frame,3-pole,30A rated continuous current,600VAC /250VDC. It adopts adjustable magnetic instantaneous trip unit with trip range 90~300A,only for short-circuit and locked rotor protection; thermal overload protection needs to be configured separately with motor starter overload relay. Widely used in motor control centers,combined with NEMA motor starters for squirrel cage motor short-circuit protection.

Working principle

Magnetic coil triggers instantaneous trip when large short-circuit or locked-rotor current occurs. Manual operating handle supports ON/OFF/RESET operation. Optional auxiliary contacts can feed breaker trip status to PLC control system. This device does NOT provide thermal overload protection for motors.

Onboard components

Molded insulating housing,adjustable magnetic trip coil,main contact assembly,arc quenching chamber,manual operating handle,line & load terminal blocks.

LED indicators

No built-in LED indicators; status feedback comes from optional auxiliary contact.

Hardware self-diagnosis

Contact wear inspection,insulation resistance test,magnetic trip function test,arc chamber contamination inspection.

Programming software

No dedicated programming software,manual operation and hardwired status feedback.

Electrical & Process Parameters

Model:HMCP030H1CA02 Brand:Eaton Device type:Series C HMCP F-frame Motor Circuit Protector Pole:3P Rated current:30A Rated voltage:600VAC,250VDC Trip:Adjustable magnetic instantaneous trip,90~300A Frequency:50/60Hz Cooling:Natural convection cooling Protection:Instantaneous short circuit & locked rotor protection; overload protection requires separate thermal overload relay

Mechanical & Structure

Mounting:Panel / MCC bucket mounting Protection class:IP20 front face Housing:Glass-filled thermoplastic molded case

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Eaton HMCP series motor circuit protector for MCC motor short circuit protection

Installation

Follow strict ESD safety procedure before handling.Mount protector firmly inside MCC bucket or control panel.Connect line side and load side power lugs with correct torque.Adjust magnetic trip range according to motor locked rotor current before power commissioning.

Interface

Line side terminal,load side terminal,optional auxiliary contact terminal.

Diagnostic

Nuisance trip:excessive inrush current or improper magnetic trip setting. Fail to trip:damaged magnetic coil or contact welding. Arc discharge:short circuit fault or loose wiring terminal.

Product Brief

Eaton HMCP030H1CA02 Series C F-frame 3-pole 30A motor circuit protector,600VAC rated,adjustable magnetic trip 90-300A,used together with motor starter for three-phase motor short-circuit and locked rotor protection in MCC.
