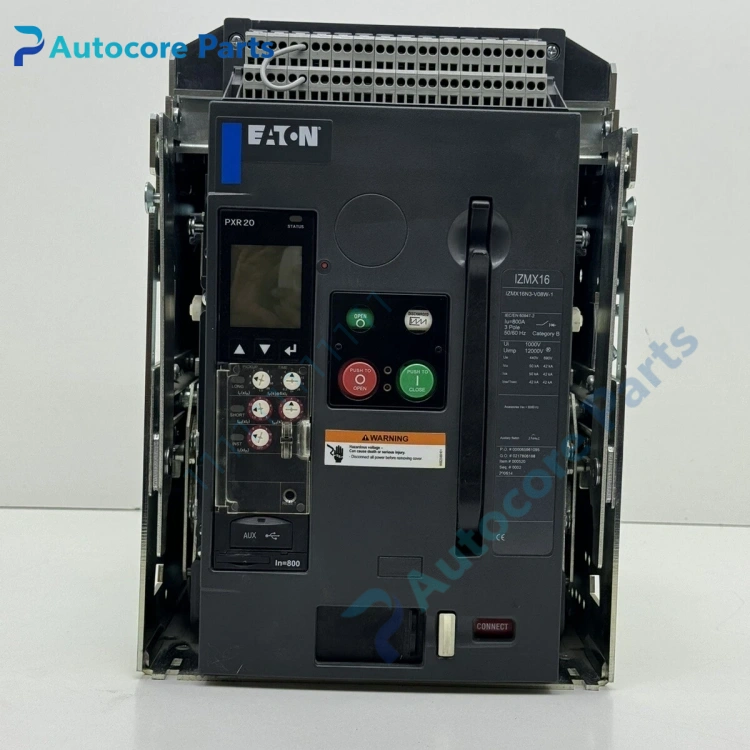

Eaton IZMX-16N3-V08W-1 Air Circuit Breaker Unit

Feature & Principle

This intelligent air circuit breaker uses PXR electronic trip unit, provides overload, short circuit, earth fault and phase imbalance protection. The withdrawable structure allows hot withdrawal and maintenance without power cut for the whole cabinet, supports communication upload of electrical parameters and fault records.

Specifications

Model: IZMX-16N3-V08W-1 Brand: Eaton (Moeller) Series: IZMX16 Pole: 3P Rated current: 800A Icu@440V: 50kA Mounting: Withdrawable Trip unit: PXR electronic protection Voltage: 400/415V AC Protection: IP30 (cabinet installed) Certification: IEC, CE

Components & Diagnostics

Electronic trip unit, main contact assembly, spring energy storage mechanism, drawer base, current transformer, communication interface. Common faults: trip false alarm, contact overheating, energy storage failure, communication offline.

Product Brief

IZMX-16N3-V08W-1 air circuit breaker, Eaton low voltage power spare widely used for factory main distribution cabinet and power plant auxiliary power protection.
