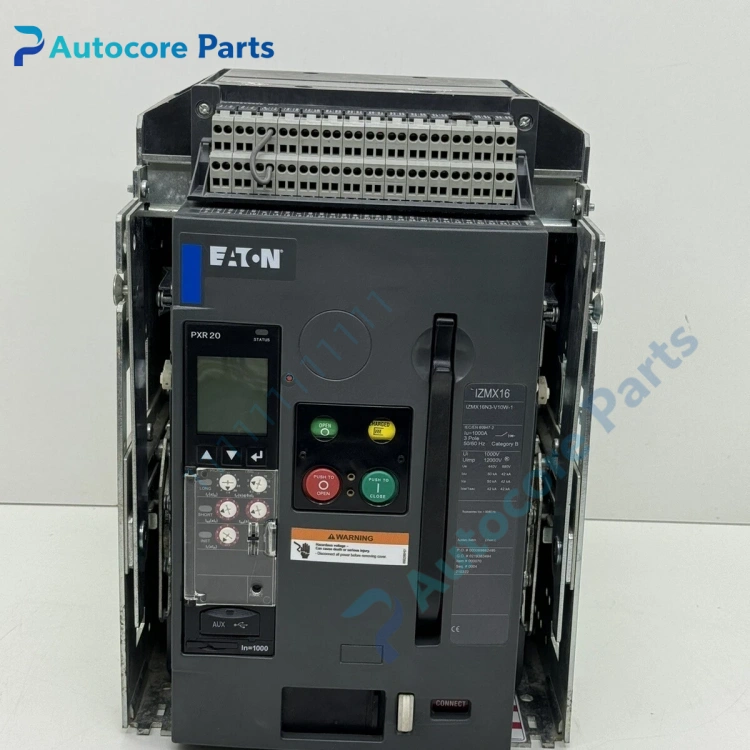

Eaton IZMX16N3-V10W-1 Air Circuit Breaker Unit

Feature & Principle

It adopts stored energy spring operating mechanism. The electronic PXR trip unit monitors current signals, triggers tripping under overload, short circuit and earth fault conditions to protect downstream cables and loads. Withdrawable design supports rack isolation and hot maintenance.

Specifications

Model: IZMX16N3-V10W-1 Brand: Eaton Pole: 3P Rated current: 1000A Structure: Withdrawable Icu @440V: 50kA Trip unit: PXR electronic release Certification: IEC 60947, RoHS, CE

Components & Diagnostics

Spring operating mechanism, main contact assembly, arc extinguishing chamber, PXR trip unit, secondary terminal block. Common faults: spring failure, contact ablation, trip unit misoperation, position indication abnormal.

Product Brief

IZMX16N3-V10W-1 air circuit breaker, Eaton distribution spare widely used for industrial plant, data centre and commercial building main incoming switchgear.
