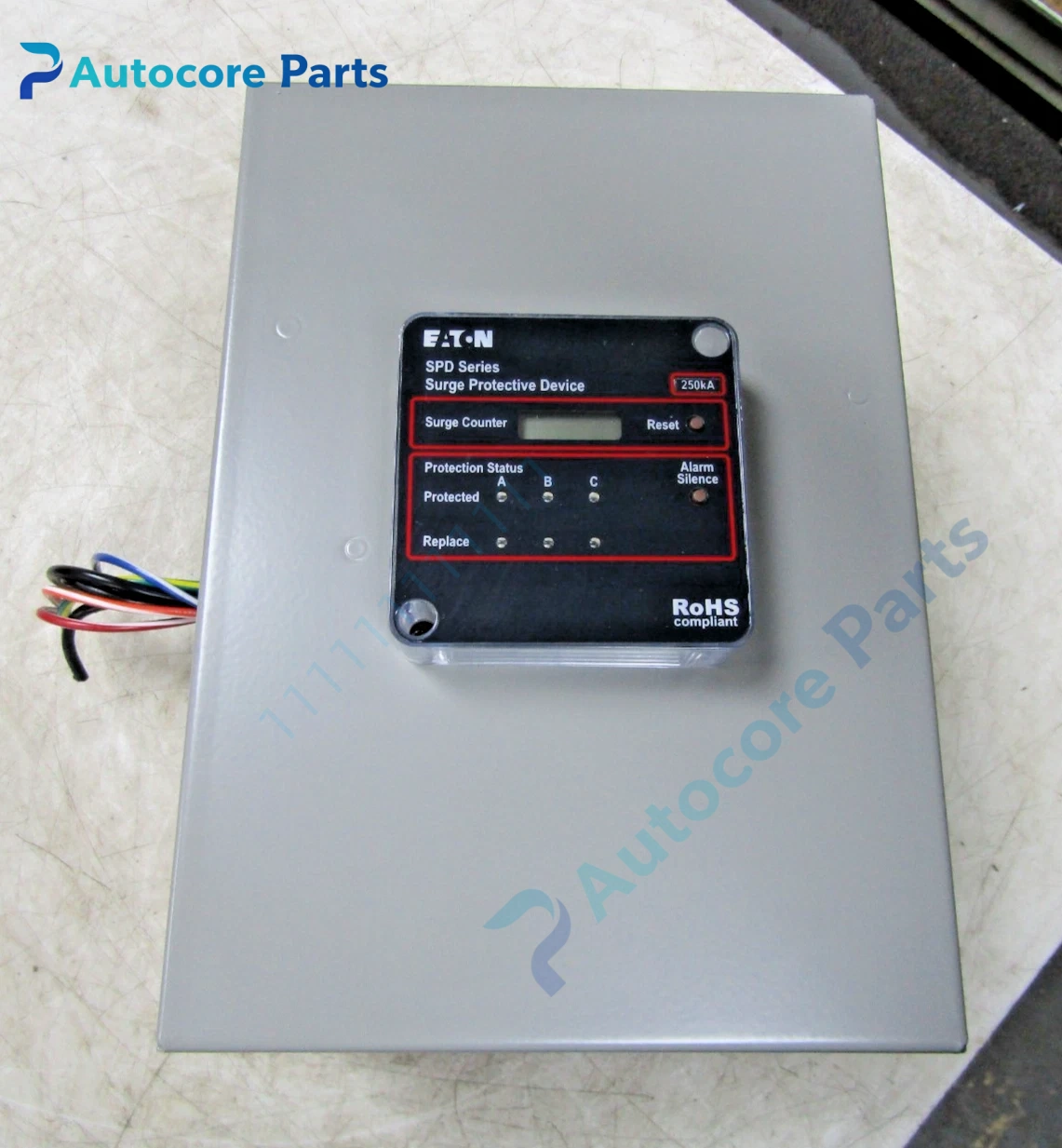

Eaton SPD250480D3K Surge Protection Device Unit

Module Feature

SPD250480D3K belongs to Eaton SPD series side-mounted surge protection device. It is Type 2 SPD with 250kA surge capacity for each phase, designed for 480V delta three-wire plus ground power system. Standard package with built-in surge counter to record total surge events. NEMA 1 metal enclosure for indoor wall side mounting. Thermally protected MOV components will disconnect automatically upon overheating to avoid fire risk. Widely applied for commercial and industrial power distribution panels, MCC, switchgear protection against lightning and switching transient surges.

Working principle

Under normal operating voltage, the metal oxide varistor (MOV) maintains high impedance and does not affect normal power supply. When high voltage surge occurs, MOV impedance drops rapidly to divert surge current to ground, clamping transient voltage to safe level. The built-in counter accumulates each surge hit for equipment health monitoring. Thermal isolation mechanism cuts off failed MOV to prevent hazard.

Onboard components

Thermally protected MOV modules, surge counter PCB, status monitoring circuit, metal NEMA1 enclosure, wiring terminal block, indicator window, ground bus bar.

LED indicators

System status LED, protection status LED.

Hardware self-diagnosis

Internal thermal monitoring, module failure detection, surge counting, real-time protection health status feedback.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:SPD250480D3K Brand:Eaton Device type:SPD Series External Side Mount Surge Protection Device Surge rating:250kA per phase System voltage:480V Delta (3W+G) Enclosure:NEMA1 Nominal discharge current:20kA Compatible frequency:50/60Hz Cooling:Natural convection cooling Protection:Thermal disconnect, overvoltage transient suppression

Mechanical & Structure

Mounting:External side wall mount Protection class:NEMA1 Housing:Painted metal enclosure

Environmental

Operating temperature:-40℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL1449 4th edition,CE compliant Status: Eaton original SPD series surge protective device for industrial power distribution transient protection

Installation

Follow strict high voltage safety procedure before handling.Mount enclosure vertically on solid wall close to main electrical panel.Connect phase and ground conductors to terminals, minimize wire length. Check LED status after power on, read surge counter periodically for maintenance.

Interface

Power phase terminals, ground terminal, wall mounting holes, status viewing window.

Diagnostic

Protection fault LED on: one or more MOV modules failed, SPD lost protection function, need replacement. Surge counter keeps increasing: frequent transient events on power grid, need to check upstream grounding system.

Product Brief

Eaton SPD250480D3K SPD series surge protection device,250kA,480V delta 3W+G,NEMA1 enclosure with surge counter,indoor side wall mount,for industrial panelboard transient surge and lightning protection.
