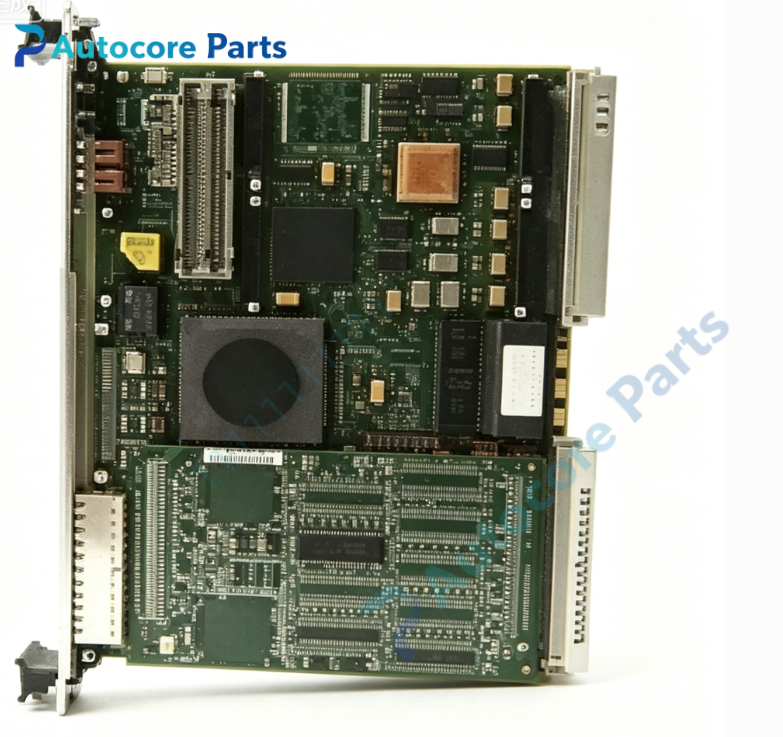

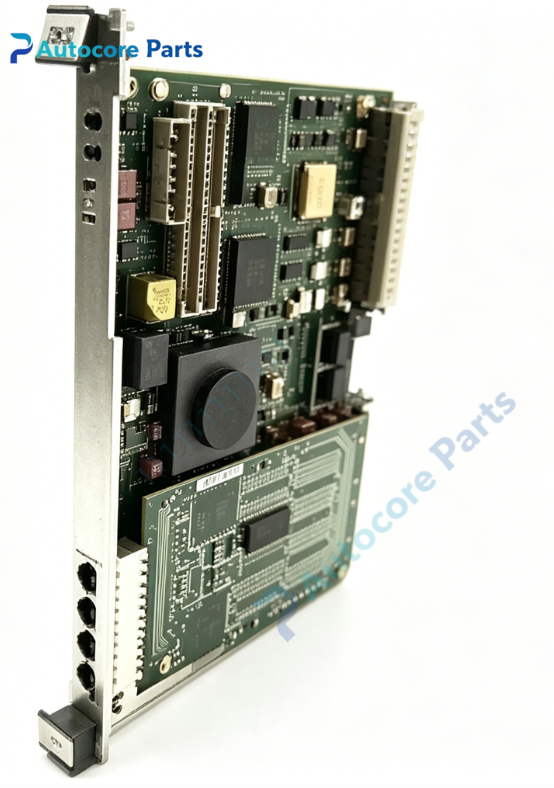

Emerson 10332‑00716 PCB Assembly

Technical Specifications

Model：10332‑00716

Brand：Emerson

Product Type：Control PCB Assembly

Applicable System：Emerson industrial distributed control system

Supply Voltage：5V, ±12VDC auxiliary DC power supply

Interface：Backplane bus edge connector, multi‑pin signal interface, internal flat‑cable interconnection port

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, communication link and fault diagnostic status

Built‑in Function：System bus data transmission, communication signal processing, signal routing and forwarding, channel status monitoring, fault self‑diagnosis, fault alarm feedback to main control unit

Working Temperature：0℃ ~ +55℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Card cage plug‑in installation

Weight：0.58kg

Product Brief:

10332‑00716 is legacy PCB assembly manufactured by Emerson. It is a plug‑in control circuit board for industrial distributed control system. It completes bus data transmission and communication signal processing, realizes internal signal routing and data forwarding between system modules. On‑board LED provides visual diagnosis for power, communication link and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of legacy Emerson control equipment. Please confirm hardware revision, backplane matching and firmware version before purchase. Strict ESD anti‑static protection shall be performed during installation.
