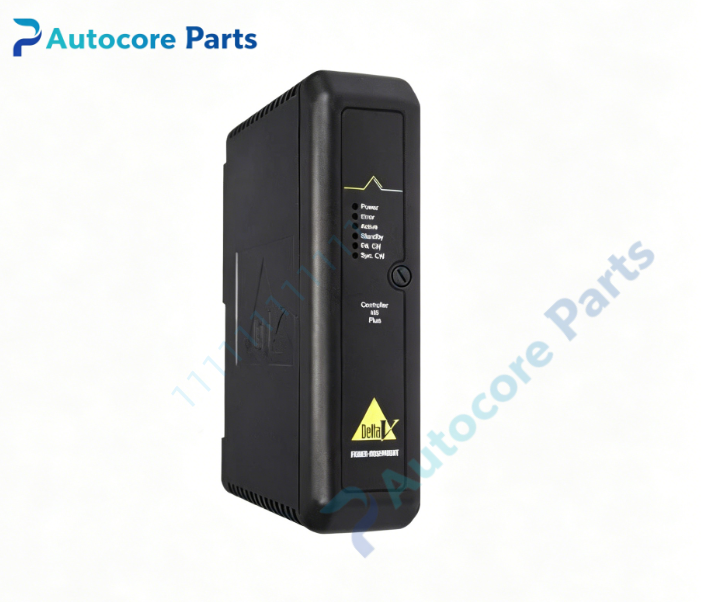

Emerson 12P1509X052 Analog Combined Module

Technical Specifications

Model：12P1509X052

Brand：Emerson

Product Type：Analog Combined I/O Module

Applicable System：Emerson DeltaV DCS system, petrochemical and thermal power plant control cabinet

Supply Voltage：24VDC

Interface：DeltaV rack backplane connector, field analog signal terminal block

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply, channel status and fault diagnostic status

Built‑in Function：Field analog signal acquisition, analog control output, signal isolation filtering, A/D‑D/A conversion, data interaction with DeltaV controller, channel fault self‑diagnosis

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：DeltaV rack slot‑in installation

Weight：0.45kg

Product Brief:

12P1509X052 is legacy mixed analog combined I/O module for Emerson DeltaV DCS system. It integrates analog input and analog output functions on one single card. It collects analog signals from field transmitters, meanwhile outputs analog control signals to drive valves and actuators. Isolation filtering design improves anti‑interference performance of field loops. Process data and control commands are transmitted between module and DeltaV main controller via rack backplane bus. On‑board LED gives visual feedback of power, channel running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of petrochemical and thermal power plant DeltaV DCS equipment. Please confirm hardware revision and rack compatibility before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
