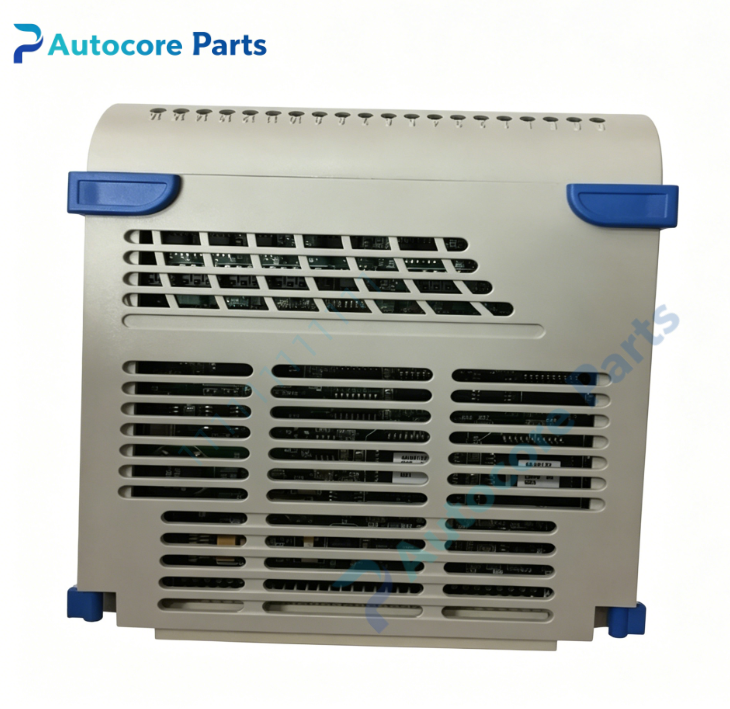

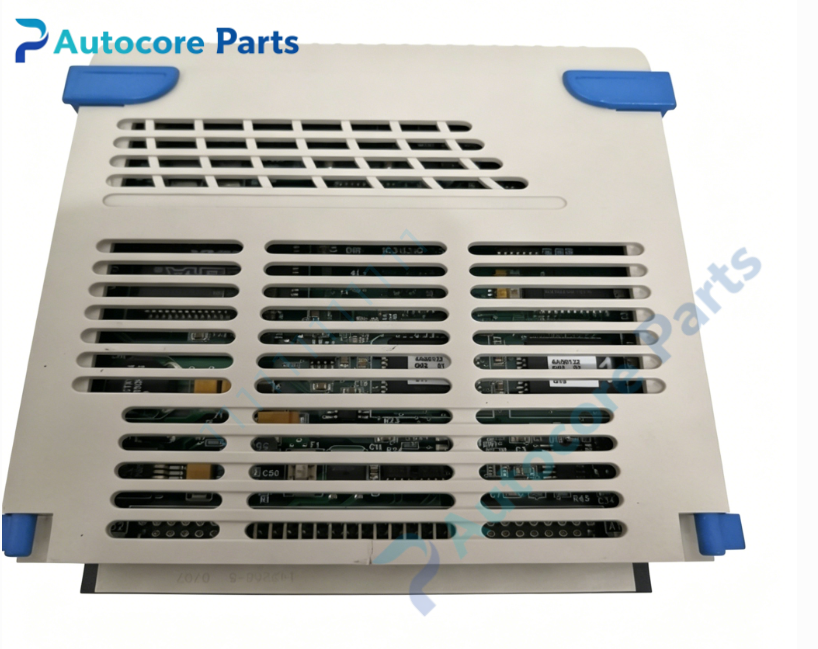

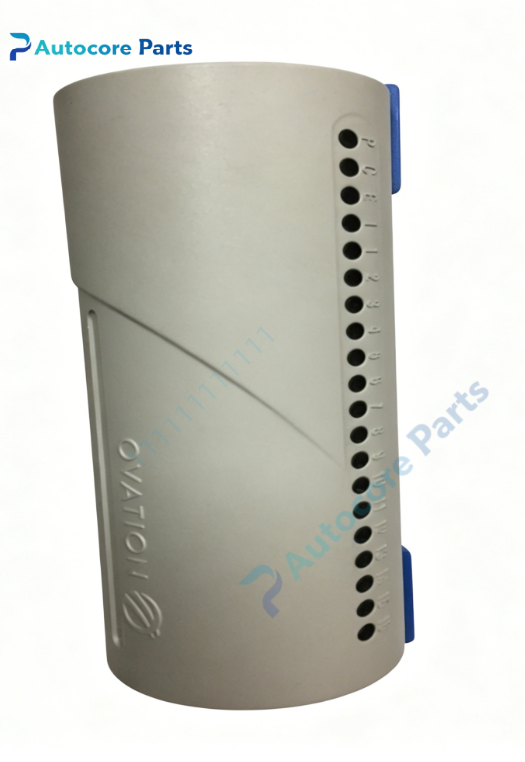

Emerson 13A0054G04 Ovation I/O Termination Board

Technical Specifications

Model：13A0054G04

Brand：Emerson

Product Type：Ovation I/O Termination Board

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant control cabinet

Supply Voltage：Pass‑through signal terminal board, no independent power supply

Interface：Backplane signal connector for mating Ovation I/O card, field wiring screw terminals, cable connection port

Common Revision：Multiple hardware revisions available

Status Indicator：Without on‑board indicator lamp

Built‑in Function：Field‑side signal wiring transfer, signal filtering, surge suppression, isolating field wiring and I/O card, convenient for on‑site wiring debugging and card replacement

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Standard cabinet rail‑mount installation

Weight：0.32kg

Product Brief:

13A0054G04 is Emerson Ovation series I/O termination board. It serves as the intermediate wiring conversion unit between Ovation I/O card and field‑side process signals. It transfers field analog and discrete signals to corresponding I/O module through backplane connector. Integrated surge‑suppression and signal‑filtering circuits reduce interference from industrial field. When replacing I/O cards, there is no need to re‑arrange field wiring, improving on‑site maintenance efficiency. This is EOL discontinued spare part, widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and matching I/O card model before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement.
