Technical Specifications

Model：13A0066G02

Brand：Emerson

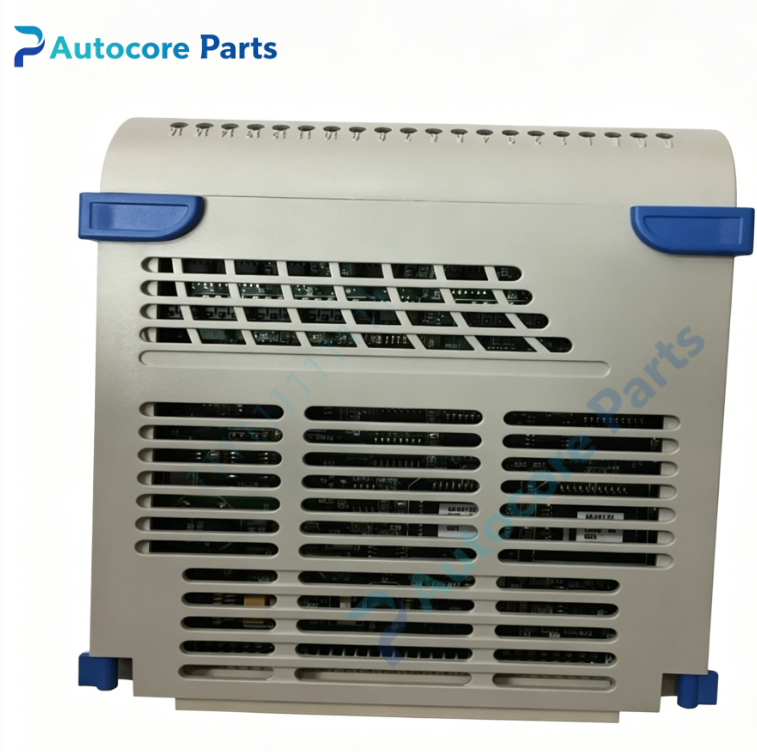

Product Type：Speed Monitor Module

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant turbine control cabinet

Supply Voltage：24VDC

Interface：Backplane connector for Ovation rack, speed probe pulse signal input terminal, signal filtering circuit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, channel status and fault diagnostic indication

Built‑in Function：Pulse signal acquisition from magnetic speed probe, real‑time shaft rotating‑speed calculation, overspeed threshold comparison & alarm output, signal filtering, channel fault diagnosis, data interaction with Ovation controller, improved anti‑interference performance compared with G01 version

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.35kg

Product Brief:

13A0066G02 is Emerson Ovation series speed monitor module, upgraded successor of 13A0066G01, specially designed for steam turbine shaft speed monitoring in power plant. It receives pulse signals from magnetic speed probes installed on turbine shaft, converts pulse frequency value into actual rotating‑speed data and transmits to Ovation controller. It supports overspeed threshold judgment, can trigger alarm signal when rotating‑speed exceeds set value. Optimized signal filtering circuit strengthens suppression of field electromagnetic interference. On‑board LED gives visual feedback of power, channel running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation turbine control system. Please confirm hardware revision and matching speed probe parameter before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
