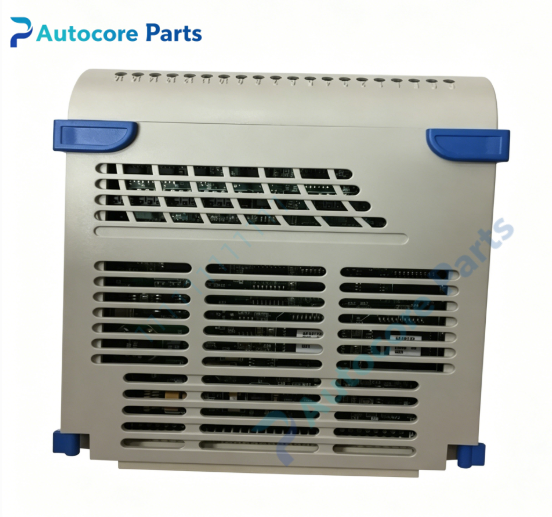

Emerson 13A0066G04 Ovation Speed Monitor Module

Technical Specifications

Model：13A0066G04

Brand：Emerson

Product Type：Speed Monitor Module

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant turbine control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, multi‑channel speed probe pulse signal input terminals, signal filtering circuit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, channel status and fault diagnostic indication

Built‑in Function：Multi‑channel magnetic speed probe pulse signal acquisition, real‑time shaft rotating‑speed calculation, overspeed threshold comparison & alarm output, enhanced signal filtering, channel fault diagnosis, signal line break detection, data interaction with Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.36kg

Product Brief:

13A0066G04 is Emerson Ovation series speed monitor module, follow‑up iteration version of 13A0066G01 and 13A0066G02, widely applied in steam turbine shaft speed monitoring for thermal power plants. It receives multi‑group pulse signals from magnetic speed probes on turbine shaft, converts pulse frequency into actual rotating‑speed value and uploads data to Ovation controller. It supports overspeed threshold judgment and alarm output, adds signal cable break detection function. Optimized filtering circuit greatly improves anti‑interference performance under complex electromagnetic environment of power plant. On‑board LED gives visual feedback of power, channel running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation turbine control system. Please confirm hardware revision and matching speed probe parameter before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
