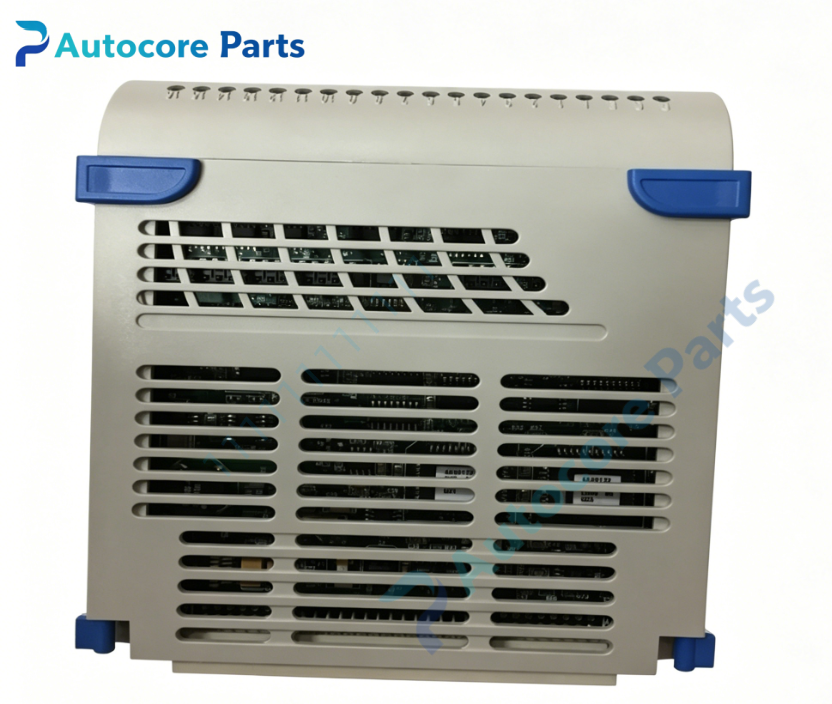

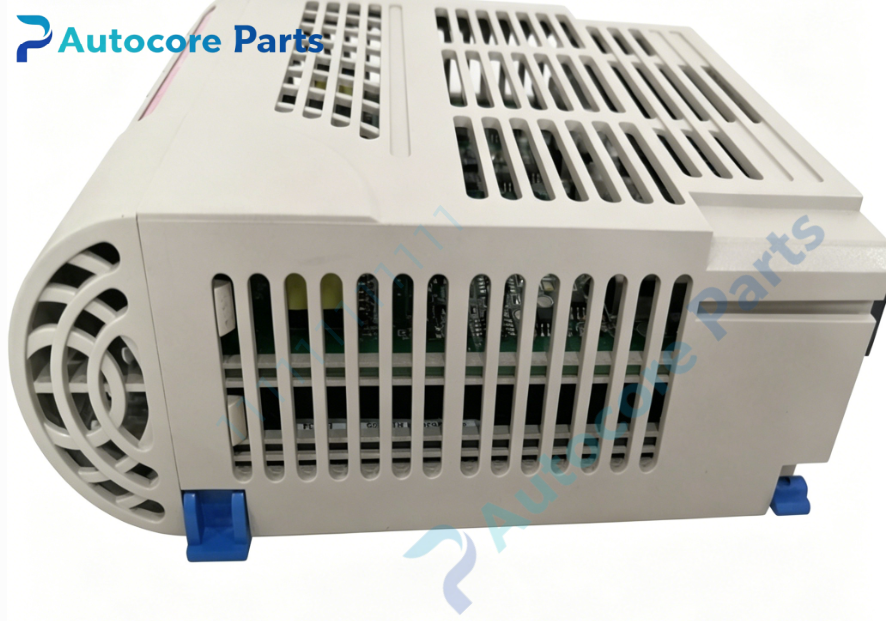

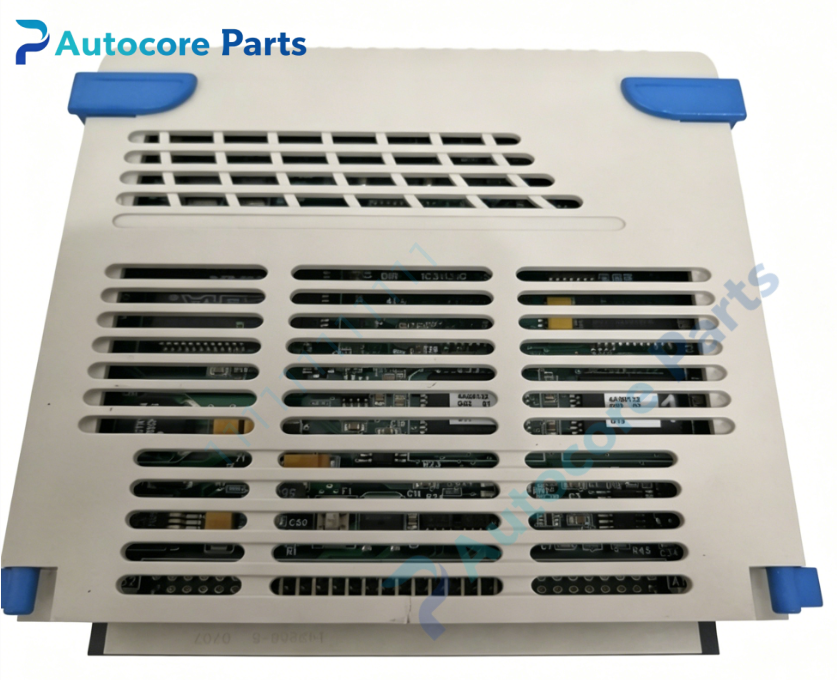

Emerson 13A0069G01 Ovation Analog Output Module

Technical Specifications

Model：13A0069G01

Brand：Emerson

Product Type：Analog Output Module(AO)

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant boiler and turbine control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, multi‑channel analog signal output terminal, signal isolation circuit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, channel status and fault diagnostic indication

Built‑in Function：Multi‑channel 4‑20mA standard analog signal output, output signal read‑back detection, channel open‑circuit fault diagnosis, signal galvanic isolation, output‑value latching under communication failure, data interaction with Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.33kg

Product Brief:

13A0069G01 is Emerson Ovation series analog output module. It converts digital control commands issued by Ovation controller into standard 4‑20mA analog current signals for field regulating valves, actuators and other field control equipment. It supports output read‑back function to monitor actual output value in real‑time. Open‑circuit diagnosis can alarm when field actuator loop is broken. Signal isolation improves anti‑interference capability in complex power‑plant electromagnetic environment. When communication fails, output value can maintain latch status to avoid uncontrolled field action. On‑board LED gives visual feedback of power, channel running and fault conditions. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and field actuator signal requirement before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
