Technical Specifications

Model：13A0070H17

Brand：Emerson

Product Type：Digital Input Module(DI)

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant boiler and turbine control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, field 24VDC switch signal input terminal, optocoupler isolation circuit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, channel status and fault diagnostic indication

Built‑in Function：Multi‑channel 24VDC discrete signal acquisition, optocoupler galvanic isolation, input signal filtering, channel fault diagnosis, field contact status upload, data interaction with Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.33kg

Product Brief:

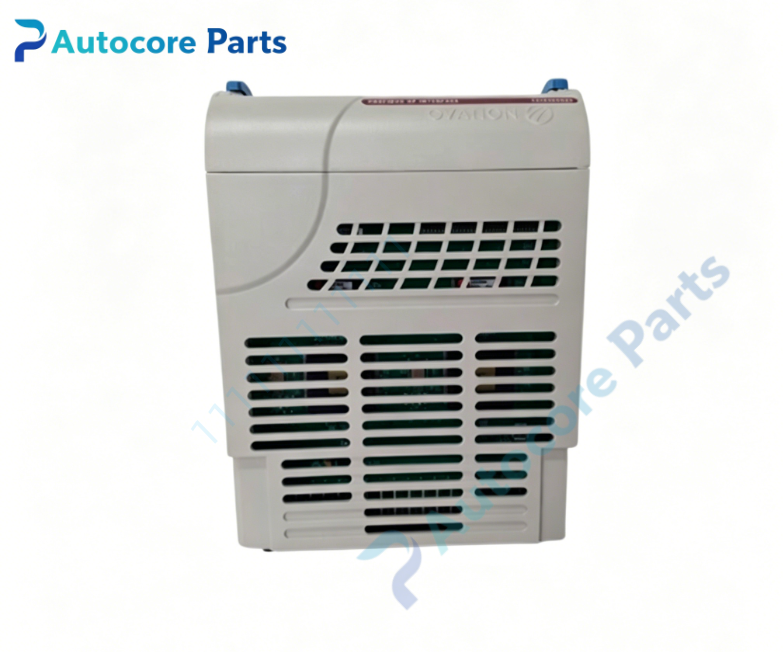

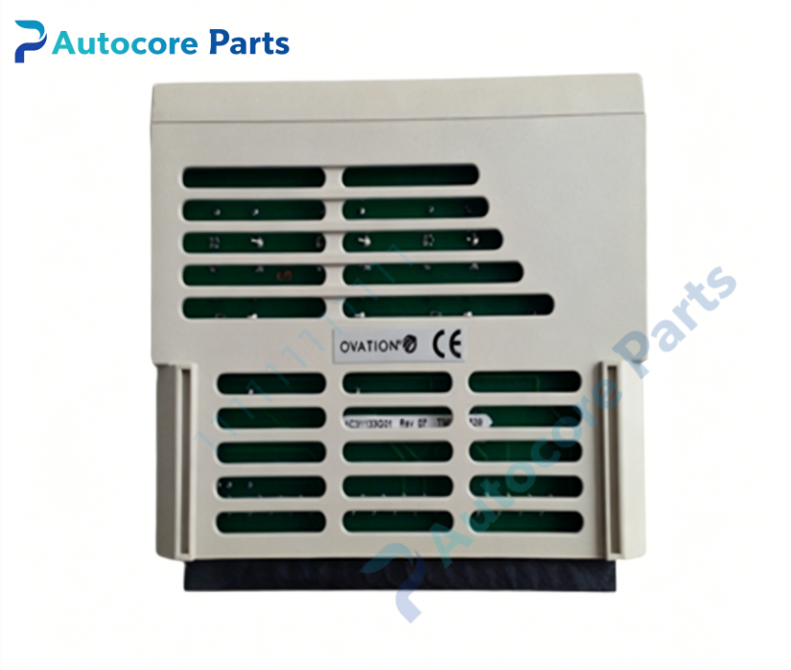

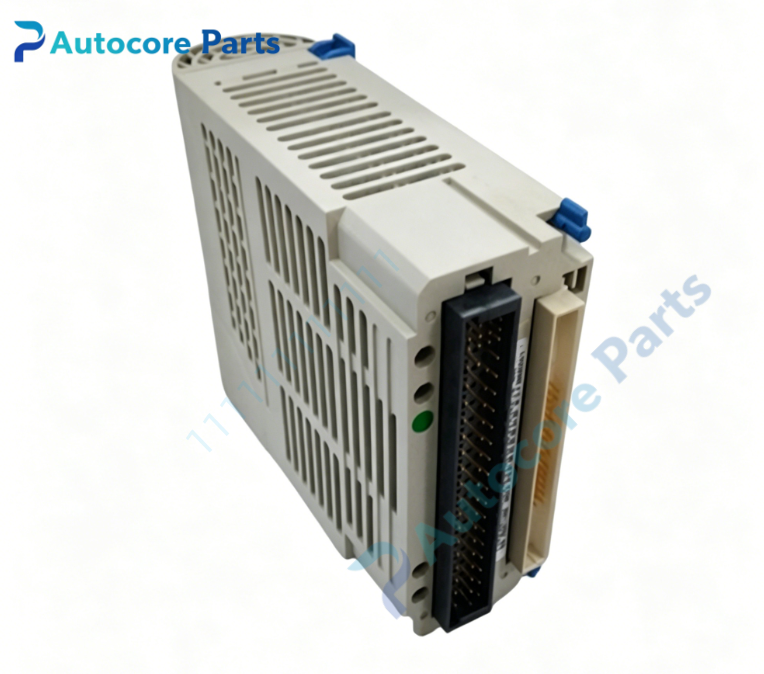

13A0070H17 is Emerson Ovation series digital input module. It is responsible for collecting 24VDC on‑off status signals from field relays, limit switches and auxiliary contacts. Optocoupler isolation separates field circuit from DCS internal circuit to suppress ground interference. Input filter circuit filters out field pulse interference, improving signal stability. Each channel corresponds to status LED for convenient on‑site inspection. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and field signal voltage before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
