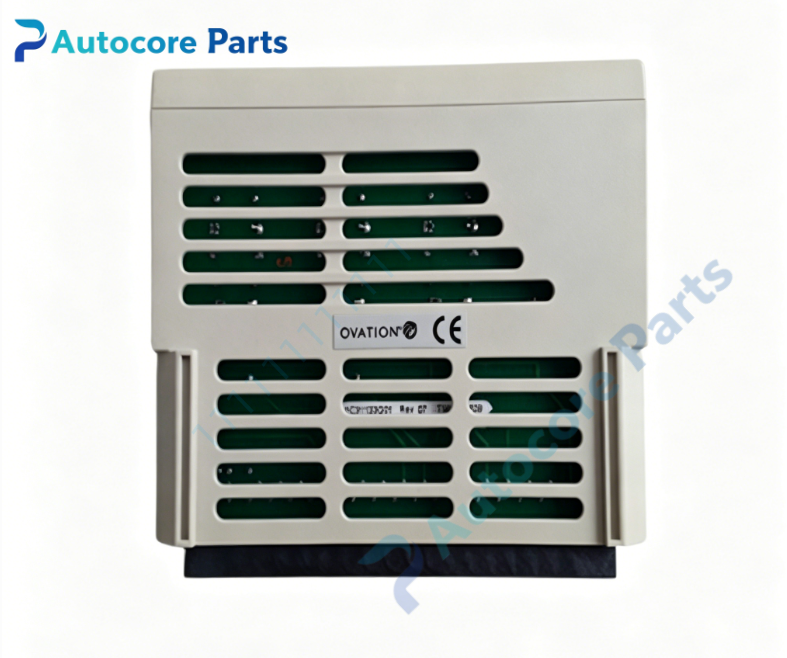

Emerson 13A0072G01 Ovation Digital Output Module

Technical Specifications

Model：13A0072G01

Brand：Emerson

Product Type：Digital Output Module(DO)

Applicable System：Emerson Ovation DCS distributed control system, thermal power plant boiler and auxiliary control cabinet

Supply Voltage：24VDC

Interface：Ovation rack backplane connector, relay contact output terminals, surge‑absorption circuit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power, channel status and fault diagnostic indication

Built‑in Function：Multi‑channel relay contact on‑off output, field equipment drive, surge suppression, channel fault diagnosis, contact state feedback reading, data interaction with Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Ovation standard rack slot‑in installation

Weight：0.34kg

Product Brief:

13A0072G01 is Emerson Ovation series relay‑type digital output module. It receives control commands from Ovation controller and outputs dry‑contact relay signals to drive field solenoid valves, auxiliary relays and other switching devices. Built‑in surge‑absorption circuit suppresses reverse‑electromotive‑force interference from inductive loads. Each channel has corresponding status LED for convenient site inspection. It supports contact state read‑back for channel health monitoring. This is EOL discontinued spare part,widely used for maintenance and renovation of thermal power plant Ovation DCS system. Please confirm hardware revision and field load parameter before purchase. Strict ESD anti‑static protection shall be followed during installation and replacement。
