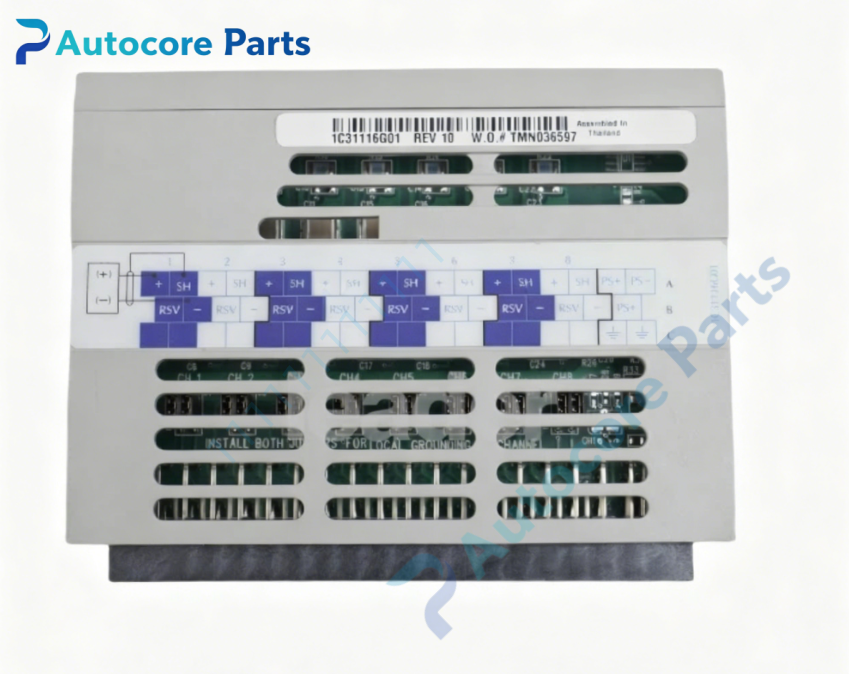

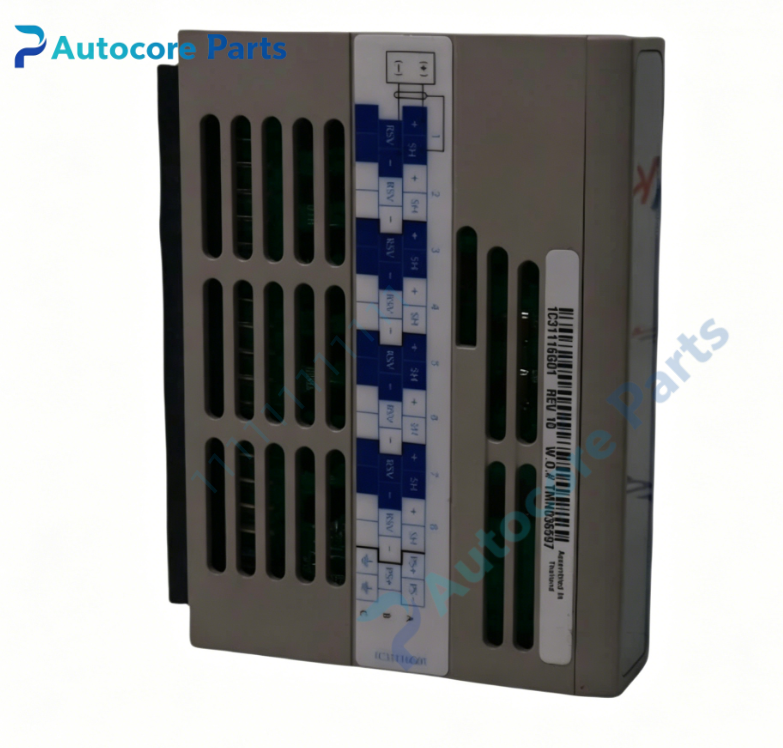

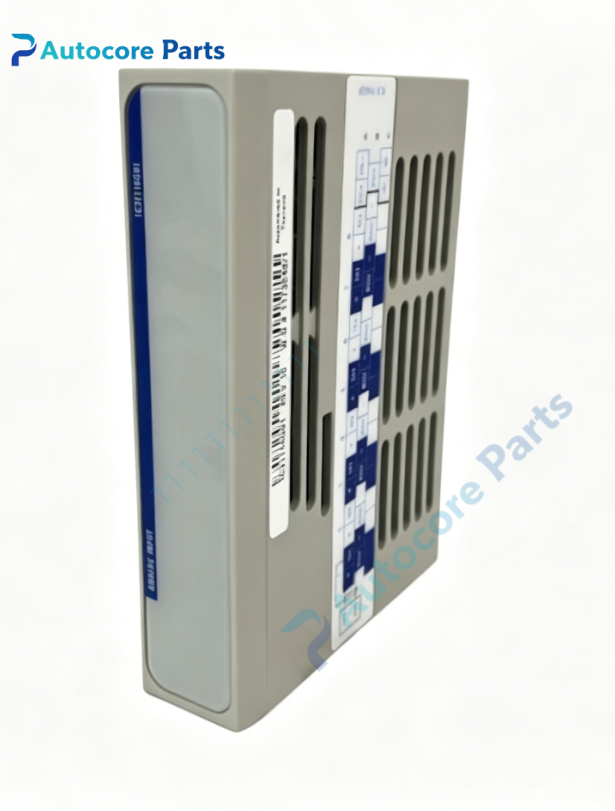

Emerson 1C31116G01 Ovation Personality Module

Technical Specifications

Model：1C31116G01

Brand：Emerson

Product Type：Personality Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31113 series analog input module

Function：Hardware signal range configuration for AI channels

Installation：Plug‑in install on 1C31113 series I/O base

Common Revision：G01 hardware revised version

Status Indicator：No separate LED indicator works with host module LED

Built‑in Function：Set analog input signal range hardware configuration parameter matching channel setting cooperate with main AI module complete field signal acquisition

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.12kg

Product Brief:

1C31116G01 is Emerson Ovation personality module G01 hardware revision for 1C31113 series analog input modules

It is plugged onto I/O base together with main AI module completes hardware signal range definition for analog input channels

This personality module defines hardware measuring range for each input channel simplifies field range switching without modifying main module

It cooperates with 1C31113 series AI module completes millivolt voltage signal acquisition for field sensors and transmitters

No extra software configuration required after correct physical installation host module reads range parameter automatically

Works together with main module over‑voltage protection surge interference suppression and hot‑swap features

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
