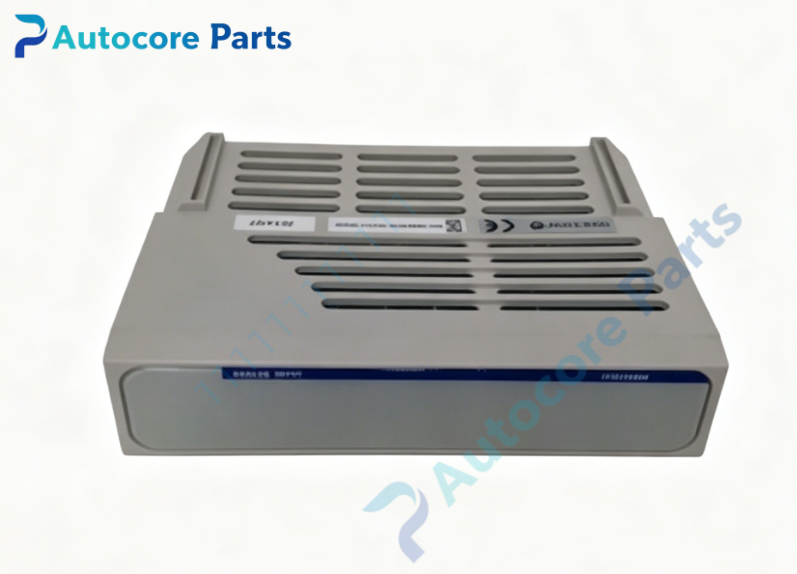

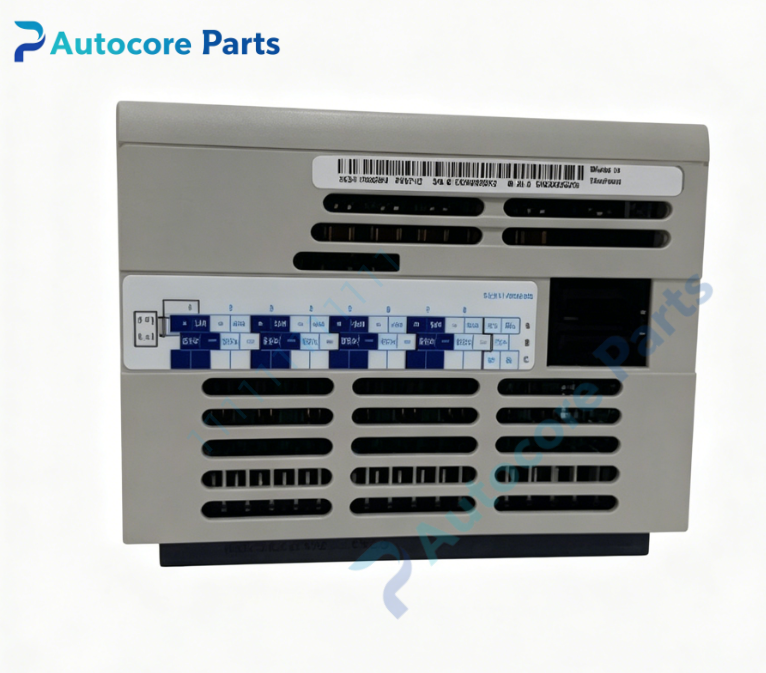

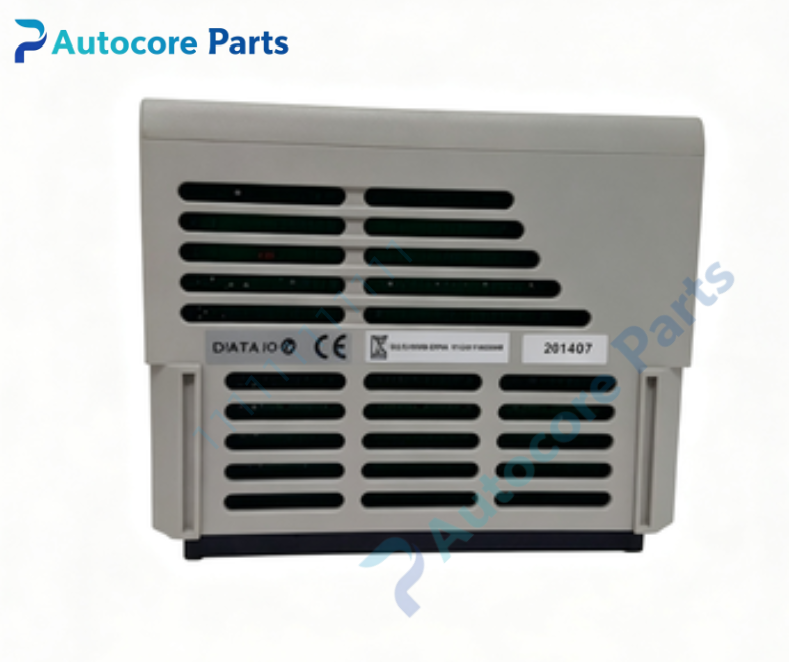

Emerson 1C31116G03 Ovation Personality Module

Technical Specifications

Model：1C31116G03

Brand：Emerson

Product Type：Locally Powered Current Input Personality Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31113 series analog input module

Function：Hardware configuration for locally powered 4‑20mA current analog input channels

Installation：Plug‑in install on 1C31113 series I/O base

Common Revision：G03 hardware revised version

Status Indicator：No separate LED indicator works with host module LED

Built‑in Function：Hardware channel configuration for external powered 4‑20mA transmitter signals cooperate with main AI module complete field current signal acquisition

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.12kg

Product Brief:

1C31116G03 is Emerson Ovation personality module G03 hardware revision for 1C31113 series analog input modules

It is plugged onto I/O base together with main AI module defines hardware channel for locally powered 4‑20mA current input signals

This personality module adapts external powered 4‑20mA transmitters widely used for industrial process measurement

It cooperates with 1C31113 series AI module completes field current signal acquisition without internal loop power supply

No extra software configuration required after correct physical installation host module reads range parameter automatically

Works together with main module over‑voltage protection surge interference suppression and hot‑swap features

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
