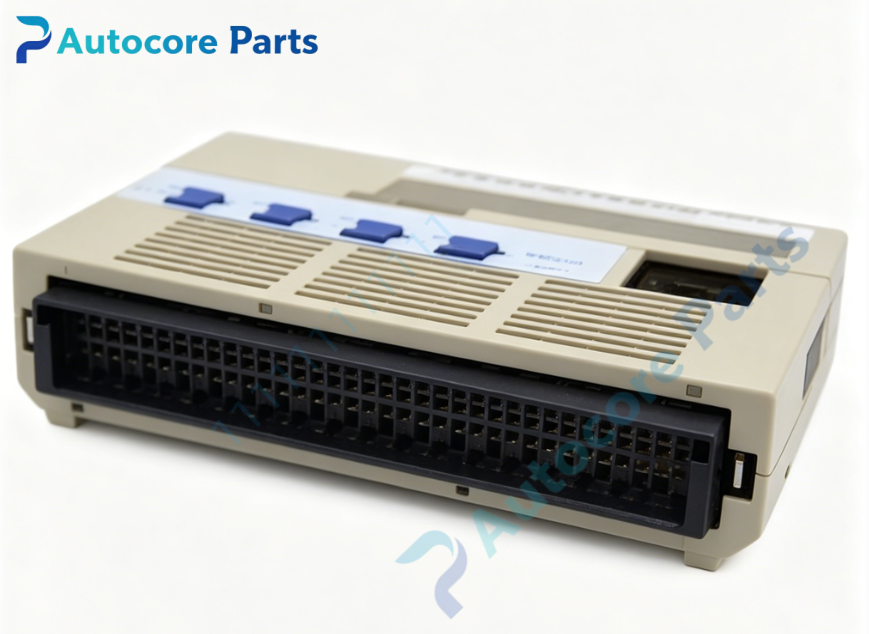

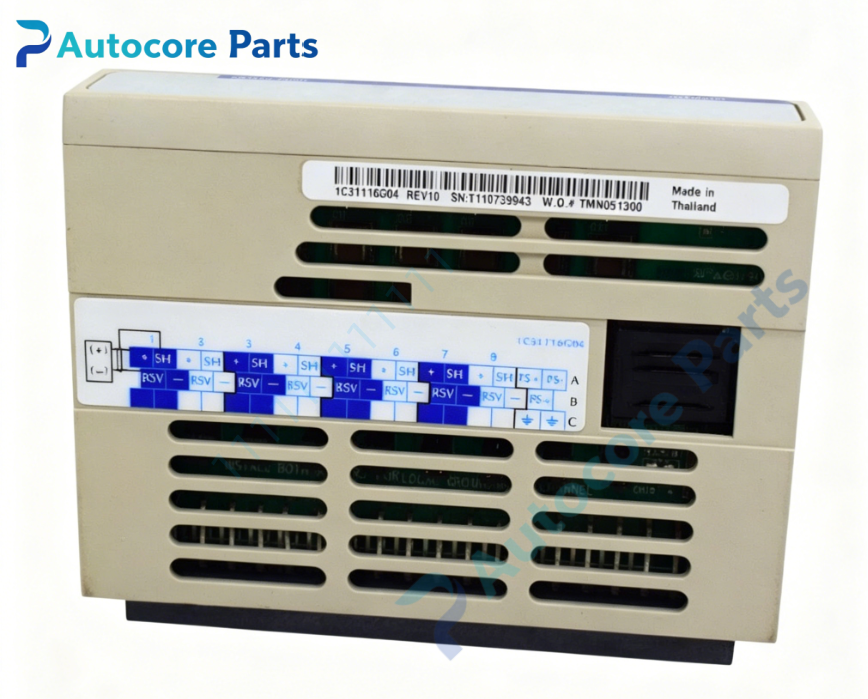

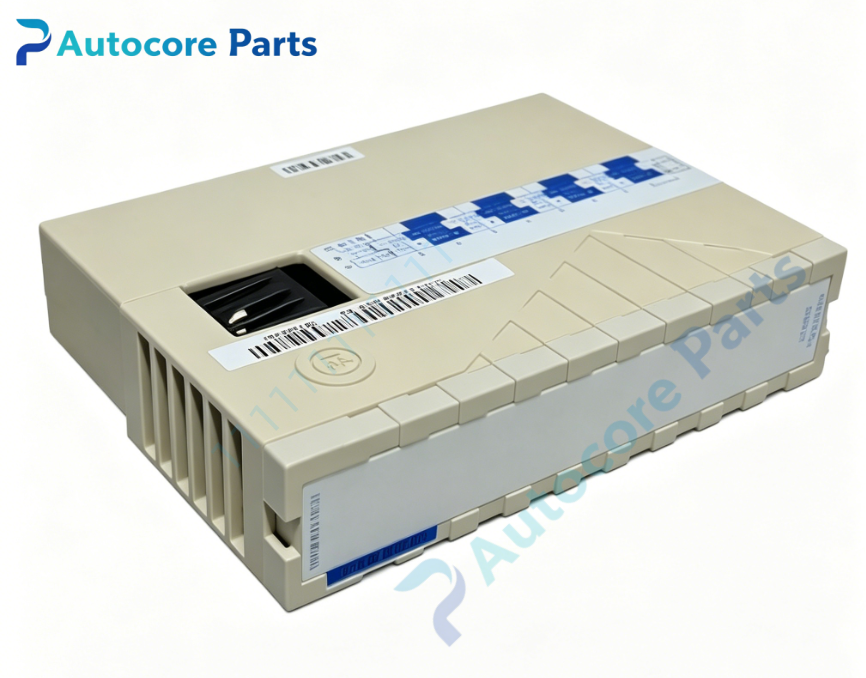

Emerson 1C31116G04 Ovation Personality Module

Technical Specifications

Model：1C31116G04

Brand：Emerson

Product Type：Voltage Input Personality Module With Cold‑Junction Compensation

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31113 series analog input module

Function：Hardware voltage input configuration built‑in cold‑junction temperature sensor for thermocouple signal compensation

Installation：Plug‑in install on 1C31113 series I/O base

Common Revision：G04 hardware revised version

Status Indicator：No separate LED indicator works with host module LED

Built‑in Function：Hardware channel configuration for voltage signals collect cold‑junction temperature data cooperate with main AI module complete thermocouple signal acquisition

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.12kg

Product Brief:

1C31116G04 is Emerson Ovation personality module G04 hardware revision for 1C31113 series analog input modules

It is plugged onto I/O base together with main AI module provides hardware voltage channel setting and integrated cold‑junction compensation sensor

This personality module is specially designed for thermocouple measuring applications eliminates extra external cold‑junction compensation equipment

It cooperates with 1C31113 series AI module completes millivolt‑level thermocouple signal acquisition for industrial thermal process monitoring

No extra software configuration required after correct physical installation host module reads range and temperature parameter automatically

Works together with main module over‑voltage protection surge interference suppression and hot‑swap features

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
