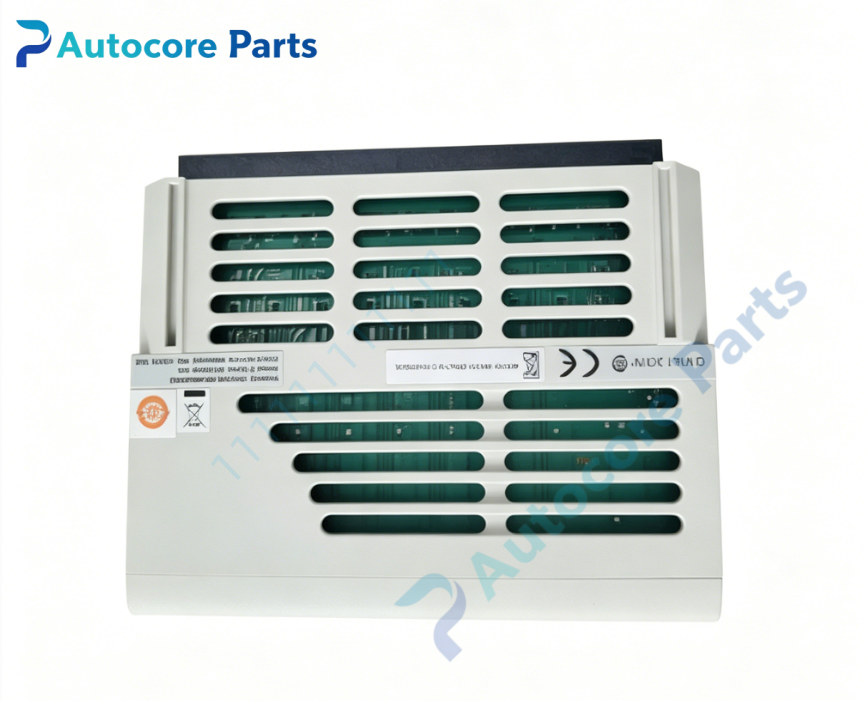

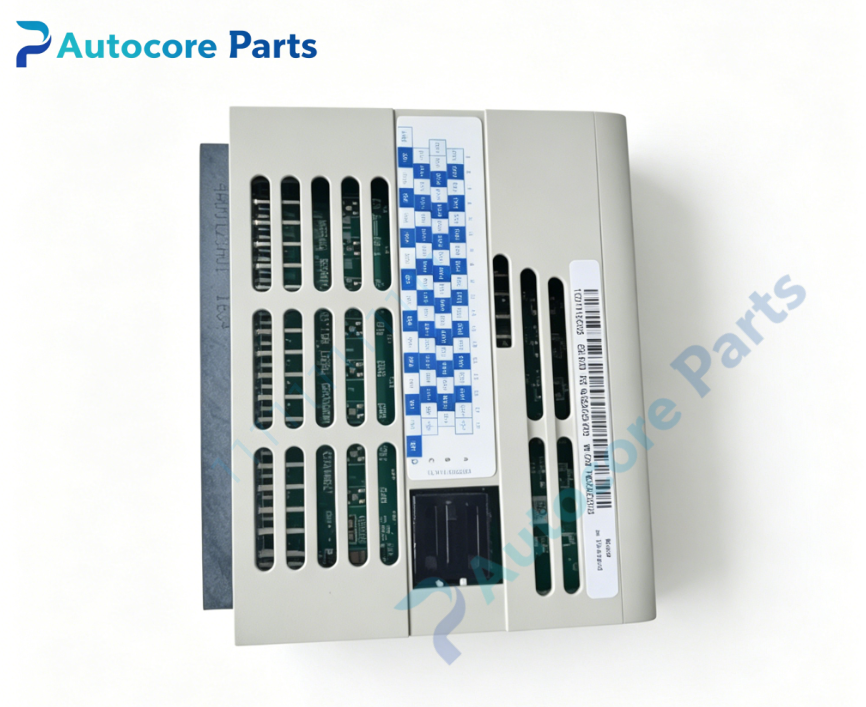

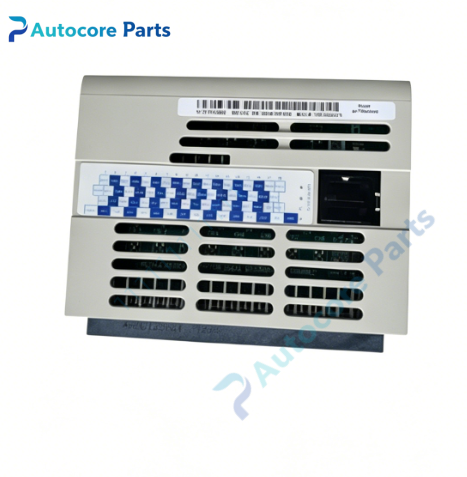

Emerson 1C31116G05 Ovation Personality Module

Technical Specifications

Model：1C31116G05

Brand：Emerson

Product Type：Loop‑Powered 4‑20mA Current Input Personality Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31113 series analog input module

Function：Hardware configuration for loop‑powered 4‑20mA analog input channels built‑in transmitter loop supply

Installation：Plug‑in install on 1C31113 series I/O base

Common Revision：G05 hardware revised version

Status Indicator：No separate LED indicator works with host module LED

Built‑in Function：Hardware channel configuration for loop‑powered 4‑20mA transmitters provide field loop power cooperate with main AI module complete field current signal acquisition

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.12kg

Product Brief:

1C31116G05 is Emerson Ovation personality module G05 hardware revision for 1C31113 series analog input modules

It is plugged onto I/O base together with main AI module defines hardware channel for loop‑powered 4‑20mA current input signals

This personality module integrates loop power supply for two‑wire transmitters no extra external power needed for field instrument loop

It cooperates with 1C31113 series AI module completes field current signal acquisition for pressure flow and level transmitters

No extra software configuration required after correct physical installation host module reads range parameter automatically

Works together with main module over‑voltage protection surge interference suppression and hot‑swap features

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
