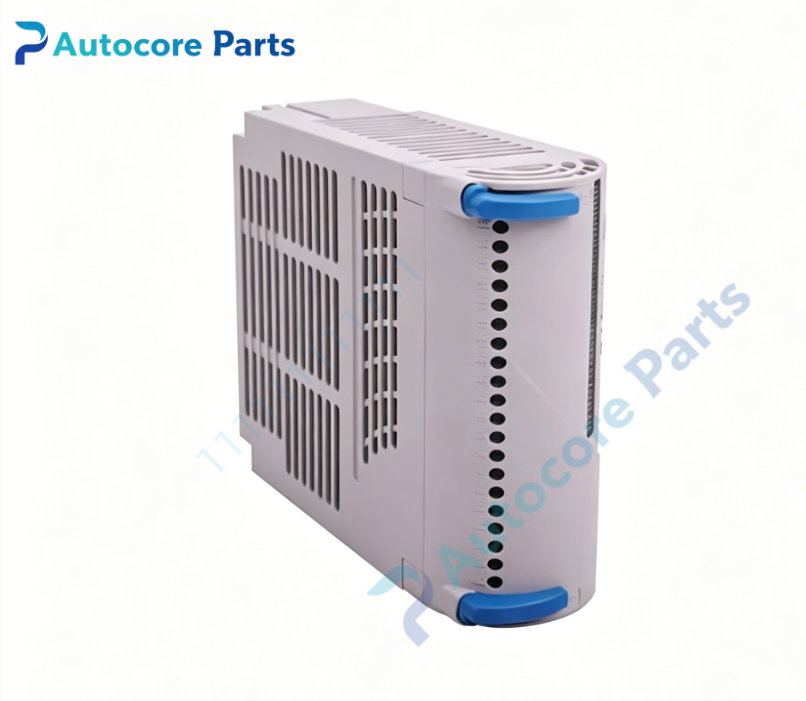

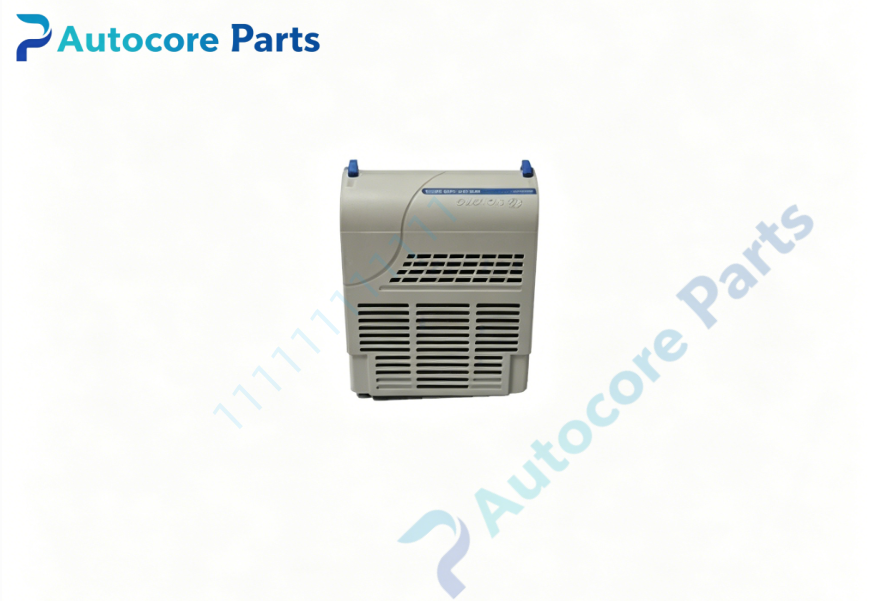

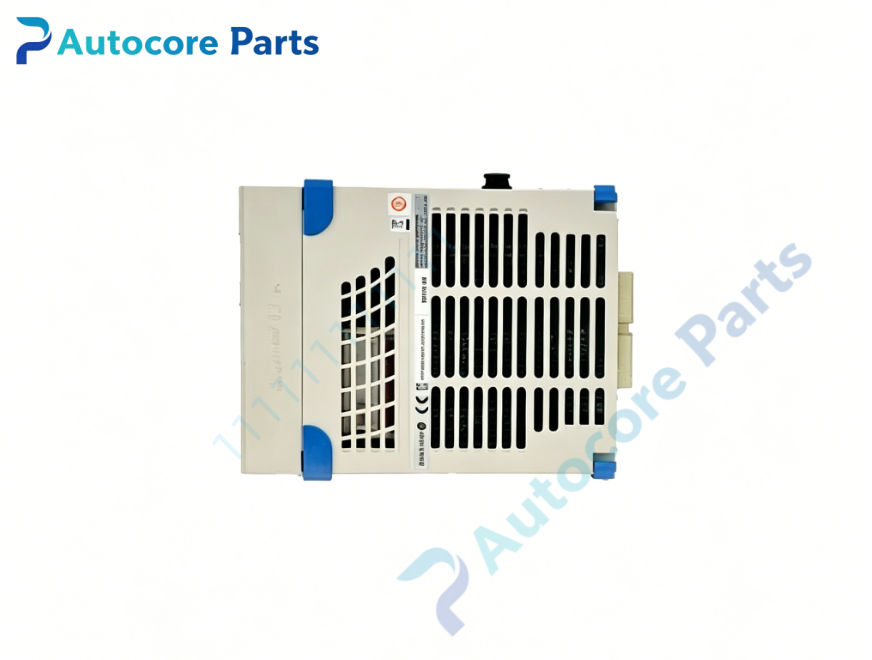

Emerson 1C31122G01 Ovation 16‑Channel Digital Output Electronics Module

Technical Specifications

Model：1C31122G01

Brand：Emerson

Product Type：16‑Channel Digital Output Electronics Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity：16 solid‑state discrete output channels

Output voltage range：5VDC‑60VDC

Load current：Up to 2A per channel

Response time：Less than 1 millisecond

Switching type：Solid‑state non‑contact switching

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G01 hardware revised version

Status Indicator：On‑board LED for power status channel status channel fault indication

Built‑in Function：Discrete control signal output short‑circuit protection surge interference suppression channel fault diagnosis support module hot‑swap output drive for field relays solenoids and actuators

Working Temperature：‑40℃ ~ +70℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.15kg

Product Brief:

1C31122G01 is Emerson Ovation digital output electronics module G01 hardware revision with 16 channels solid‑state switching design

It is plugged onto matched I/O base unit provides discrete drive signals for field relays solenoid valves and discrete actuators

It supports 5‑60VDC field load each channel bears maximum 2A load current response time below 1ms satisfies fast discrete control demands

Built‑in short‑circuit protection and surge suppression improve anti‑interference performance under complex plant electromagnetic environment

On‑board LED indicators display power channel working and fault status convenient for on‑site troubleshooting

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
