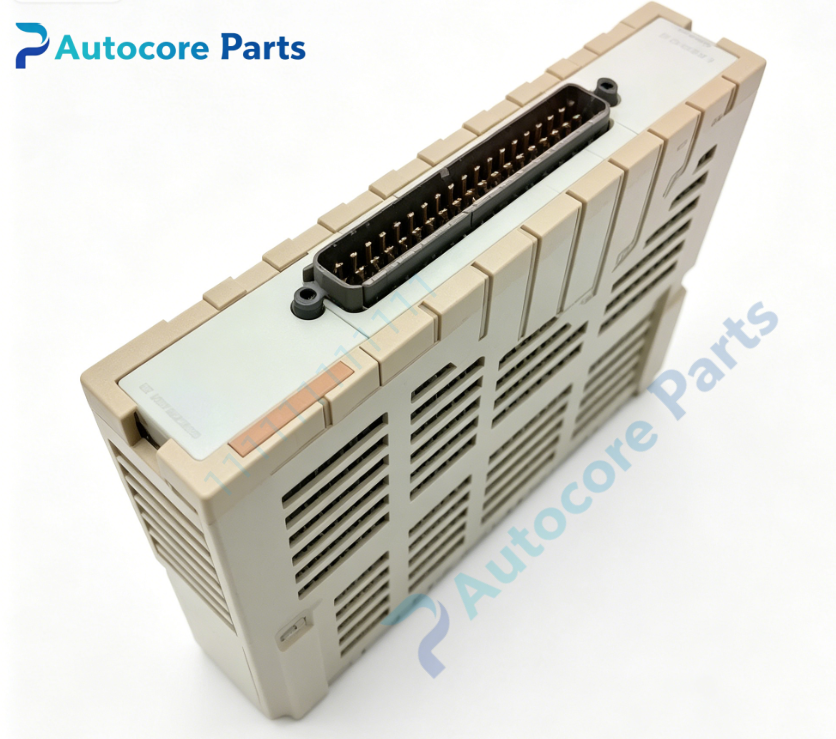

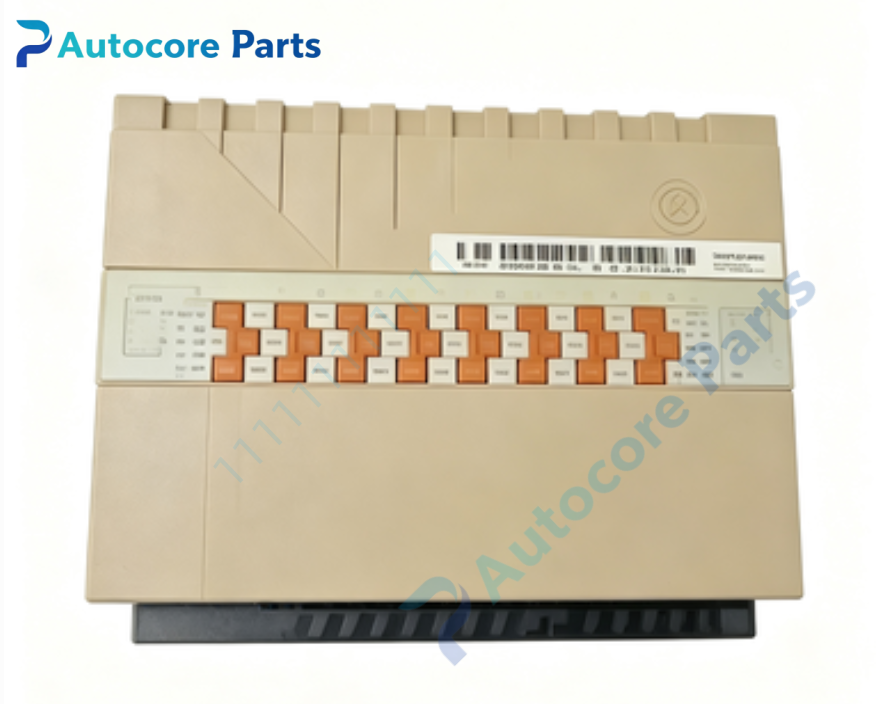

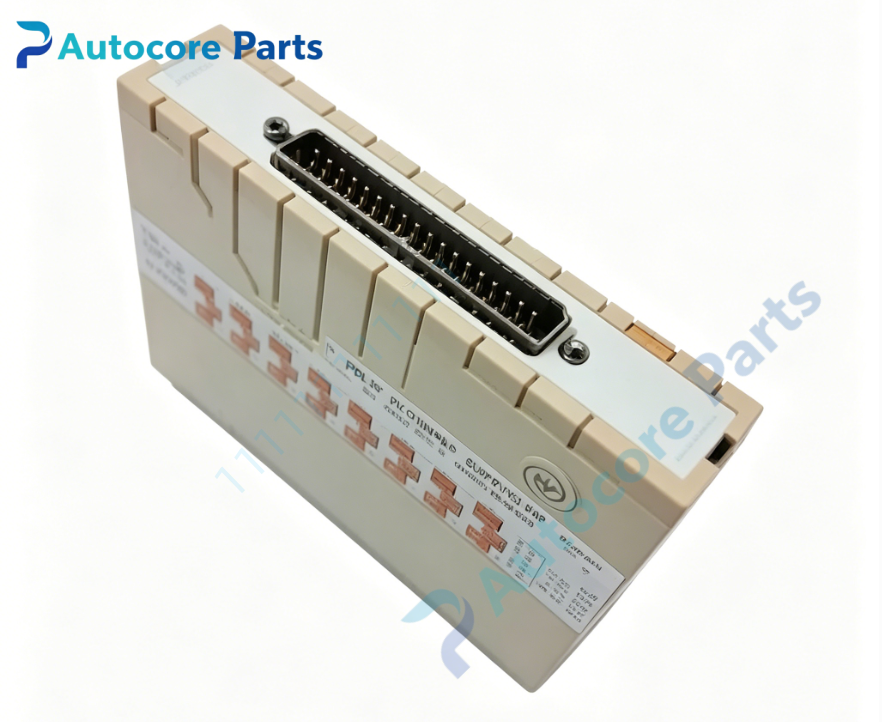

Emerson 1C31125G03 Ovation Digital Output Personality Module

Technical Specifications

Model：1C31125G03

Brand：Emerson

Product Type：Relay‑Driven Digital Output Personality Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31122G01 digital output electronics module

Channel quantity：16 relay‑driven digital output channels

Output voltage range：0‑60VDC external relay load

Per channel max continuous current：500mA

Propagation delay：Max 2.5ms

Isolation：1000VAC field‑to‑logic side isolation

Installation：Plug‑in install with 1C31122G01 on Ovation I/O base

Common Revision：G03 hardware revised version

Status Indicator：No independent LED indicator shares status LED of host electronic module

Built‑in Function：External relay‑driven channel configuration fuse overcurrent protection surge interference suppression cooperate with host module drive external relay banks for field device control

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.13kg

Product Brief:

1C31125G03 is Emerson Ovation digital output personality module G03 hardware revision works paired with 1C31122G01 electronic module

It is plugged onto I/O base together with host module defines 16 channels for external relay bank driving applications

This personality module is designed for heavy‑load relay interface scenarios transfers DCS logic signals to external relay assemblies

It supports 0‑60VDC field loop each channel supports maximum 500mA output current to drive intermediate relay coils

Built‑in fuse protection provides per‑channel overcurrent safeguard protects host electronics module from field short‑circuit damage

It completes discrete control for high‑power field actuators through external relay expansion

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap short‑circuit diagnosis and surge suppression features from matched 1C31122G01 electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
