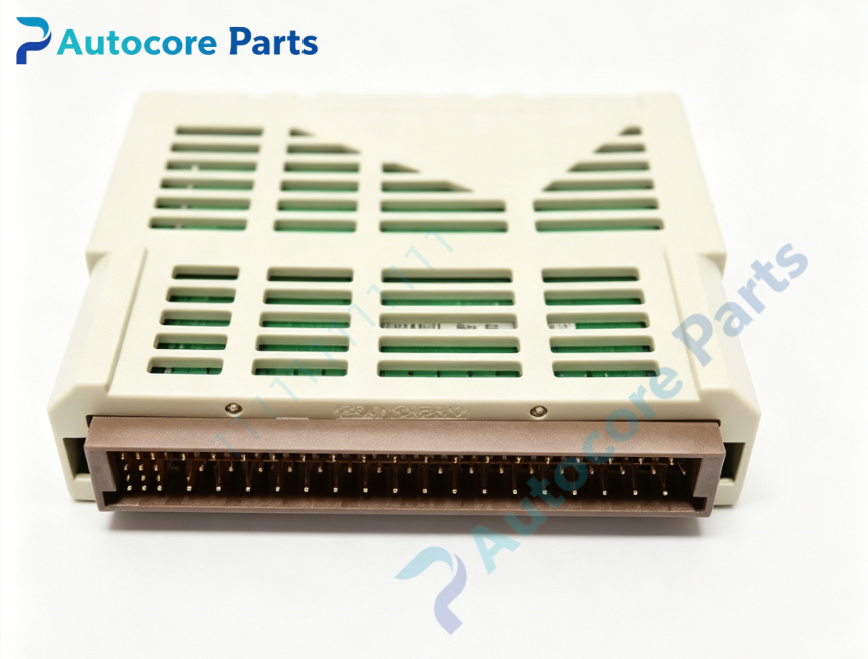

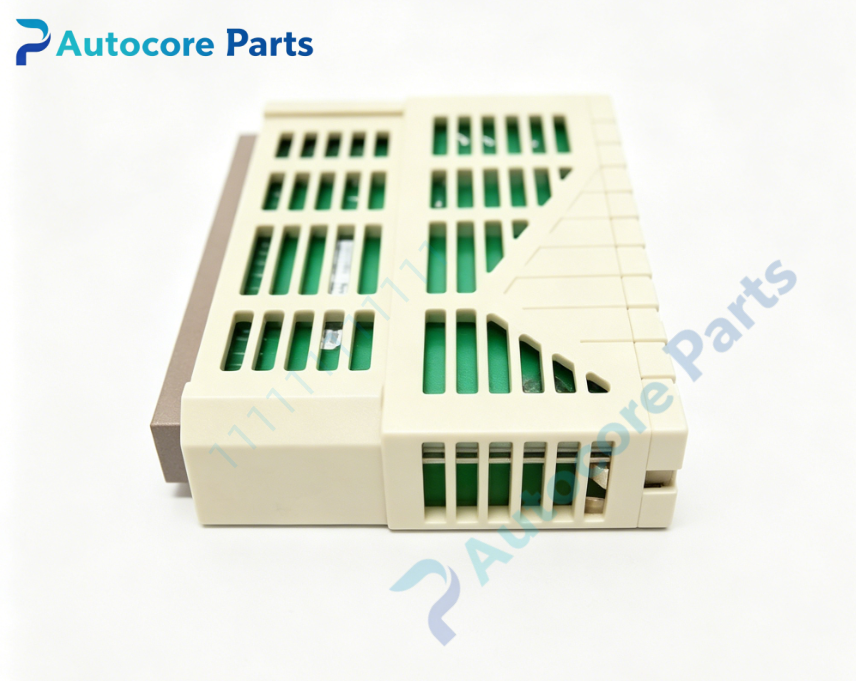

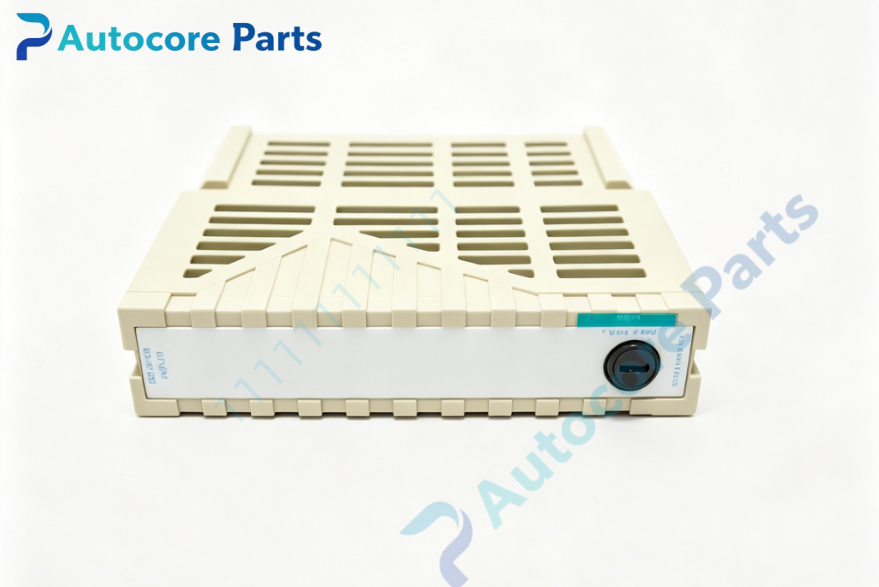

Emerson 1C31127G01 Ovation 16‑Channel Digital Input Electronics Module

Technical Specifications

Model：1C31127G01

Brand：Emerson

Product Type：16‑Channel Digital Input Electronics Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity：16 discrete input channels cooperates with corresponding personality module

Signal type：Field discrete contact or voltage input defined by matched personality module

Input filtering：Hardware input debounce filter configurable

Backplane power：24VDC from Ovation I/O base

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G01 hardware revised version

Status Indicator：On‑board LED for power status channel active channel fault indication

Built‑in Function：Field discrete signal acquisition input signal filtering channel fault diagnosis backplane communication support module hot‑swap work with personality module collect contact status and field switch signals

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.14kg

Product Brief:

1C31127G01 is Emerson Ovation digital input electronics module G01 hardware revision for discrete field signal acquisition

It is plugged onto matched I/O base unit must work together with corresponding digital input personality module to complete channel hardware definition

This electronic module transfers field switch and contact status into digital data for Ovation controller processing

Configurable hardware debounce filter eliminates signal jitter caused by field contact bounce or electromagnetic interference

On‑board LED indicators display power channel working and fault status convenient for on‑site troubleshooting

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched personality module and I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
