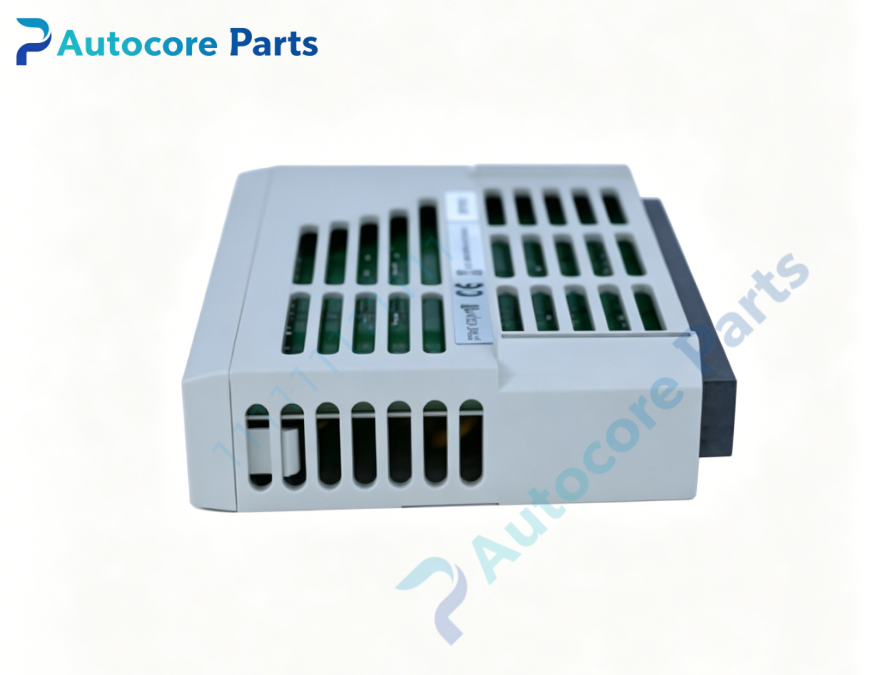

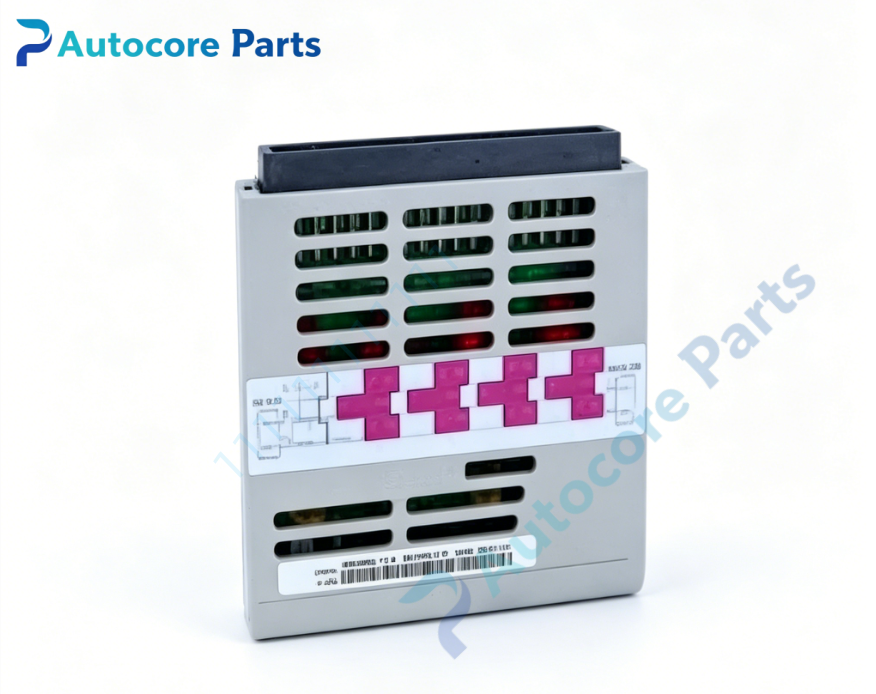

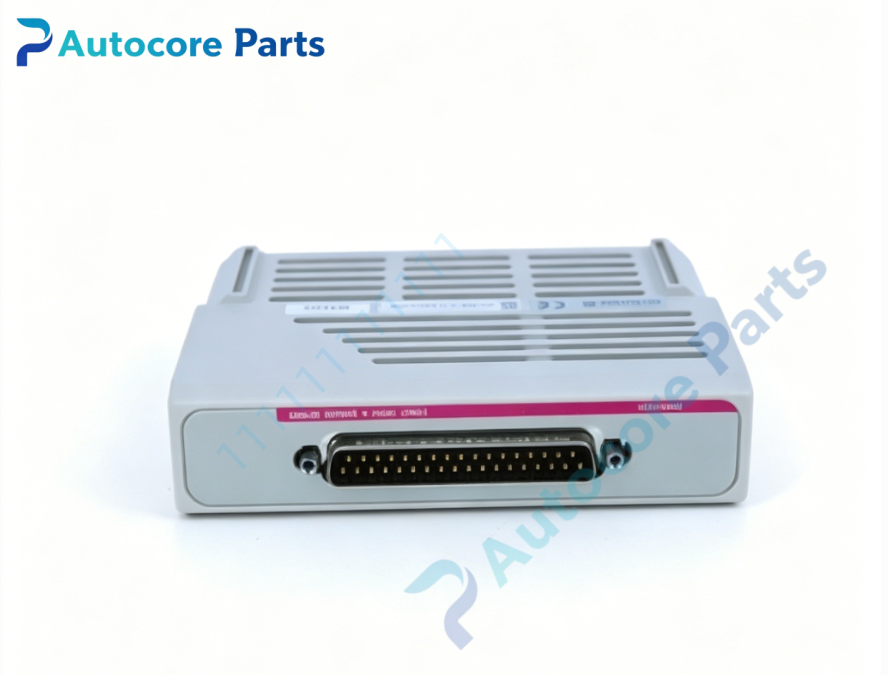

Emerson 1C31132G02 Ovation Analog Output Electronics Module

Technical Specifications

Model：1C31132G02

Brand：Emerson

Product Type：High‑Accuracy Analog Output Electronics Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity：8 analog output channels defined by matched personality module

Resolution：16‑bit digital‑to‑analog conversion

Update rate：10 updates per second per channel

Typical accuracy：±0.05% full scale

Backplane power：24VDC from Ovation I/O base

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G02 hardware revised version

Status Indicator：On‑board LED for power status channel status channel fault indication

Built‑in Function：High‑precision digital‑to‑analog conversion channel fault diagnosis open‑load detection short‑circuit protection surge interference suppression support module hot‑swap cooperate with personality module drive field control valves and actuators

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.14kg

Product Brief:

1C31132G02 is Emerson Ovation high‑accuracy analog output electronics module G02 hardware revision for precise process loop control

It is plugged onto matched I/O base unit must work together with corresponding AO personality module to complete hardware signal range definition

This electronic module adopts 16‑bit DAC architecture converts controller digital control values into high‑precision analog driving signals for field valves actuators and process instruments

Higher conversion accuracy satisfies strict thermal‑process flow pressure and temperature closed‑loop control requirements

Built‑in open‑load and short‑circuit detection monitors field channel faults for quick on‑site fault locating

On‑board LED indicators display power channel working and fault status convenient for on‑site troubleshooting

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched personality module and I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
