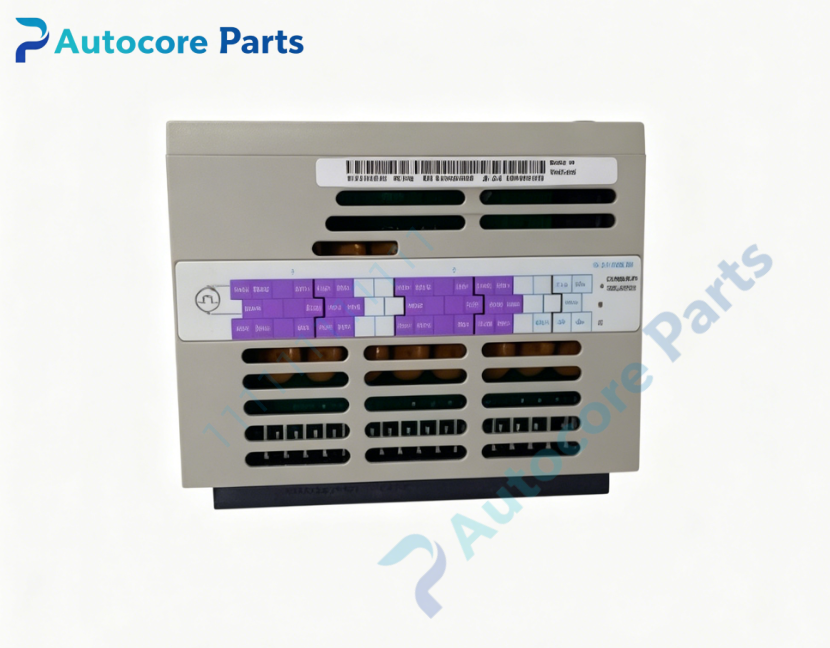

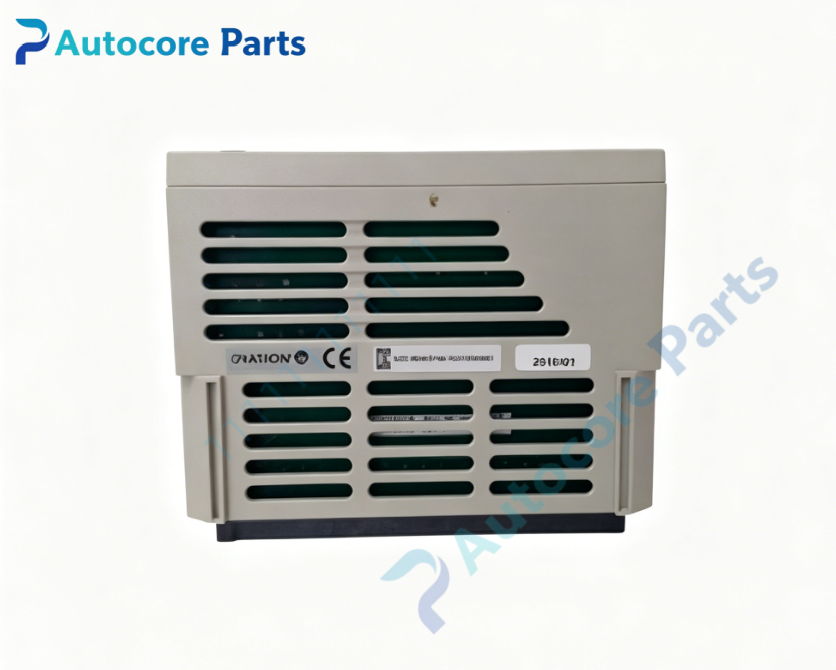

Emerson 1C31150G03 Ovation Pulse Accumulator Personality Module

Technical Specifications

Model:1C31150G03

Brand:Emerson

Product Type:External‑Power Pulse Accumulator Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:1C31147G01 1C31147G02 pulse accumulator electronics module

Channel quantity:2 external‑power pulse input channels

Input signal type:Open‑collector pulse signal requires external field power supply

Input voltage range:5‑48VDC external powered pulse

Isolation:1000VAC field‑to‑logic side galvanic isolation

Installation:Plug‑in install with pulse accumulator electronic module on Ovation I/O base

Common Revision:G03 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field external‑power pulse input channel configuration surge interference suppression overvoltage protection cooperate with host module collect open‑collector pulse signals from field measuring instruments

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31150G03 is Emerson Ovation pulse accumulator personality module G03 hardware revision works paired with 1C31147 series electronic modules

It is plugged onto I/O base together with host module defines 2‑channel interface for open‑collector external‑power pulse‑output sensors

This personality module relies on external field power supply for pulse signal circuit suitable for sensors with open‑collector transistor output

It is widely used for thermal‑process turbine‑speed measurement and pulse‑type flowmeter totalization under complex field wiring conditions

1000VAC galvanic isolation separates field side from DCS logic backplane suppresses ground‑loop interference and transient surge damage

It transfers field pulse signals to host electronic module for hardware counting and backplane data transmission

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap channel diagnosis and surge suppression features from matched pulse accumulator electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
