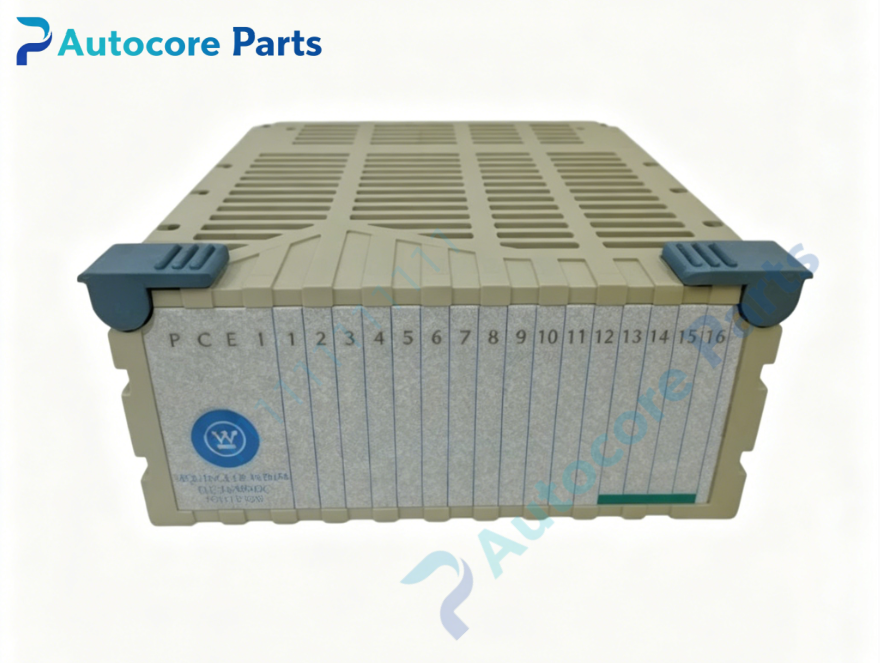

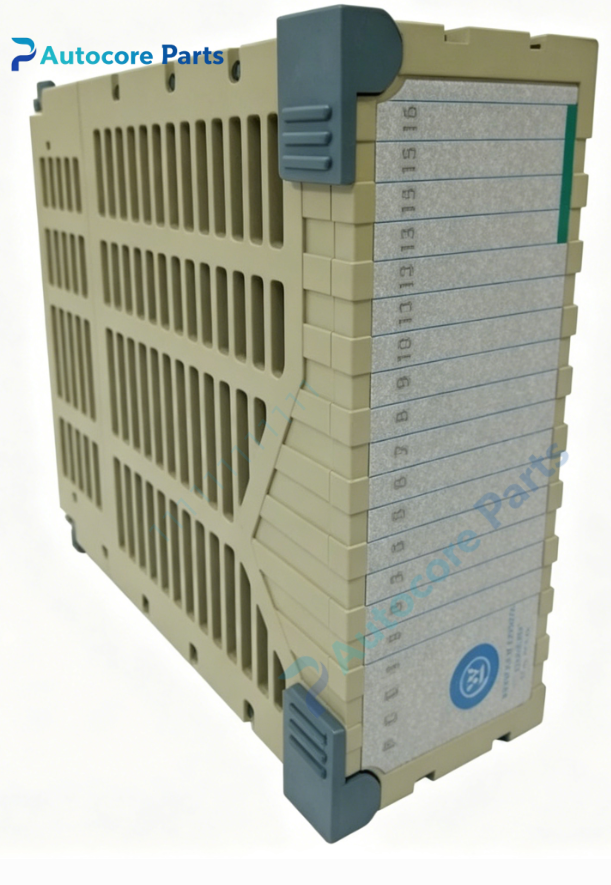

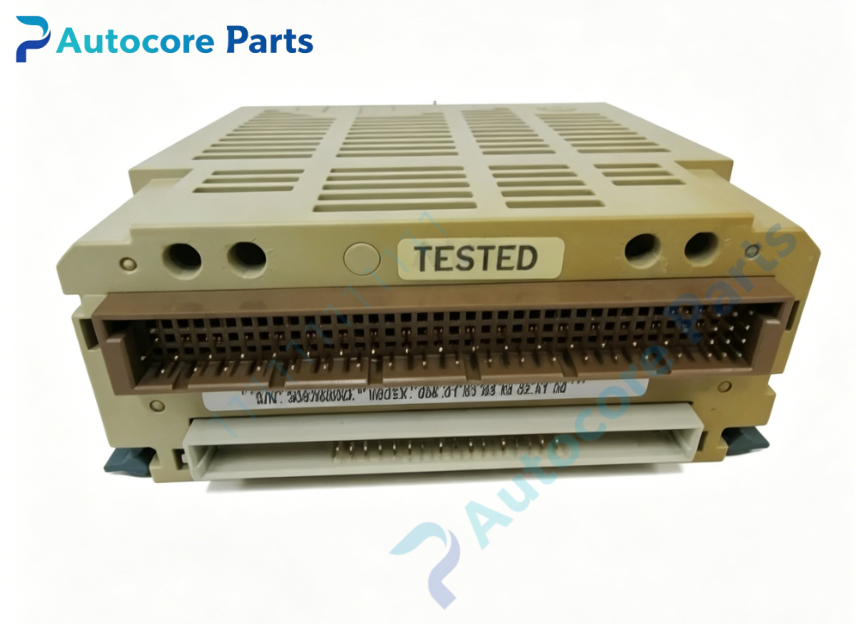

Emerson 1C31157G01 Ovation SOE Digital Input Personality Module

Technical Specifications

Model:1C31157G01

Brand:Emerson

Product Type:Single‑Ended SOE Digital Input Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:1C31127G01 digital input electronics module

Channel quantity:16 single‑ended SOE discrete input channels

Input signal type:Dry contact or wet voltage input

Input voltage range:0‑60VDC

Time‑stamp resolution:1 millisecond event capture

Isolation:1000VAC field‑to‑logic side galvanic isolation

Input filter:Hardware debounce configurable on host electronic module

Installation:Plug‑in install with 1C31127G01 on Ovation I/O base

Common Revision:G01 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field single‑ended SOE input channel configuration high‑speed event timestamp capture surge interference suppression overvoltage protection cooperate with host module record breaker trip relay action and protection alarm events

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31157G01 is Emerson Ovation single‑ended SOE digital input personality module G01 hardware revision works paired with 1C31127G01 electronic module

It is plugged onto I/O base together with host module defines 16 single‑ended channels for sequence‑of‑events high‑precision time‑stamped signal acquisition

This personality module is designed for power plant fault post‑mortem analysis captures contact‑action events with 1ms time‑stamp resolution

It supports dry contact and 0‑60VDC wet input widely used for breaker auxiliary contact trip signal and protection device status recording

1000VAC galvanic isolation separates field side from DCS logic backplane suppresses ground‑loop interference and transient surge damage

It transfers field discrete status and event timestamp data to host electronic module for signal filtering and backplane data transmission

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap channel diagnosis and surge suppression features from matched 1C31127G01 electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
