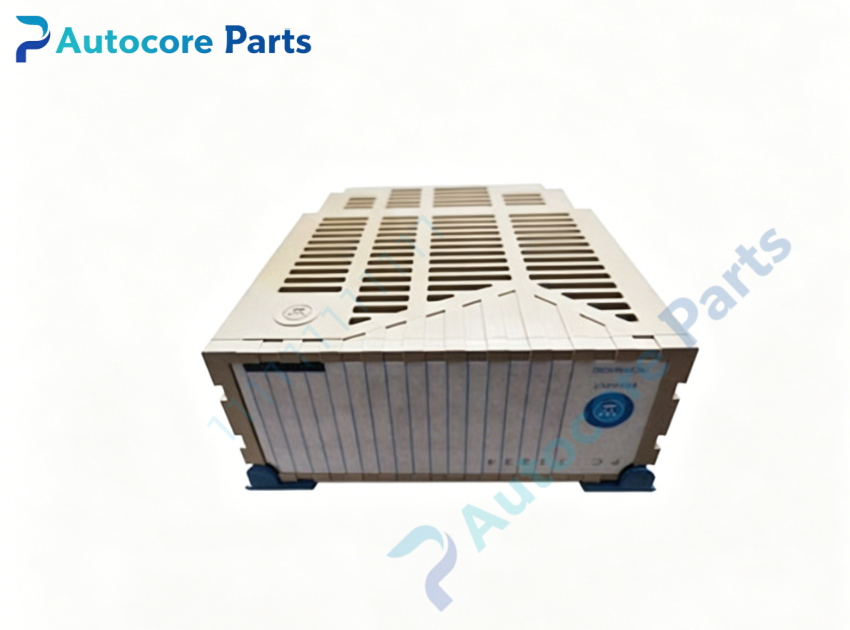

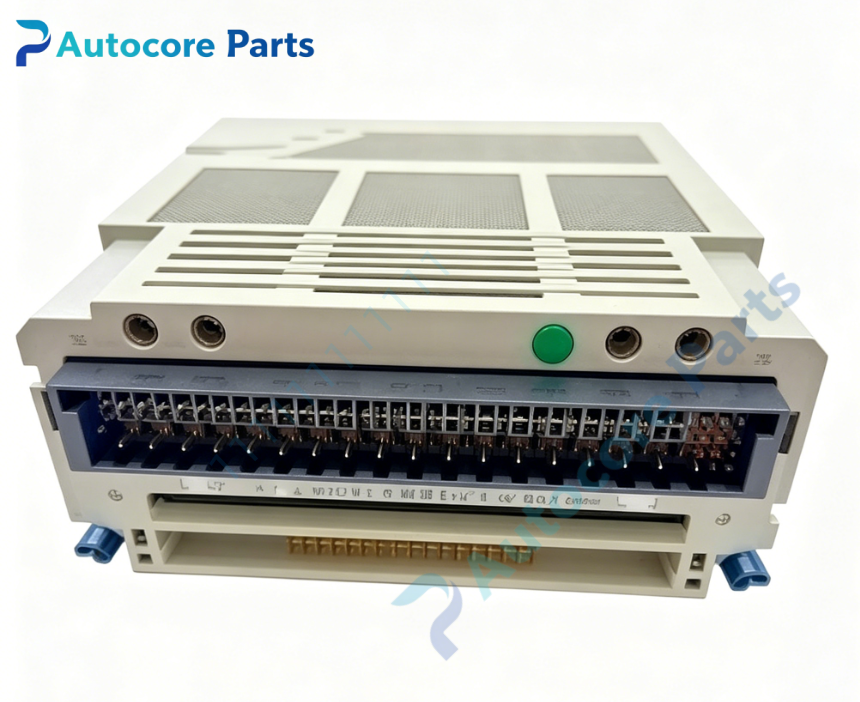

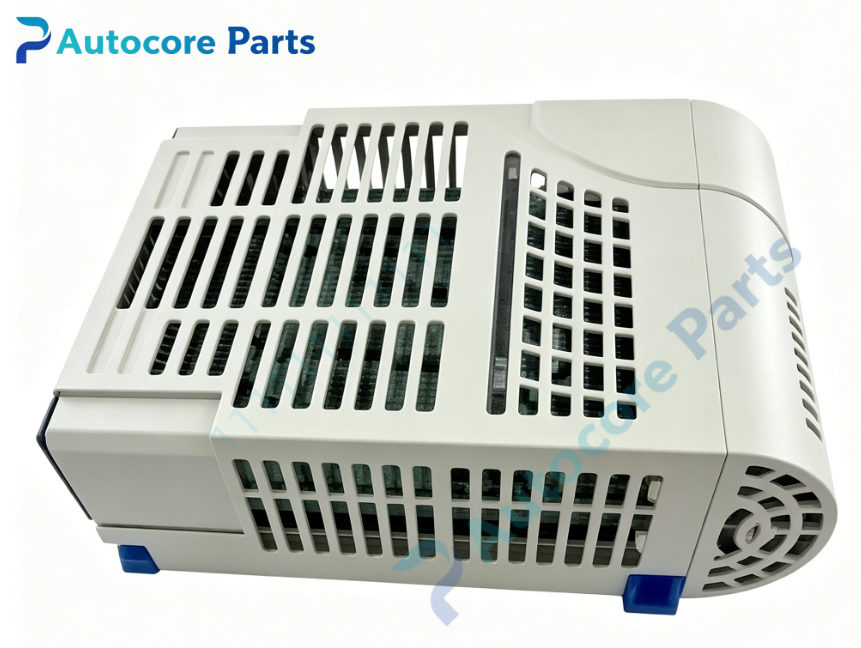

Emerson 1C31161G02 Ovation High‑Accuracy RTD Resistance Temperature Detector Electronics Module

Technical Specifications

Model:1C31161G02

Brand:Emerson

Product Type:High‑Accuracy 4‑Channel RTD Resistance Temperature Detector Electronics Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity:4 RTD temperature input channels defined by matched personality module

Resolution:20‑bit analog‑to‑digital conversion

Update rate:10 updates per second per channel

Typical measurement accuracy:±0.05% full scale

Supported sensor types:Pt100 Pt1000 Ni120 Cu100 defined by personality module

Backplane power:24VDC from Ovation I/O base

Installation:Plug‑in installation for matched Ovation I/O base

Common Revision:G02 hardware revised version

Status Indicator:On‑board LED for power status channel status module fault indication

Built‑in Function:High‑precision analog‑to‑digital conversion lead‑wire resistance compensation open‑circuit short‑circuit fault diagnosis surge interference suppression support module hot‑swap cooperate with personality module collect high‑precision temperature data of boiler and rotating‑equipment

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.14kg

Product Brief:

1C31161G02 is Emerson Ovation high‑accuracy RTD electronics module G02 hardware revision for high‑precision thermal‑resistance temperature signal acquisition

It is plugged onto matched I/O base unit must work together with corresponding RTD personality module to complete sensor type and wiring‑mode hardware definition

This electronic module adopts 20‑bit high‑resolution ADC architecture converts field RTD resistance variation into stable digital temperature data for Ovation controller processing

High‑precision measuring performance satisfies strict thermal‑process boiler metal temperature turbine‑shaft temperature and high‑accuracy temperature monitoring requirements

Built‑in lead‑wire resistance compensation eliminates measuring error caused by long‑distance field cable resistance

Built‑in open‑circuit and short‑circuit detection monitors field channel faults for quick on‑site fault locating

On‑board LED indicators display power channel working and module fault status convenient for on‑site troubleshooting

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched RTD personality module and I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
