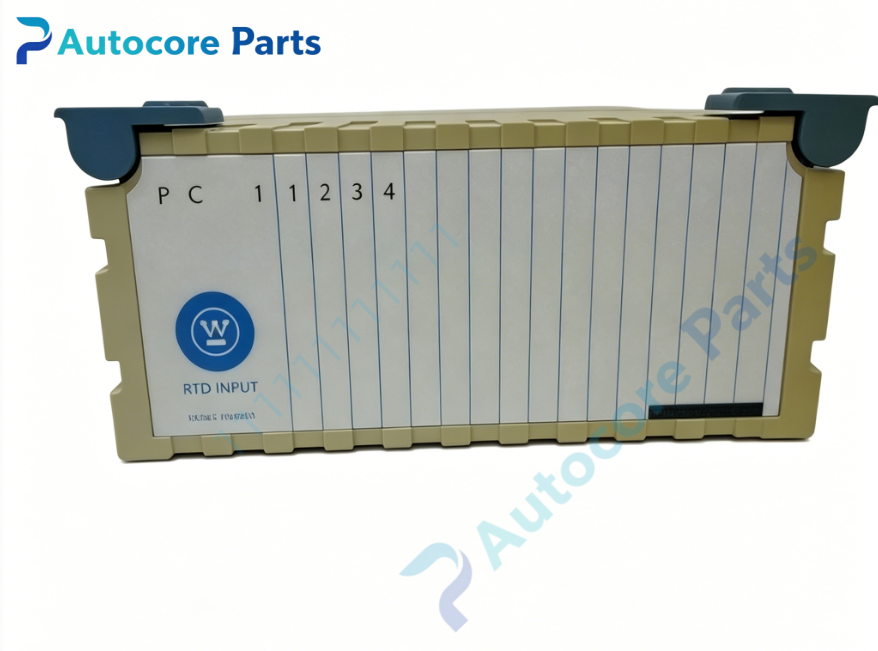

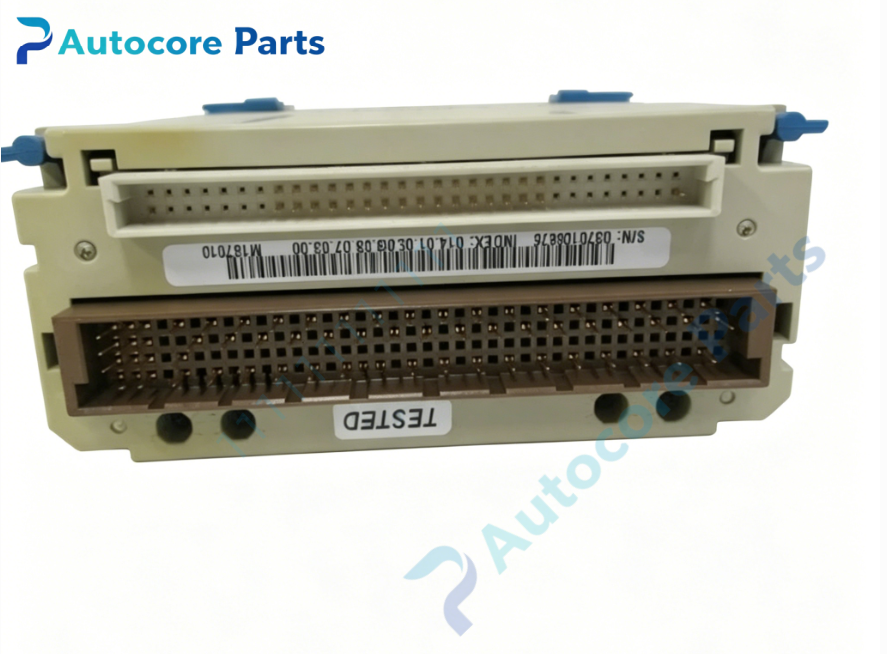

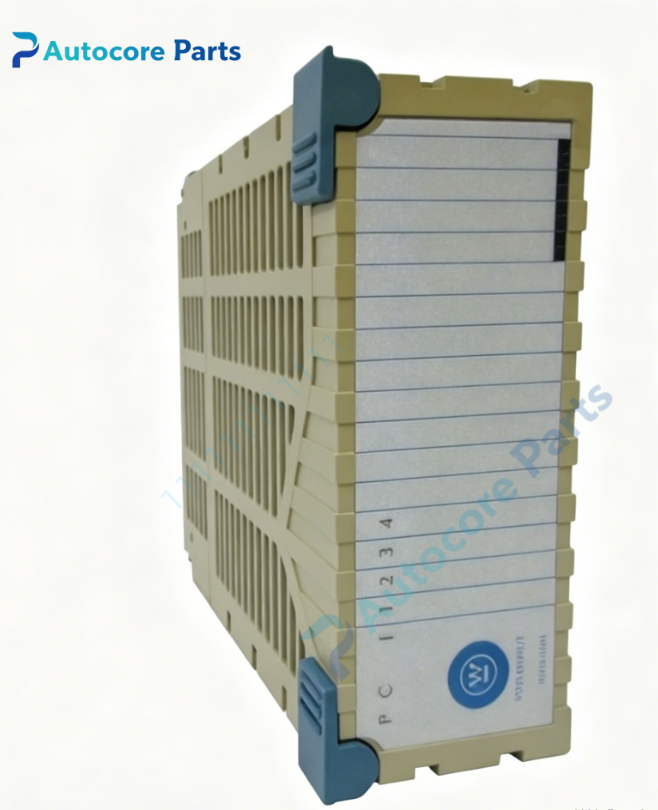

Emerson 1C31161G01 Ovation RTD Resistance Temperature Detector Electronics Module

Technical Specifications

Model:1C31161G01

Brand:Emerson

Product Type:4‑Channel RTD Resistance Temperature Detector Electronics Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity:4 RTD temperature input channels defined by matched personality module

Resolution:16‑bit analog‑to‑digital conversion

Update rate:10 updates per second per channel

Supported sensor types:Pt100 Pt1000 Ni120 Cu100 defined by personality module

Backplane power:24VDC from Ovation I/O base

Installation:Plug‑in installation for matched Ovation I/O base

Common Revision:G01 hardware revised version

Status Indicator:On‑board LED for power status channel status module fault indication

Built‑in Function:RTD signal conversion lead‑wire resistance compensation channel fault diagnosis open‑circuit short‑circuit detection surge interference suppression support module hot‑swap cooperate with personality module collect boiler and equipment temperature data

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.14kg

Product Brief:

1C31161G01 is Emerson Ovation RTD resistance temperature detector electronics module G01 hardware revision dedicated for thermal‑resistance temperature signal acquisition

It is plugged onto matched I/O base unit must work together with corresponding RTD personality module to complete sensor type and wiring mode hardware definition

This electronic module converts field RTD sensor resistance variation into digital temperature data for Ovation controller processing

Built‑in lead‑wire resistance compensation function eliminates measurement error caused by long‑distance field cable resistance

16‑bit ADC provides stable temperature measurement performance widely used for boiler drum metal temperature flue gas temperature and auxiliary equipment temperature monitoring

Built‑in open‑circuit and short‑circuit detection monitors field channel faults for quick on‑site fault locating

On‑board LED indicators display power channel working and module fault status convenient for on‑site troubleshooting

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched RTD personality module and I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
